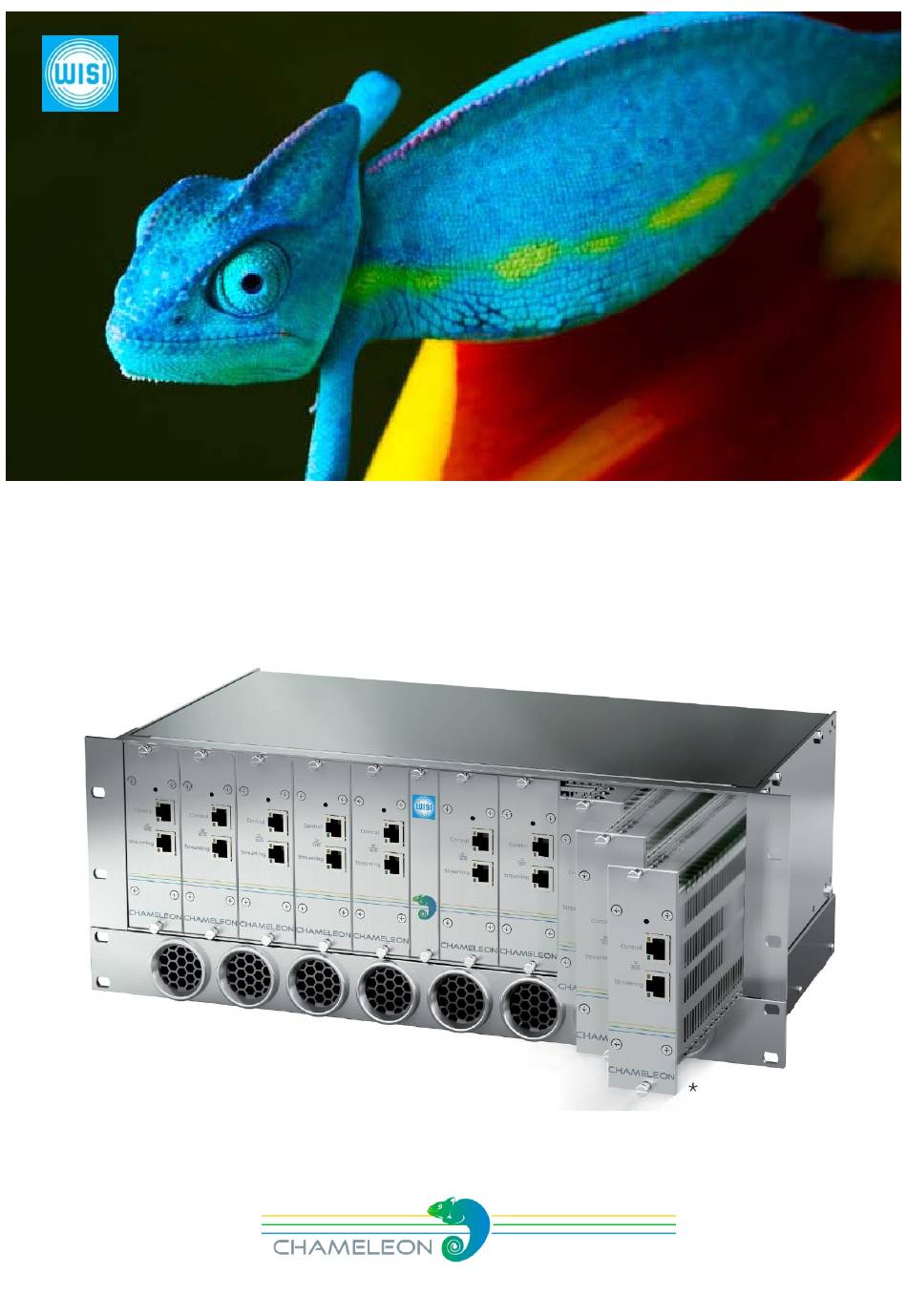

CHAMELEON GN40
Installation guide
CHAMELEON
Installation guide GN40
* The GN HW modules are not included in the scope of delivery.
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHAMELEON GN40 and is the answer not in the manual?

Questions and answers

Summary of Contents for Wisi CHAMELEON GN40

  • Page 1 CHAMELEON GN40 Installation guide CHAMELEON Installation guide GN40 * The GN HW modules are not included in the scope of delivery. Page 1...
  • Page 2 CHAMELEON GN40 Installation guide CHAMELEON Scope of delivery: -1 pcs. top cover (a) -2 pcs. side cover (b) -2 pcs. fixture brackets (c) -2 pcs. thread rails (d) -2 pcs. guide tracks for adapting the thread rails (e) -1 pcs. guide track for holding the chameleons (f) -4 pcs.
  • Page 3 CHAMELEON GN40 Installation guide Assembling the Chameleon modules in the GN40: Turn the GN40 on the backside and insert the chameleon modules. Turn the GN40 on the bottom side and fix the chameleon modules at their back with the delivered nuts (2).
  • Page 4 CHAMELEON GN40 Installation guide CHAMELEON Fan / Power unit: Install the fan /power unit in the 19’’ rack and install the GN40 unit on top of it with the delivered screws. There is no guide rail for the rack needed, the GN40 can be installed directly on the cabinet fixture brackets.
  • Page 5 CHAMELEON GN40 Installation guide Connecting the cables: Insert the Chameleon modules in the GN 40 and fix the screws Connect the ground/earth to the GN 40 and the fan unit with the 4 edge shim and flat headed screws. Connect the DC power supply to the modules and fan unit on the backside with the delivered cable harness.
  • Page 6 CHAMELEON GN40 Installation guide CHAMELEON Important information! • Operation of the GN 40 is only allowed while the fan unit is running. • The Chameleon module has a temperature sensor. If it is too hot, the Chameleon stops running without a warning signal.
  • Page 7 CHAMELEON GN40 Installation guide Safety and installation notes – please observe Caution The mains voltage must match the rated input voltage of the unit (230 VAC). Connecting cable - Lay the cable so that no-one can trip over it. - Lay the cable with a downward loop so that any water condensing on it can drip on the floor instead of running into the unit.
  • Page 8 At the wisiconnect.tv portal, there is further information and support tools. Here you will find a Forum, a FAQ section and documentation such as Release Notes and Known Issues. WISI Communications Inland: +49 7233-66-0 Export: +49 7233-66-280 WISI Norden: +46 141 229100 E-Mail: info@wisi.de Internet: www.wisi.de Page 8...
