Honeywell HD2FC1X Instruction Manual

CAMERA SPECIFICATIONS
Model No. HD2FC1X HD2FM1BX
Scanning 2:1Interlance
Element H : 15.625KHz / V:50Hz
1/4" High 1/3" High
Image Picture
Sensitivity Sensitivity
Element
CCD CCD
Effective Picture
500 (H) x 582 (V)
Element
>330 Horizontal >380 Horizontal >330 Horizontal
Resolution
TV Lines TV Lines
Minimum 1.2 Lux @F1.2/ 0.3 Lux @F1.2/ 1.2 Lux @F1.2/
Illumination 3.2 Lux @F2.0 0.8 Lux @F2.0 3.2 Lux @F2.0
>46 dB >48 dB
S/N Ratio
(AGC OFF) (AGC OFF)
Backlight Center Lower
Compensation weighted weighted
Sync System Internal
AGC Auto
Gamma
0.45
Compensation
Video Output
1.0 Vpp, 75 ohm Unbalance
Signal
Automatic
White Balance -----
White Balance White Balance
ATW Range 2700K –9100K ------ 2700K –9100K
Power Supply 12 VDC
Power
1.5 W (max) 1.3 W (max) 1.5 W (max)
Consumption
Operation 23°F ~ 113°F , (-5°C to ~ +45°C)
Temperature Less than 80% R.H.
Camera
Diameter: 3.15" (80 mm) Height: 2.28" (58 mm)
Dimensions
Weights 2.83 ounces (80g) net
LENS
Fixed Length 3 mm : F2.0 3.8 mm : F2.0
Supplied
N/A 6.0 mm : F2.0
Lens Option
Rev. A 5
HD2FC1 HD2FM1
2:1Interlance
H : 15.734KHz / V:59.9Hz
1/4" High 1/3" High
Sensitivity Sensitivity
CCD CCD
510 (H) x 492 (V)
>380 Horizontal
TV Lines TV Lines
0.3 Lux @F1.2/
0.8 Lux @F2.0
>46 dB >48 dB
(AGC OFF) (AGC OFF)
Center Lower
weighted weighted
Automatic
------
------
1.3 W (max)
3 mm : F2.0 3.8 mm : F2.0
8.0 mm : F2.0
HDMU000932 Rev. A
Video Systems
www.honeywellvideo.com
1-800-796-CCTV
© 2004 Honeywell International Inc.
6 HDMU000932
HD 2 FC 1 X / HD 2 FM1BX/ HD 2 FC 1 / HD 2 FM 1

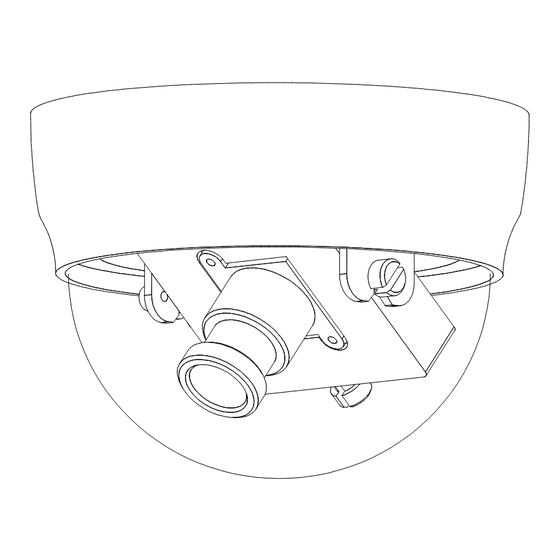

2" Dome with Fixed Lenses
INSTRUCTION MANUAL
HD2FM1BX 1/3" Mini Dome MR Mono (CCIR) 12V
HD2FM1 1/3" Mini Dome MR Mono (EIA) 12V
HD2FC1X 1/4" Mini Dome MR COL (PAL) 12V
HD2FC1 1/4" Mini Dome MR COL (NTSC) 12V
FEATURES
•
Compact and lightweight design
•
DSP controls for Back Light Compensation,
White Balance, and Gain Control (Color versions)
•
Thin optical distortion free bubble
•
Manual pan/tilt/360 rotation mechanism
•
Can be installed on a wall or a ceiling
•
Video cable with BNC included
•
Lens options supplied with EIA/NTSC units
Rev A. 1
