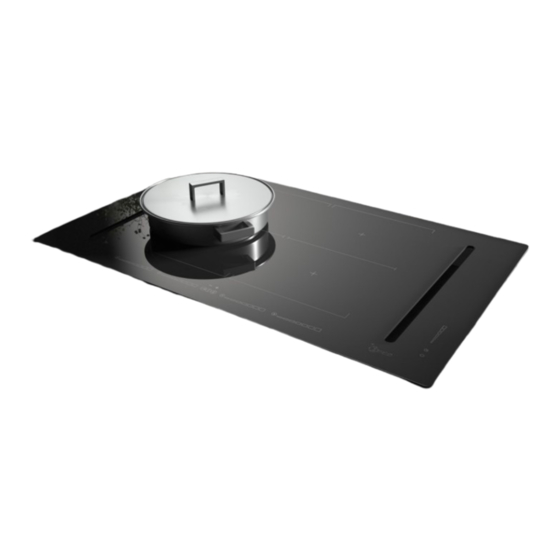

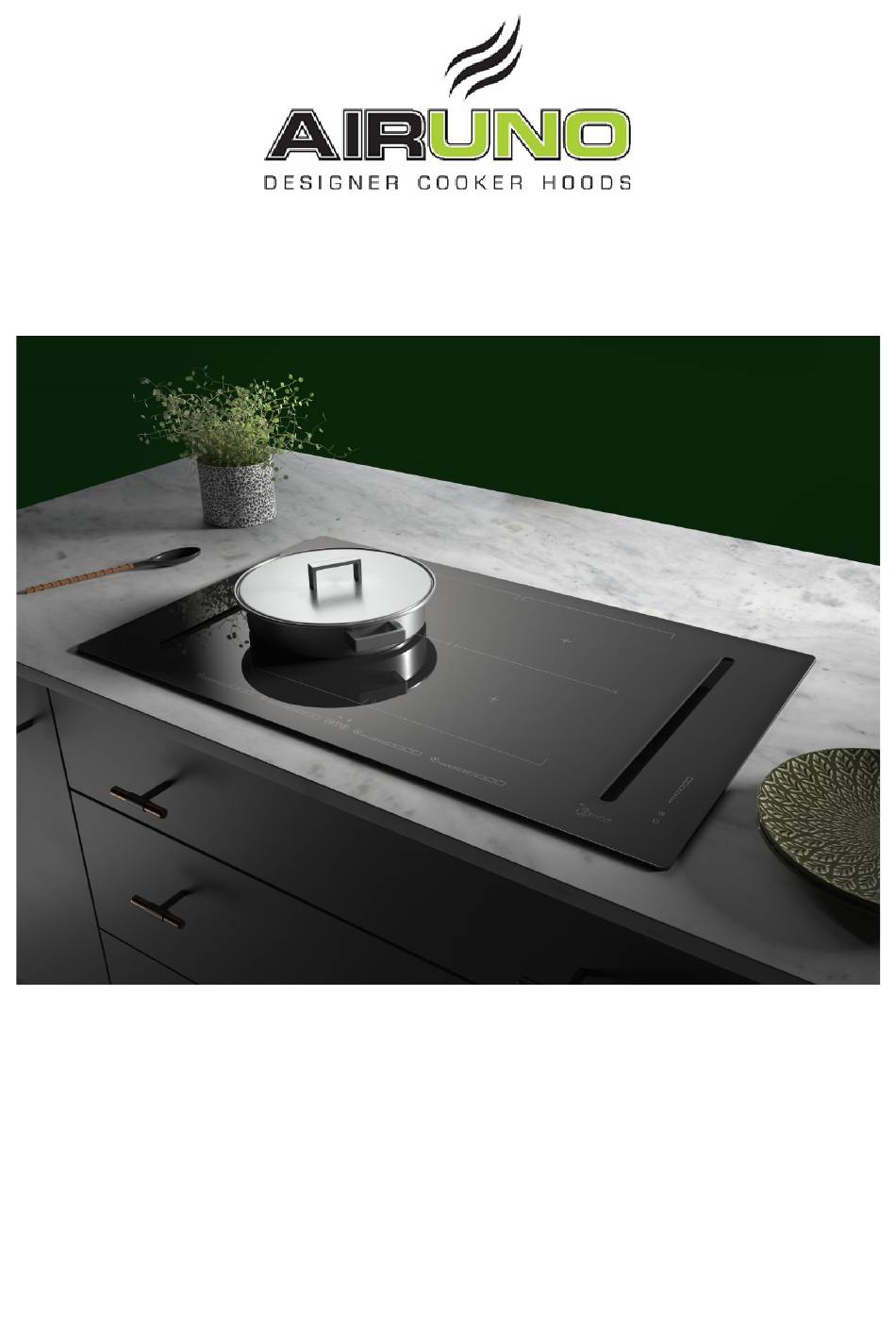

- Page 1 Diamond Flex Hob & Extractor Installation & User Instructions Please read these instructions carefully before installing and operating this appliance...
-
Page 2: Table Of Contents
Contents 1. Introduction 2. Health and Safety 3. Warranty Information 3.1 After Sales Service Information 3.2 How to Report a Fault 3.3 Technical Assistance 4. Hood Operation 5. Cooking Hob Operation 6-14 5.1 Initial Light Conditions 5.2 Basic Control Functions 5.3 Switching On/OFF the Hob 5.4 Selecting Zone and a Power Level 8-10... - Page 3 6.3 Work Surface Cut-out 6.3.1 Surface Mounted Installation 6.3.2 Flush Mounted Installation 6.4 Assembly Instructions 7. Ducting 16-21 7.1 Ducting Assembly 16-17 7.2 Information on Exhaust Air Ducting 7.3 Cross Section of the Exhaust Air Ducting 7.4 Exhaust Material, Ducting & Shape 7.5 Length of the Exhaust Ducting, Curves &...
-
Page 4: Introduction
• 1. Introduction Install the cooker hood in accordance with the regulations in force in your local area, region Dear Customer, and country. • For the correct use of the appliance and to We wish to thank you for choosing this Air Uno prevent accidents, the instructions given in this cooker hood. -
Page 5: Warranty Information
3.1 After Sales Service 3. Warranty Information Information We offer a 4 year warranty on all Airuno cooker A field service engineer is available to attend a hoods, which will start from the date of delivery. breakdown occurring during the cooker hoods The warranty covers parts and labour for the 4 year guarantee period. -
Page 6: Technical Assistance
− Step 2 Intensive speed (V6) is set for a maximum of 5 Please note that upon attendance by an Airuno minutes and then the hood returns to V3. engineer, a charge will be made where: - The − The Timer function is 10 minutes long and it is engineer finds no fault with the cooker hood. -
Page 7: Initial Light Conditions
5.1 Initial Light Conditions 5.2 Basic Control Functions • When power is initially applied to the hob, the touch control allows different layout control conducts a calibration process for the touch configurations. keys, which requires a low level of ambient light in •... -
Page 8: Switching On/Off The Hob
Sounds 5.4 Selecting the Zone and the • Power Level beeps switching [OFF_SOUND]. To switch on a zone requires two operations: • 2 beeps for activating Stop & Go function • Select a zone [STOP&GO_SOUND]. • Select a desired power level •... -
Page 9: Fast Boil (Booster) Function
There are 11 selectable power levels, from 0 to 9 and P (booster) level. If the booster power level is selected the zone display will show a P. The power level set will be shown by displays [ZONE_n_DISPLAY] and the [BARGRAPH_LED]. The [SLIDER] keys will be locked if: −... -
Page 10: Setting Hob Eco Power Limit
Fig 9 5.5 Setting Hob ECO Power Limit Fig 6 The hobs maximum power limit is 7200W. This power limit can be reduced by the user to 2800W, To set the power level of the bridge heater touch 3500W or 6000W. The sequence to set a new how the slider. -
Page 11: For Selecting A New Power Limit
5.5.1 For Selecting a New Power Limit With the [KEYLOCK_KEY], the power limit is increased. The selectable powers are 2800W, 3500W, 6000W or 7200W. When the power is Fig 14 7200W, if the [KEYLOCK_KEY] is touched the power changes to 2800W. 5.7 Key Lock Touching the [KEYLOCK_KEY] for 1 second, the key lock function is activated and deactivated. -
Page 12: Stop & Go Function
Power Level Max. time on (hours) Fig 17 To deactivate the stop function: • If the [STOP_GO_KEY] is touched for more than 120ms a beep sounds and the zones power level is restored, or • If the hob is stopped for more than 10 minutes the hob is switched off automatically. -
Page 13: Displaying Software Versions
More than one Zone Timed When more than one zone is timed the timer displays will show the timer that is going to elapse first. The active zone LED will be blinking. Fig 19 Fig 21 If the [+TIMER] or [-TIMER} is held down, the speed is increased automatically or the increases are done increments of 5. -
Page 14: Programming
To change between the UI versions and the HPC versions press the [KEYLOCK_KEY]. Fig 26 Fig 24 To change the setting touch any zone selection key. The function is disabled 10 seconds after or until any combination keys (except [KEYLOCK_KEY] is touched. When the message disappears a beep sounds and the user can continue with normal operation. -
Page 15: Installation
• 6. Installation Suffocate the fire, for example by using a lid. • Do not place any flammable liquids in the vicinity of the hob. 6.1 Safety Instructions • If there are any cracks, fissures or fractures in the glass ceramic, switch the device off •... -
Page 16: Work Surface Cut-Out
6.4 Assembly Instructions The extractor comes with a flat motor which attaches to the bottom of the hob. Place the hob in the rectangular cut out in the worktop. We recommend using silicone under the edge of the hob to seal the product to the worktop. 6.3 Work Surface Cut-out 7. - Page 17 Minimum Cupboard Depth 600mm 600mm 510mm Min 40mm 50mm 244mm 02TP823/D Max 490mm 02TP820/D Max 490mm Max 490mm 02TP823/D 100mm plinth 02TP824/D 391mm The individual ducting components are inserted into one another as shown in Fig 29. 02TP823/D 02TP820/D 02TP823/D 02TP824/D 02TP822/D 02TP820/D...
-
Page 18: Information On Exhaust Air Ducting
It is only possible to achieve a high airflow volume 7.2 Information on Exhaust Air and low noise level by using extractor ducting that Ducting provides low resistance. Always use where possible rigid ducting equivalent to 150mm. The planning and design of extractor ducting has a significant influence on the airflow rate and the noise level of the cooker hood. -
Page 19: Exhaust Material, Ducting & Shape
7.4 Exhaust Material, Ducting & Shape Smooth-walled plastic rigid ducts are the most favourable form of ducting from a technical airflow perspective and are particularly suitable for straight duct routes/runs. These should be used if the structural requirements are met. Flexible aluminium ducting (alu-flux) also achieves reasonably good flow values when elongated. -
Page 20: Length Of The Exhaust Ducting, Curves & Bends
7.5 Length of the Exhaust Ducting, Unfavourable flow: Curves & Bends Air swirls are created behind the As the length of the exhaust ducting increases, the sharp interior corners. counter pressure (duct resistance) increases and the airflow rate decreases. Bends and curves are problematic as they present deflection surfaces that dam the air steam and generate turbulence. - Page 21 The following comparison between different duct types and flat channels indicates the extent to which the material used can influence airflow loss. COMPARISON BETWEEN CHANNEL SYSTEMS WITH A SQUARE CROSS SECTION COMPARISON BETWEEN CHANNEL SYSTEMS WITH A ROUND CROSS SECTION...
-
Page 22: Recirculating Option
3mm. Line-protecting switches, fuses 7.6. Recirculating Option contactors are suitable cut-out devices. When connecting and repairing the appliance The Extractor can also be used in recirculation disconnect it from the electricity supply with mode, it must be connected to a filter kit (optional) one of these devices. -
Page 23: Troubleshooting
Three Phase Connection 9. Troubleshooting 9.1 Displaying Special Statuses The corresponding zone display alternates between two characters depending on the status. Special status Start Action Zone Zone Zone (Visualization conditions Conditions Status Display Display Priority Order) Front back Power increment not Asked hob Power allowed (only for ECO... -
Page 24: Errors/Alarms
In normal cooking, the disturbance takes a few seconds. The ECOOK includes a filter so the “U” shows easily, this means, the protection actuates but “U” is not shown and with just one short disturbance. The decision to show “U” is taken after a defined number of disturbance pulses. 9.2 Errors/Alarms When an error is detected, the whole appliance or the zone/s are switched off, a beep sounds (only if one or more zones are active) and all displays show a ‘F’... -
Page 25: Maintenance & Cleaning
To wash the interior part, just lift the hob by placing 10. Maintenance and Cleaning your hands in the suction holes and pull upwards. • Before any maintenance or cleaning, disconnect the appliance from the mains. • After each use, when cool, clean the hob eliminating even the small residues which, when the hob is switched on again, can become impossible to remove. -
Page 26: Technical Data
11. Technical Data Diamond Flexi Control Soft Touch Buttons Colour/finish Black Glass Airflow (m 395-695 Pressure (Pa) Noise (db) 48-67 Motor Power (W) Hob Power (kW) Voltage (V) 220-240 Outlet Width (mm) Energy Class Pan Detection Vs Coil Diameter COIL Ø MINIMUM PAN Ø... -
Page 27: Energy Label
12. Energy Label Suppliers Name AIRONE Model identifier DIAMOND 60 Annual Energy Consumption AEC (kWh/a) 54.9 Energy Efficiency Class Fluid Dynamic Efficiency FDE (%) 29.2 Fluid Dynamic Efficiency class Light Efficiency LE (lux/W) Lighting Efficiency Class Grease Filter Efficiency GFE (%) -
Page 28: Dimensions
13. Dimensions 830mm TIMER BOOSTER BACK 830mm 800mm 15mm 145mm 215mm 385mm 20mm SIDE 510mm 485mm 380mm... - Page 32 CD (UK) Ltd T/A Air Uno Unit L, Wakefield House Thistle Way Gildersome Spur Morley West Yorkshire LS27 7JZ CD (UK) Ltd T/A Air Uno is a company registered in England and Wales Registration No. 2905619 of this vested part not be reproduced of this are accurate at the date of...
