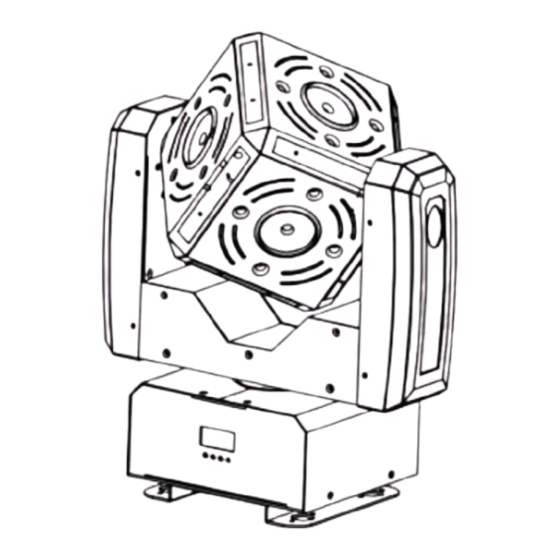

LEDDOO LED Beam Cube 612 RGBW Manual

Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual
LED Beam Cube 612
RGBW

Advertisement

loading
Need help?

Need help?

Do you have a question about the LED Beam Cube 612 RGBW and is the answer not in the manual?

Questions and answers

Related Manuals for LEDDOO LED Beam Cube 612 RGBW

Summary of Contents for LEDDOO LED Beam Cube 612 RGBW

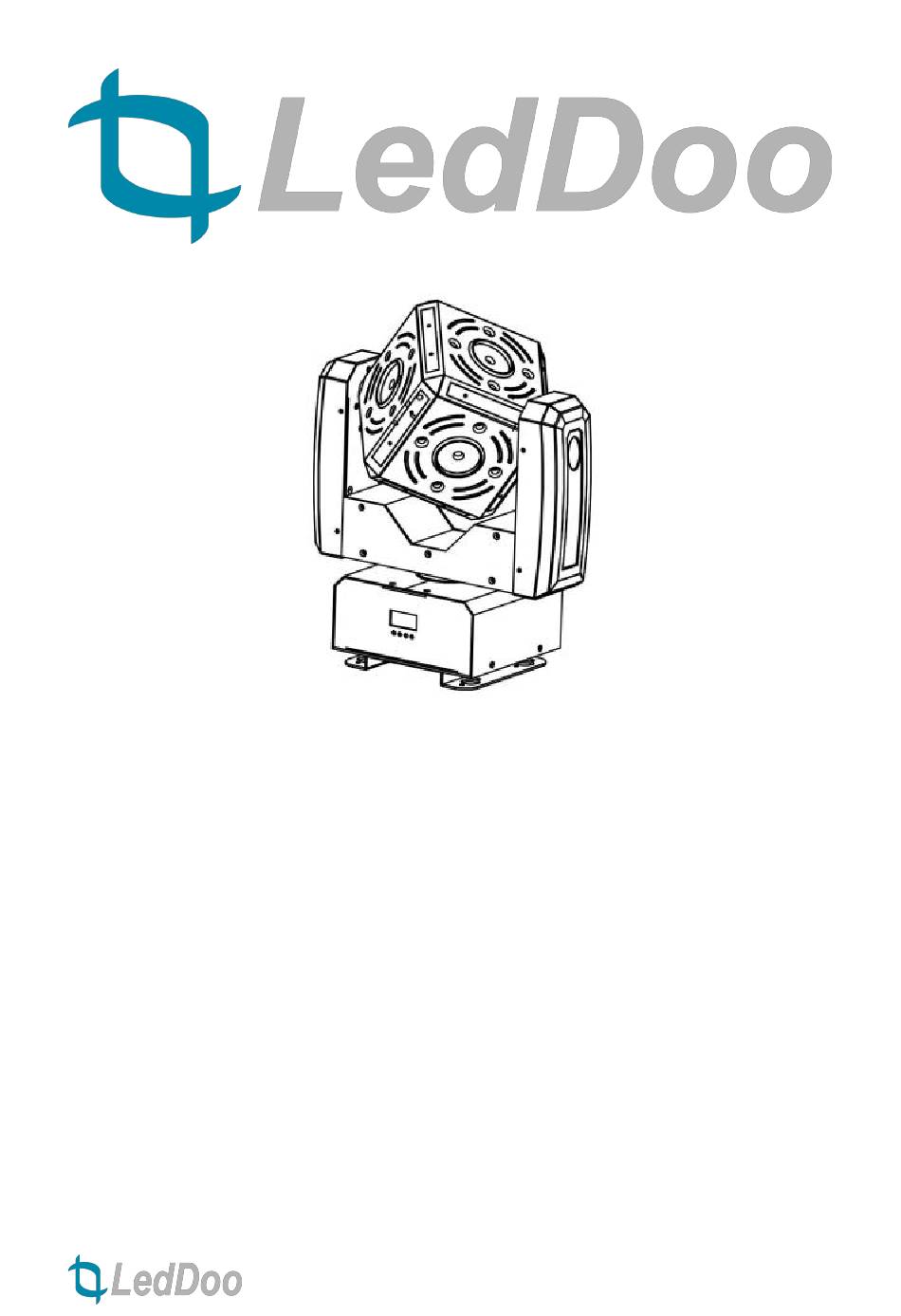

  • Page 1 LED Beam Cube 612 RGBW...

  • Page 2: Menu System

    Merci d’avoir acheté le LED Beam Cube 612. Chaque LED Beam Cube 612 a été rigoureusement testé en condition d’exploitation avant envoi. Vérifier soigneusement l’état de l’emballage. Si le carton présente un choc, assurez-vous que l’appareil à l’intérieur est intègre. Ne connectez jamais un appareil présentant un choc ou un défaut. En cas de problème, contactez votre revendeur.
  • Page 3 Modes DMX Mode 8 canaux Canaux Valeur DMX Fonction 000-255 DImmer Led rouge 10W 000-255 Led RGBW 10 W stroboscope 000-255 Dimmer Led rouge 5050 000-255 Led 5050 stroboscope 000-007 008-022 Mouvement Pan/Tilt 01 023-037 Mouvement Pan/Tilt 02 038-052 Mouvement Pan/Tilt 03 053-067 Mouvement Pan/Tilt 04 068-082...
  • Page 4 000-014 Couleurs 015-255 Enchainement couleurs 000-255 Vitesse d’enchainement (Lent->Rapide) Mode 23 canaux Canaux Valeur DMX Fonction 000-255 Pan 0°-540° 000-255 Vitesse (Rapide->Lent) 000-127 Tilt 0°-360° 128-189 Rotation horaire (Rapide->Lent) 190-193 Stop 194-255 Rotation anti-horaire (Rapide->Lent) 000-007 RGBW LED Blackout 008-024 RGBW LED1 R 025-041 RGBW LED1 G...
  • Page 5 174-189 5050 LED Stripe 1 Couleur 11 190-206 5050 LED Stripe 1 Couleur 12 207-222 5050 LED Stripe 1 Couleur 13 223-239 5050 LED Stripe 1 Couleur 14 240-255 5050 LED Stripe 1 Couleur 15 000-007 Pas de fonction 008-255 5050 LED Stripe 2 Couleur 000-007 Pas de fonction...
  • Page 6 Mode 27 canaux Canaux Valeur DMX Fonction 000-255 Pan 0°-540° 000-255 Vitesse (Rapide->Lent) 000-127 Tilt 0°-360° 128-189 Rotation horaire (Rapide->Lent) 190-193 Stop 194-255 Rotation anti-horaire (Rapide->Lent) 000-255 Dimmer LED RGBW 000-255 Stroboscope LED RGBW 000-007 RGBW LED Blackout 008-024 RGBW LED1 R 025-041 RGBW LED1 G 042-057...
  • Page 7 157-173 5050 LED Stripe 1 Couleur 10 174-189 5050 LED Stripe 1 Couleur 11 190-206 5050 LED Stripe 1 Couleur 12 207-222 5050 LED Stripe 1 Couleur 13 223-239 5050 LED Stripe 1 Couleur 14 240-255 5050 LED Stripe 1 Couleur 15 000-007 Pas de fonction 008-255...
  • Page 8 Mode 69 canaux Canaux Valeur DMX Fonction 000-255 Pan 0°-540° 000-255 Pan Fine 000-255 Vitesse Pan (Rapide->Lent) 000-127 Tilt 0°-360° 128-189 Rotation horaire (Rapide->Lent) 190-193 Stop 194-255 Rotation anti-horaire (Rapide->Lent) 000-255 Dimmer LED RGBW 000-255 Stroboscope LED RGBW 7/11/15/19/23/27 000-255 Dimmer rouge LED RGBW 8/12/16/20/24/28 000-255...
  • Page 9 LED Beam Cube 612 RGBW Introduction...
  • Page 10 Unpacking: Thank you for purchasing the LED BEAM moving head wash, Every fixture has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit has arrived intact.

  • Page 11: Dmx Mode

    Set Up Power Supply: Before plugging your unit in, be sure the source voltage in your area matches the required voltage for your fixture, The model is workable in 100-240V/50~60Hz. Please make sure your unit voltage matches the wall outlet voltage before attempting to operate you fixture.
  • Page 12 8CH MODE: Channel DMX Value Function 000-255 10W R LED Dimmer0%~ 100% 000-255 10W RGBW LED Strobe from slow to fast 000 - 255 5050 R LED Dimmer 0%~ 100% 000-255 5050 LED Strobe from slow to fast 000-007 008-022 Pan/Tilt Movement 01 023-037 Pan/Tilt Movement 02...
  • Page 13 23 CH MODE: Channel DMX Value Function 000 - 255 Pan 0°~ 540° 000 – 255 Speed fast to slow 000 - 127 Tilt 0°~ 360° 128 - 189 clockwise Rotation fast to slow 190 - 193 Stop 194 - 255 anticlockwise Rotation slow to fast 000 - 007 RGBW LED1--Blackout...
  • Page 14 000 - 255 RGBW LED6--Color 000 - 007 5050 LEDs Strip1-- Blackout 008 - 024 5050 LEDs Strip1 --color1 025 - 041 5050 LEDs Strip1--color2 042 - 057 5050 LEDs Strip1--color3 058 - 074 5050 LEDs Strip1--color4 075 - 090 5050 LEDs Strip1--color5 091 - 107 5050 LEDs Strip1--color6...
  • Page 15 000-007 008-022 Pan/Tilt Movement 01 023-037 Pan/Tilt Movement 02 038-052 Pan/Tilt Movement 03 053-067 Pan/Tilt Movement 04 068-082 Pan/Tilt Movement 05 083-097 Pan/Tilt Movement 06 098-112 Pan/Tilt Movement 07 113-127 Pan/Tilt Movement 08 128-142 Pan/Tilt Movement 09 143-157 Pan/Tilt Movement 10 158-172 Pan/Tilt Movement 11 173-187...
  • Page 16 058 - 074 10W RGBW LED1--W 075 - 090 10W RGBW LED1--R + G 091 - 107 10W RGBW LED1--R + B 108 - 123 10W RGBW LED1--R + W 124 - 140 10W RGBW LED1--G + B 141 - 156 10W RGBW LED1--G + W 157 - 173 10W RGBW LED1--B + W...
  • Page 17 038-052 Pan/Tilt Movement 03 053-067 Pan/Tilt Movement 04 068-082 Pan/Tilt Movement 05 083-097 Pan/Tilt Movement 06 098-112 Pan/Tilt Movement 07 113-127 Pan/Tilt Movement 08 128-142 Pan/Tilt Movement 09 143-157 Pan/Tilt Movement 10 173-187 Pan/Tilt Movement 12 188-202 Pan/Tilt Movement 13 203-217 Pan/Tilt Movement 14 218-232...
  • Page 18 34/37/40/43/46/49 0-255 5050 LED-Green dimmer0-100% 52/55/58/61/64/67 35/38/41/44/47/50 0-255 5050 LED-Blue dimmer0-100% 53/56/59/62/65/68 000-199 No function 200-209 Reset 210-239 No function 240-255 Sound active White Balance Select WHITE BALANCE ,press the ENTER button to confirm,present mode will blink on the display.Use the DOWN and UP button to select the Red or Green or Blue button to change the value (128-255),once the mode has been selected,press the Enter button to setup.go back to the functions without any change press the MENU button again.hold and press the MENU button about one second or wait for one minute to exit the menu mode.
  • Page 19 Sound sense Select Sound sense ,press the enter button to confirm,present mode will blink on the display.use the down and up button to change the sound sense from 0-100.once the mode has been selected .press the ENTER button to setup,to go back to the functions without any change the MENU button again.hold and press the MENU button about one second or wait for one minute to exit the menu mode.
