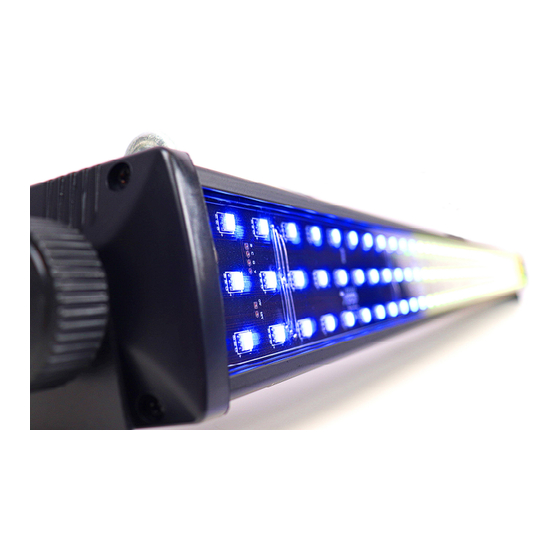

LEDDOO LED SQUARE BAR 144 User Manual

Download this manual

LED SQUARE BAR 144

User Manual

Need help?

Do you have a question about the LED SQUARE BAR 144 and is the answer not in the manual?

Page 1 LED SQUARE BAR 144 User Manual...
Page 2: Dmx-Controlled Operation
Keep This Manual For Future Need Introduction Unpacking: Thank you for purchasing this fixture, every fixture has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit has arrived intact.
Page 3 Please, be sure that you don’t have any overlapping channels in order to control each device correctly and independently from any other fixture on the DMX chain. If several LED PIX-144 RGB Bars are addressed similarly, they will work synchronically. Controlling: After having addressed the LED PIX-144 RGB Bar, you may now start operating it via your lighting controlling.
Page 4 Display 6CH MODE: Channel DMX Value Function 000-255 Master dimmer 0-100% 000-255 Strobe with increasing speed 000-255 RED Dimmer 0%~ 100% 000-255 Green Dimmer 0%~ 100% 000-255 Blue Dimmer 0%~ 100% 000-015 No function 016-255 Auto program R-G-B with increasing 12CH MODE: DMX MODE: 3CH MODE:...
Page 5 24CH MODE: 48CH MODE:...
