REMO Electronics REMO BAS-2307 WiFi Dual Band Manual

Wi-Fi Flat Antenna

REMO BAS-2307 WiFi Dual Band
QUICK USER GUIDE
Thank you for choosing our Flat Antenna REMO BAS-2307 WiFi Dual Band! It has been
developed by a team of engineers determined to continue with the tradition of excellence
and innovation of REMO-Electronics
Dual Band is made of high-quality materials in accordance with thoroughly detailed
design.
BAS-2307 WiFi Dual Band can be installed on any mast with a diameter up to 50 mm or
wall bracket. The antenna is connected to the WiFi router or WiFi adapter via cable
RG-58A/U with RP-SMA connector.
Wi-Fi Flat Antenna REMO BAS-2307 WiFi Dual Band improves the signal strength, as well
as steadiness and accuracy of data transmission. The antenna REMO BAS-2307 WiFi Dual
Band is compatible with Wi-Fi adapters and Wi-Fi routers operating in the frequency
range 2.4 Ghz and 5 Ghz (IEEE802.11a/ac/b/g/n), with RP-SMA connector.

Electrical Data

Frequency: 2400-2500 MHz; 5100-6100 MHZ
Gain: 15 dBi; 12 dBi
VSWR: <2.0:1
Polarization: Vertical
Horizontal Beamwidth: 40°; 41°
Vertical Beamwidth: 35°; 33°
Nominal Impedance: 50 Ohms
F/B Ratio: >20 dB
Max Input Power: 100 W
Lightning Protection: DC Ground

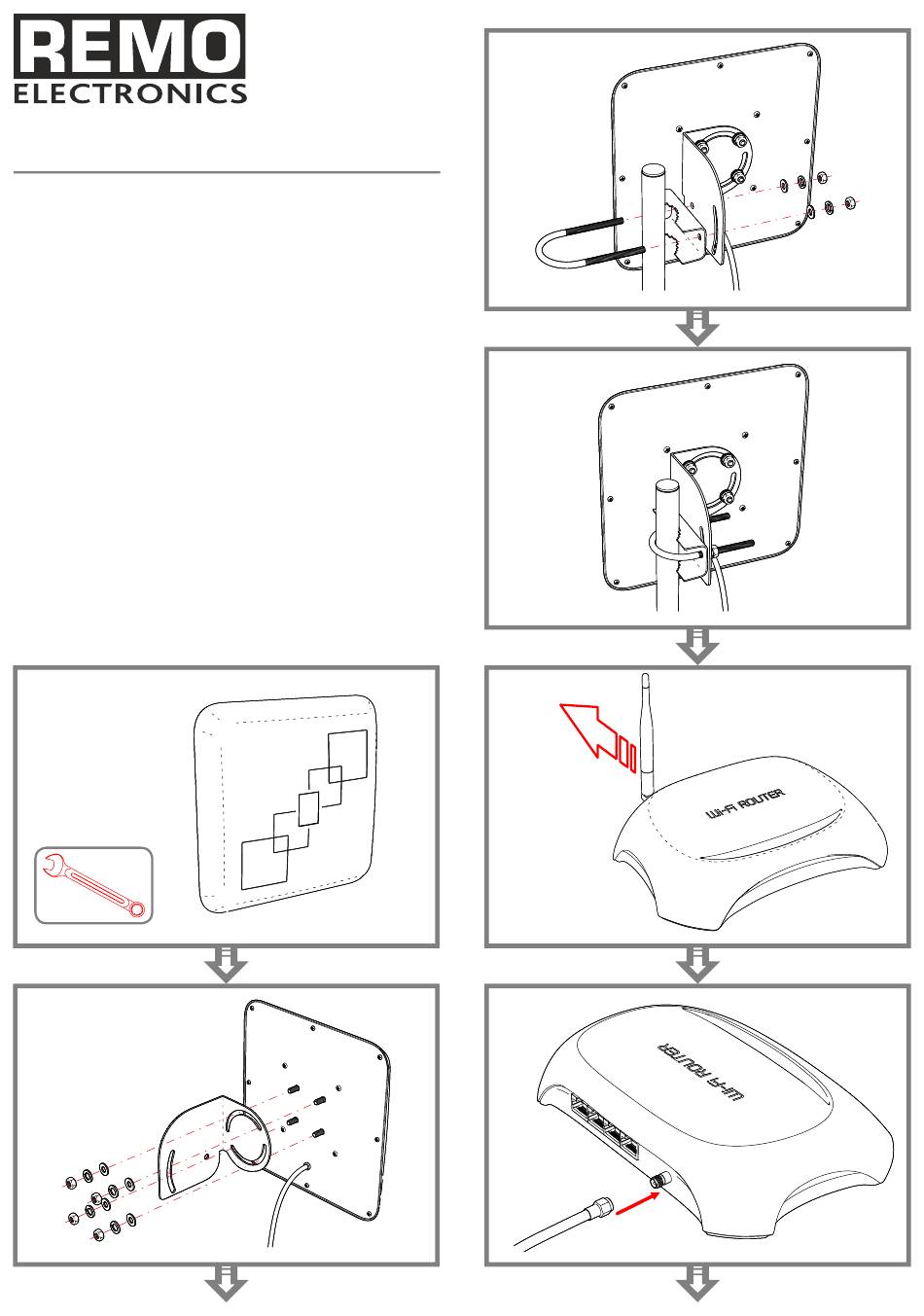

Start
Step 1
products. Wi-Fi Flat Antenna REMO BAS-2307 WiFi
Step 2
Step 3
Step 4
Step 5
