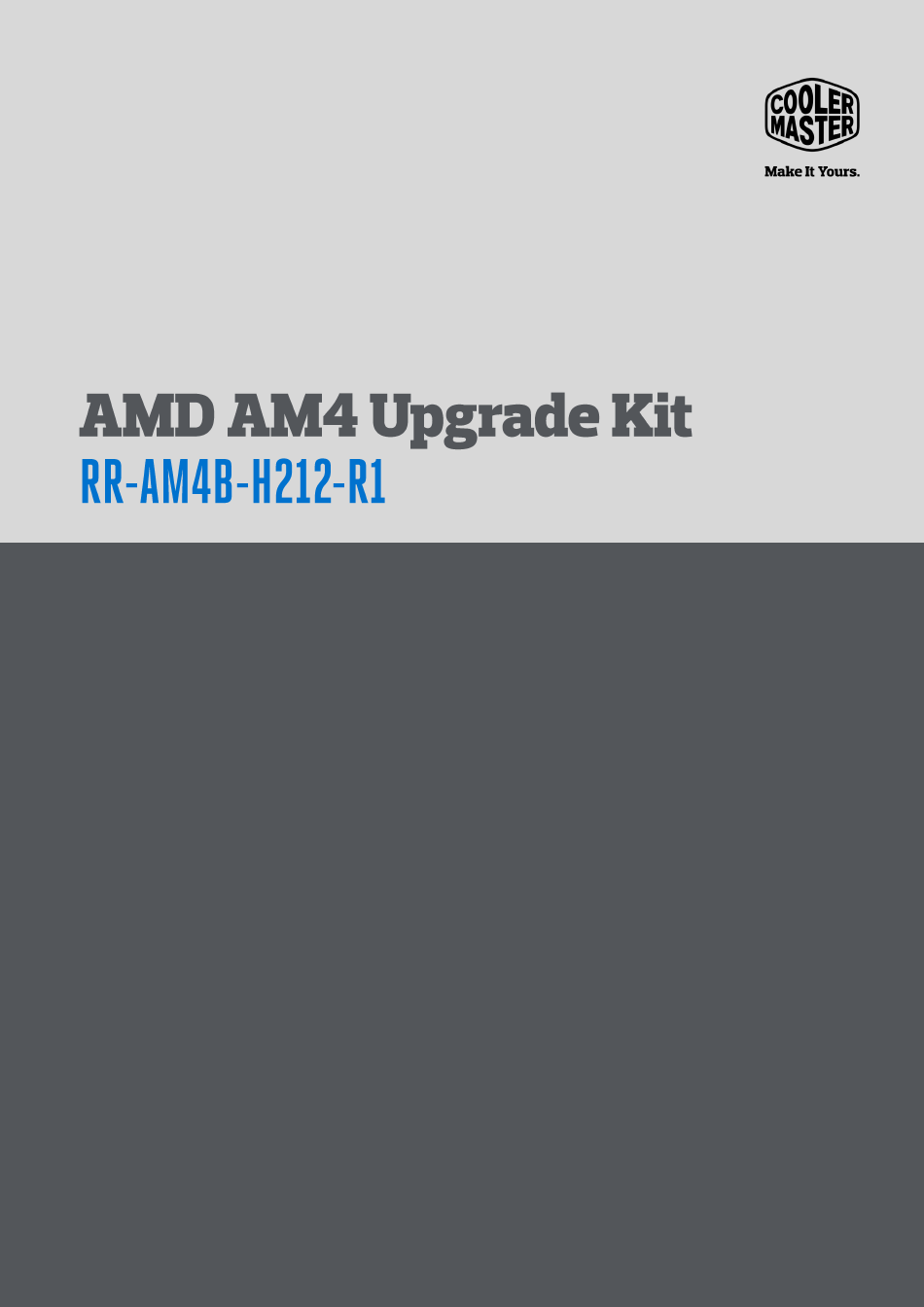

Cooler Master RR-AM4B-H212-R1 Quick Start Manual

Amd am4 upgrage kit

Download this manual

We are ready for your AMD socket.

First Edition, February 2017

Page 1 We are ready for your AMD socket. First Edition, February 2017...
Page 2 This is an AMD AM4 upgrade kit (RR-AM4B-H212-R1) for the new AMD Ryzen processors and is compatible with selected cooling products. The models are listed below: ․MasterAir Pro 4 ․MasterAir Pro 3 ․Hyper 412 Series ․Hyper 212 EVO ․Hyper 212 X For other models, additional upgrade kit will be available.
Page 3 Remove a screw from one side of the AM4 upgrade kit, then place the bracket between the copper base and heatsink. AMD AM4 upgrade kit only fits in one orientation.  Lightly secure the screw that you removed from the previous step. Clip in AMD AM4 upgrade kit onto retention module on the motherboard.
Page 4 Adjacent next to PCIe zone Adjacent next to power zone Secure both screws. Apply the cooler fan back onto the cooler. Ensure you plug in the fan cable into the motherboard. ...
Page 6 Thank you for reading. If you have any other questions, Please contact your local retailer or tech support. © Cooler Master Technology Inc.
