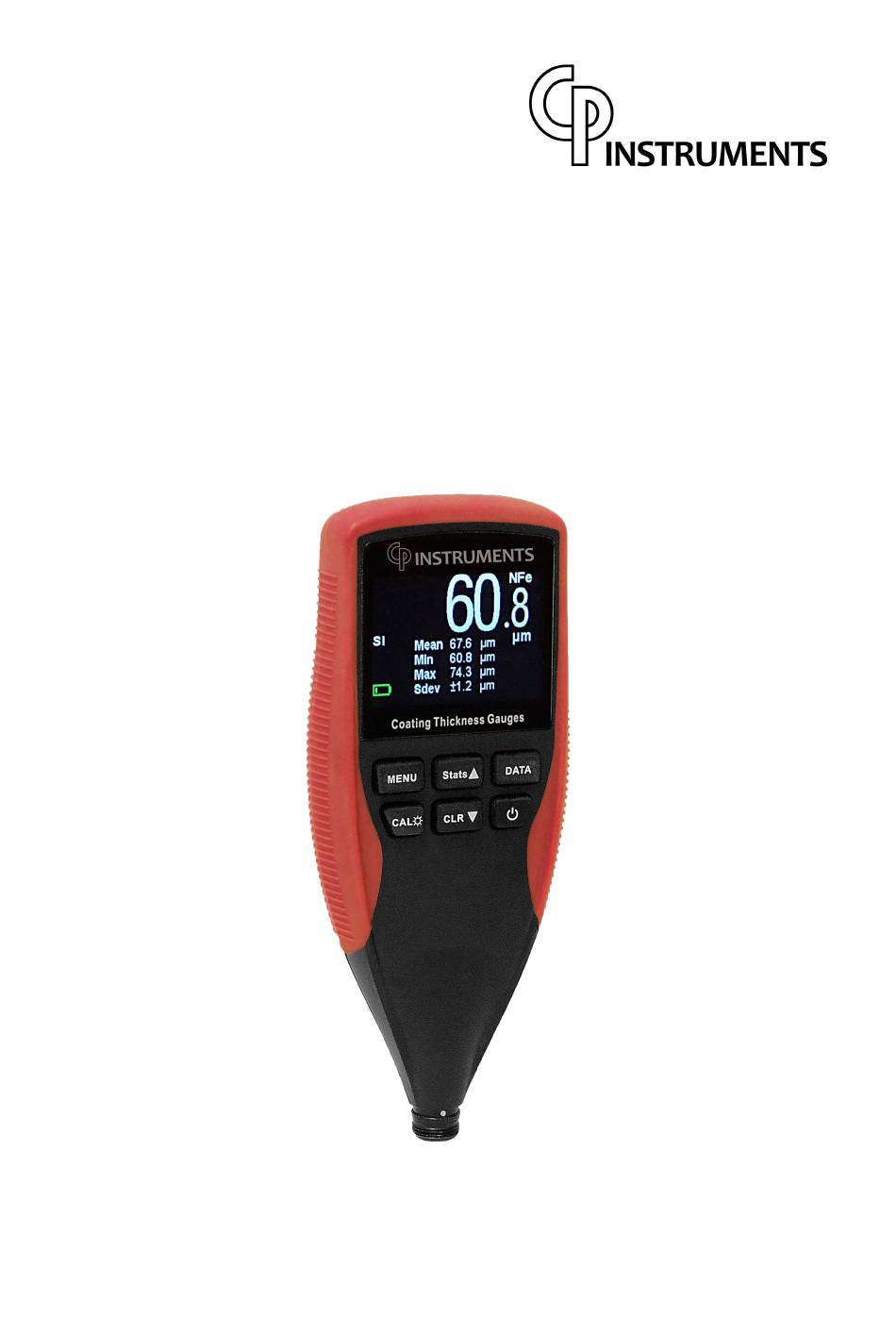

- Page 1 Checkpoint Instruments ul. Klecińska 125 54-413 Wrocław Polska kontakt@cp-instruments.pl www.cp-instruments.pl User Manual LDM100 Coating Thickness Gauge...
-
Page 2: Table Of Contents
USER MANUAL Contents Introduction......................3 Safety Information....................3 Specification......................4 System Description....................5 User interface and buttons......................5 Line starting ..........................6 Measurement modes ........................6 4.3.1 Single measurement........................6 4.3.2 Continuous measurement ......................8 Measuring range ........................8 Battery indicator .......................... 8 Selection of the measuring unit .................... -
Page 3: Introduction
USER MANUAL Introduction Thank you for purchasing a CP Instruments Coating Thickness Gauge. This hand-held device for coating thickness measurement with a separate probe is a highly intelligent and accurate measuring device with which layer thicknesses can be measured quickly and accurately on almost all metal surfaces. -
Page 4: Specification
USER MANUAL Specification Measuring range 0 … 1250 µm / 0 … 50 mil Resolution 0,1 µm / 0,1 mil Accuracy ± (2 % + 2 µm) / ± (2 % + 0,1 mil) Dimensions 166 x 68 x 30 mm Weight 180 g (with batteries) Ambient temperature... -
Page 5: System Description
USER MANUAL System description User interface and buttons Press the short to turn on the device and long to turn off the device again. The meter automatically turns off after 180 seconds of inactivity. long to get to the (Menu/Back: Press the main menu. -
Page 6: Line Starting
USER MANUAL (Delete/Down): Press the in measurement mode to clear the recorded data. Line starting Press the to turn on the instrument. A beep sounds and "Model no. PCE-CT 27FN" is displayed on the screen Measurement modes The coating thickness gauge has two different measurement modes, the single measurement (SI) and the continuous measurement (CO). - Page 7 USER MANUAL standard deviation ±20,5 µm (2 % + 2 µm) The measured material is a magnetic metal such as steel The measured material is a non-magnetic metal such as aluminum...
-
Page 8: Continuous Measurement
USER MANUAL 4.3.2 Continuous measurement The CO mode is the measuring mode of continuous measurement: Press the probe vertically against the surface to be measured. The instrument will beep continuously and display the coating thickness reading when the readings have been taken. Note: During the measurement, do not lift the probe off the surface to be tested until the measurement is complete. -
Page 9: Selection Of The Measuring Unit
USER MANUAL Selection of the measuring units long to get to the main menu. Then move to the menu item "Unit" via the main menu for Press the the options menu. Press the to select between μm and mil. Lanugage selection Press the long to get to the main menu. -
Page 10: Alarm Function
USER MANUAL Alarm funtion To adjust the alarm range, long-click on to get to the main menu. Then move to the menu option "Alarm limit" via the main menu for the options menu. Press the (long for fast scroll) to adjust the range. 4.8.1 Switch on/off the alarm Press the... -
Page 11: Stored Values
USER MANUAL Stored values Press the to display the stored data and press to display the last 50 stored values. Then move to the menu item "Data deletion" via the main menu for the To clear the data, press options menu. Then you can choose between "single deletion"... -
Page 12: Calibration
USER MANUAL 4.11 Calibration The instrument has been factory calibrated and a built-in self-test function performed before the measurement. Therefore, it usually only needs to be tested before the measurement if the measured value is 0 when measuring an uncoated metal. If this is not the case, a zero point calibration should be performed. -
Page 13: Factory Setting
USER MANUAL 4.12 Factory settings If zeroing with standard plastic films does not work, it may be necessary to reinitialize the device. First press briefly select "Reset", then "Complete Reset" and confirm with "Complete reset" will flash in the display and indicate together with a beep that the initialization is completed. -
Page 14: Disposal
Batteries must not be disposed of with household waste: The end user is legally obliged to return. Used batteries can be returned, among other things, to designated collection points or CP-Instruments. Collection point according to BattV: Checkpoint Instruments ul. Klecińska 125 bud.BETA 54-413 Wrocław For the implementation of the ElektroG (take back and disposal of WEEE) we take back our equipment.
