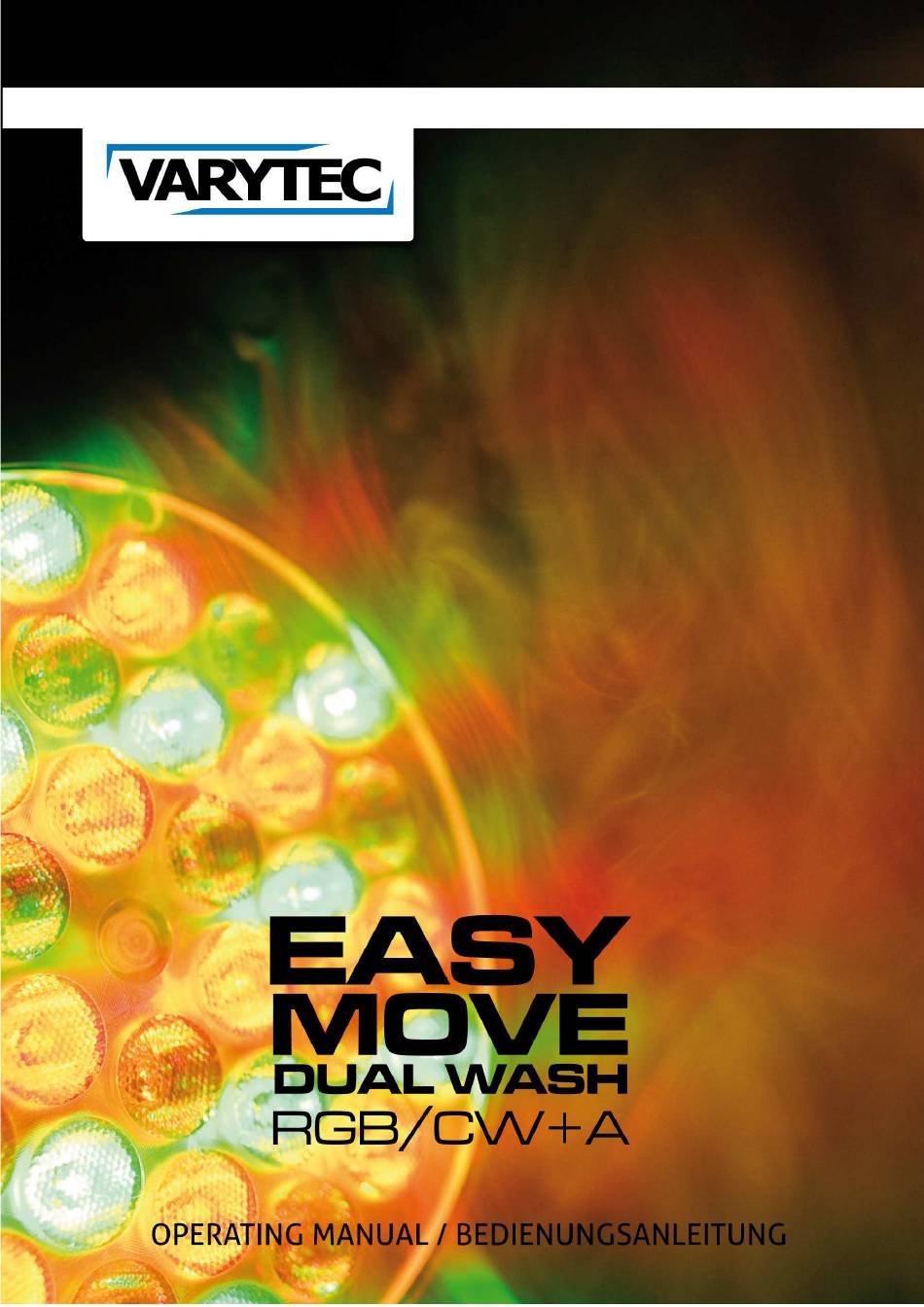

- Page 1 Table of content...
-
Page 2: Table Of Contents
Safety instructions ..........................3 1.1. FOR SAFE AND EFFICIENT OPERATION ................3 Introduction ............................4 2.1. Packing list..........................4 2.2. Unpacking instructions ......................4 2.3. AC Power ..........................4 2.4. Additional safety instructions ....................4 Features ............................5 DMX Channels ..........................6 Set up ............................... -
Page 3: Safety Instructions
1. Safety instructions • This device is suitable for indoor use only. • All modifications to the device will void the warranty. • Repairs are to carry out by skilled personnel only. • Use only fuses of the same type and original parts as spare parts. •... -
Page 4: Introduction
2. Introduction 2.1. Packing list Product name Quantity Wash light 1 pcs Power line 1 base User manual 1 pcs 2.2. Unpacking instructions After receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present and have been received in a good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. -
Page 5: Features
Do not attempt to operate this unit if the power cord has been frayed or broken. Do not attempt to remove or break off the ground prong from the electrical cord. This prong is used to reduce the risk of electrical shock and fire in case of an internal short. Disconnect from main power before making any type of connection. -
Page 6: Dmx Channels
4. DMX Channels In 16 channel mode: Channel Function TILT Pan fine Tilt fine Pan/Tilt Speed Master Dimmer Red side1 Green side 1 Blue side 1 White side 2 White side 2 Amber side 2 Strobe Color changer side 1 Color changer side 2 Reset 5. -
Page 7: Data Cabling
number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. Maximum recommended serial data link distance: 500 meters (1640ft). Maximum recommended number of fixtures on a serial data link: 32 fixtures. 5.2.1. -
Page 8: Operation
6. Operation 6.1. Navigating the control panel Access control panel functions by using the four panel buttons located directly under the display. 6.2. Menu map There are six operating modes, many with sub-modes. Use the “MODE/ESC” button to enter the menu. -
Page 9: Setting Reversed Or Normal Pan
6.3.4. Setting reversed or normal PAN To select use the “MODE/ESC” button and choose “Pan” (normal) or “r Pan” (reversed). Use the“UP” and “DOWN” buttons to cycle between the two settings. Press the “ENTER” button to confirm your selection. 6.3.5. Setting reversed or normal TILT To select, use the “MODE/ESC”... -
Page 10: Slave Mode
Choosing Sound activated mode: To select, use the “MODE/ESC” button and choose “NStS”. When the “ENTER” button is pressed the LED Display changes to “SrUn” and the unit enters Sound activated mode. Initial LED Display Second LED Display Sub mode NStS SrUn Sound activated... -
Page 11: Color Options
LED Display DMX sub mode 16 CH 16 channel 6.3.12. Color options The unit offers a range of 16 preset colors. These can be individually selected with DMX control and feature in Auto Run and Sound Active modes. 11 / 12... - Page 12 Importer: B & K Braun GmbH Industriestraße 1 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 12 / 12...
