Identix MiniPad Quick Start Manual

Hide thumbs Also See for MiniPad:
1
2
3
4
5
6

Advertisement

Table of Contents

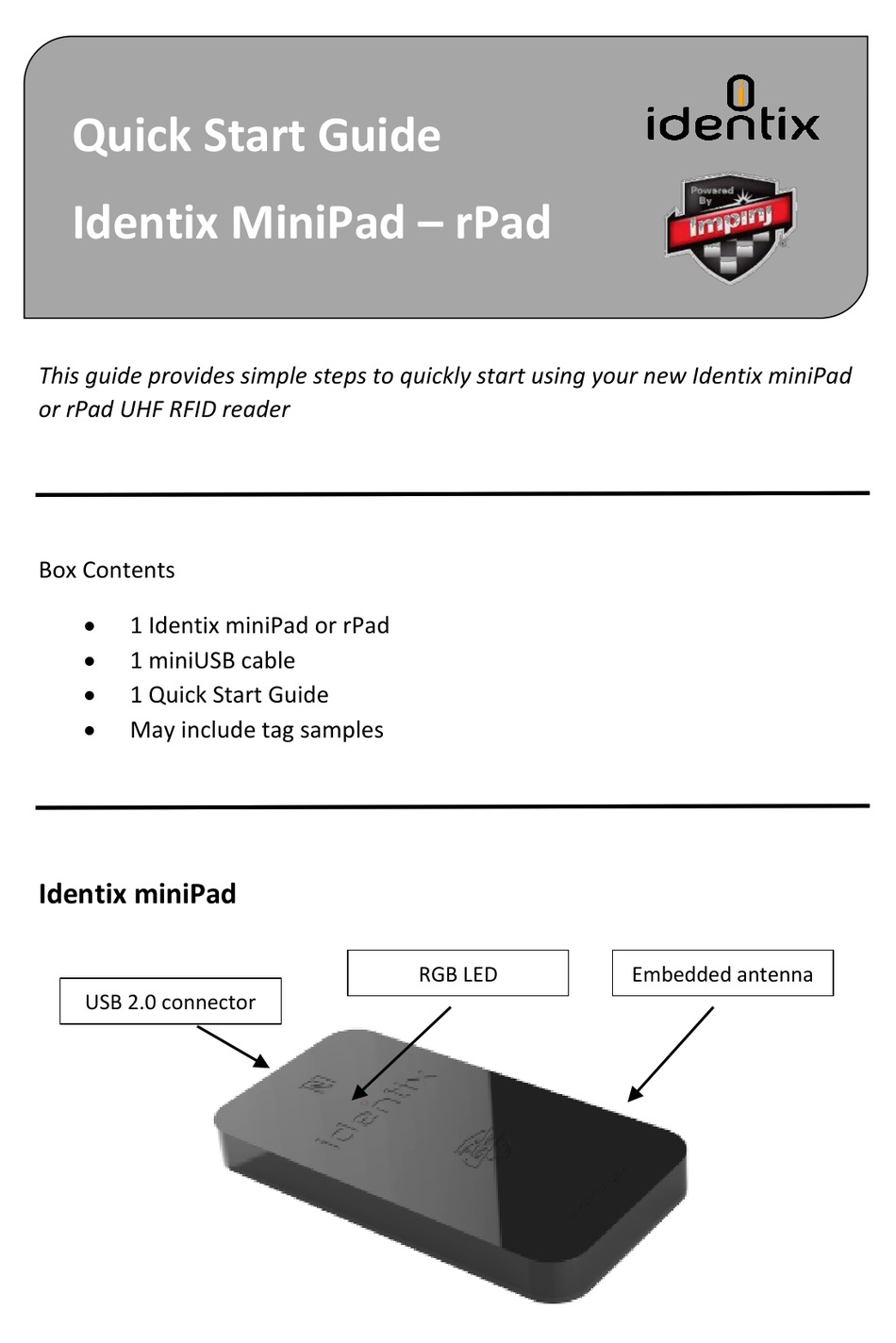

Quick Start Guide
Identix MiniPad – rPad
This guide provides simple steps to quickly start using your new Identix miniPad
or rPad UHF RFID reader

Box Contents

1 Identix miniPad or rPad
1 miniUSB cable
1 Quick Start Guide
May include tag samples
Identix miniPad
USB 2.0 connector
RGB LED
Embedded antenna

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MiniPad and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Identix MiniPad

Summary of Contents for Identix MiniPad

  • Page 1 Quick Start Guide Identix MiniPad – rPad This guide provides simple steps to quickly start using your new Identix miniPad or rPad UHF RFID reader Box Contents  1 Identix miniPad or rPad  1 miniUSB cable  1 Quick Start Guide ...
  • Page 2 1) Download the miniPad-rPad Windows USB driver file from https://idntx.zendesk.com 2) Connect the miniPad or rPad to your PC using the mini USB cable provided. 3) Once Microsoft Windows detects the new device, set the downloaded INF file as the device driver 4) Windows will map a new virtual COM port to the connected miniPad / rPad RFID reader.
  • Page 3 Modifying the configuration . A configuration file (“Identix-Pad.cfg”) is stored inside a removable drive (labeled IDENTIX that mounts automatically when the miniPad / rPad device connects to the host computer), allows the user to switch between Transparent and HID Keyboard Emulation modes.
  • Page 4 “Opmode” on the configuration file. After saving the configuration file, the miniPad / rPad reader will automatically switch to the appropriate operating mode. All remaining configuration file entries are applicable when operating in HID Keyboard emulation mode only. Below is an example of the miniPad / rPad configuration file. Opmode=T...
  • Page 5 1) Copy the RS500 Development Tool.exe file from https://idntx.zendesk.com 2) Connect the miniPad or rPad to your PC using the miniUSB cable. At this point, the RGB LED, should go on with pink color. 3) Place UHF RFID tags on top of the miniPad or rPad embedded antenna.
  • Page 6 (“hazardous uses”) or for use in automotive environments. Customers must indemnify Identix against any damages arising out of the use of Identix products in any hazardous or automotive uses.
