- Page 1 Quick Start Guide Global Satellite Communicator connected...
-
Page 2: Table Of Contents
IMPORTANT: See the Product Safety, Regulatory and Warranty Information guide, in the product box for important information. The User Manual is available at https://support.zoleo.com. TABLE OF CONTENTS Introduction Device Overview Getting Started Device Features Device LED Description Quality of Service and Efficient Operation... -
Page 3: Introduction
INTRODUCTION Welcome to ZOLEO! Thank you for choosing ZOLEO and welcome to seamless global messaging via satellite, cellular and Wi-Fi. What’s inside the box:... -
Page 4: Device Overview

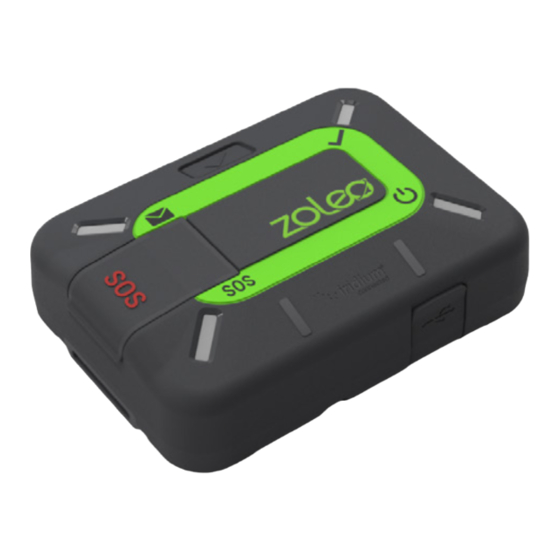

DEVICE OVERVIEW 1. Power button 6. SOS Button 11. Label - SOS instructions 2. Check-in button 7. SOS LED 12. Lanyard 3. Message LED 8. SOS cover 4. Check-in LED 9. USB port 5. Power/Battery LED 10. USB cover... -
Page 5: Getting Started
GETTING STARTED Charge your ZOLEO Activate your Install the device ZOLEO device and ZOLEO App airtime plan... - Page 6 STEP 1- Charge your ZOLEO device *Adapter not included Connect the USB charging cable to the ZOLEO device and adapter*. Plug in. When finished, close the USB cover for a water-resistant seal. Tip: While charging you can begin setting up your ZOLEO...
- Page 7 STEP 2- Activate your ZOLEO device and airtime plan IMPORTANT: You’ll need to add two (2) SOS contacts when you activate your account. https://www.zoleo.com/activate Go to: Info required to activate: • Personal contact information • Emergency contact information x 2 •...
- Page 8 STEP 3- Install the ZOLEO App Google Play App Store 1) Search ‘ZOLEO’ on the App Store or Google Play and install the application to your smartphone/tablet. 2) Turn on your ZOLEO device. 3) Pair your smartphone/tablet with your ZOLEO device via Bluetooth by navigating to the ZOLEO tab in the app.
- Page 9 Setting up your smartphone/tablet (con’t) 4) Once paired, you can send/receive messages from the ZOLEO App. Refer to the User Manual for info on using the Messaging, SOS, Check-in, Weather and Location features of the app. connected 5) ZOLEO also sends/receives messages via Wi-Fi and cellular...
-
Page 10: Device Features
DEVICE FEATURES Send Check-in message 1) Press and hold the 2) All LED’s will spin 3) Device will emit Check-in button green and send a an ascending tone until the Check-in check-in message. when check-in LED has changed. message is sent. Note: Refer to page 13-15 for detailed LED descriptions. - Page 11 IMPORTANT: The SOS alerting function should only be used in an emergency. SOS alerts transmit over the Iridium satellite network only. To use SOS via the ZOLEO App, it must be paired (via Bluetooth) with the ZOLEO device.
- Page 12 Cancel SOS 1) Open SOS cover and 2) All LED’s will spin press SOS button for green. Cancellation 5 seconds. is acknowledged when you hear an ascending tone. Note: An SOS alert can be cancelled at any time.
-
Page 13: Device Led Description
DEVICE LED DESCRIPTION CONDITION ACTION Device is ON The power LED will blink GREEN. Device is ON and The power LED will blink AMBER. charging Device is ON and The power LED will slow blink battery is low AMBER and device will emit a descending tone. - Page 14 CONDITION ACTION Check-in All LEDs will spin GREEN while check-in is sent sending. Device emits an ascending tone when the check-in is successfully sent. Check-in Check-in LED will blink AMBER and emit failed to descending tone when a check-in message send fails to send.
- Page 15 CONDITION ACTION SOS initiated All LEDs will spin and device will emit emergency tone, to cancel press SOS button for 5 seconds. Ascending tone confirms SOS acknowledged message is sent and SOS LED will slow double blink when emergency is acknowledged. SOS cancelled All LEDs will spin GREEN...
-
Page 16: Quality Of Service And Efficient Operation
QUALITY OF SERVICE AND EFFICIENT OPERATION 1) Ensure that your ZOLEO device is at least 80% charged and ready for use when needed. 2) For optimal performance, ensure the ZOLEO device has an unobstructed view of the sky, with the ZOLEO logo pointing up to the sky. -
Page 17: Important Tips
45°C (113°F). y for • Please keep your ZOLEO device charged to at least 80% capacity at all times so it is ready for use when needed. • Only one user can be paired to the device at a time. If another user is already paired, that user must first disconnect from the device. - Page 18 Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by ZOLEO Inc. is under license. All other trademarks, trade names, service marks and logos are the property of their respective owners.
- Page 19 FCC Statement FCC ID: 2ATHQZL1 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 20 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Notice: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Page 21 IC Statement IC: 25141-ZL1 This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicable aux appareils radio exempts de licence.
- Page 22 Product Specification Product Name Global Satellite Communicator Model No. ZL1000 Brand Name Zoleo Device Category Portable Device v4.1 (single mode only for BLE) Bluetooth Version Bluetooth: 2402MHz ~ 2480MHz Satellite: 1616.020833MHz ~ 1625.979167MHz GPS: 1575.42MHz Operation Frequencies SBAS: 1575.42MHz BDS: 1561.098MHz GLONASS: 1602 + n*0.5625 MHz...
- Page 23 There are no restrictions of use in Member States. EU Declaration of Conformity Zoleo Incorporated hereby declares that the device is in compliance with the essential requirements and other relevant requirements of RED Directive 2014/53/EU The SAR limit adopted by Europe is 2.0W/kg averaged over 10 grams of tissue. The highest SAR value for this device type when tested for worn on the body is 0.81W/kg.
