- Page 1 Quick Start Guide Global Satellite Communicator connected...
-
Page 2: Table Of Contents
IMPORTANT See the Product Safety, Regulatory and Warranty Information guide, in the product box for important information. The user manual is available at https://zoleo.com/manuals. TABLE OF CONTENTS Introduction Device Overview Getting Started Device Features Device LED Description Quality of Service and Efficient Operation... -
Page 3: Introduction
INTRODUCTION Welcome to ZOLEO Thank you for choosing ZOLEO and welcome to global messaging via satellite, cellular and Wi-Fi. What’s inside the box ZOLEO Carabiner USB charging Quick Start Guide Communicator cable... -
Page 4: Device Overview
DEVICE OVERVIEW 1. Power button 6. SOS button 11. Label with SOS 2. Check-in button 7. SOS LED instructions 3. Message LED 8. SOS cover 12. Lanyard 4. Check-in LED 9. USB port 5. Power/Battery LED 10. USB cover... -
Page 5: Getting Started

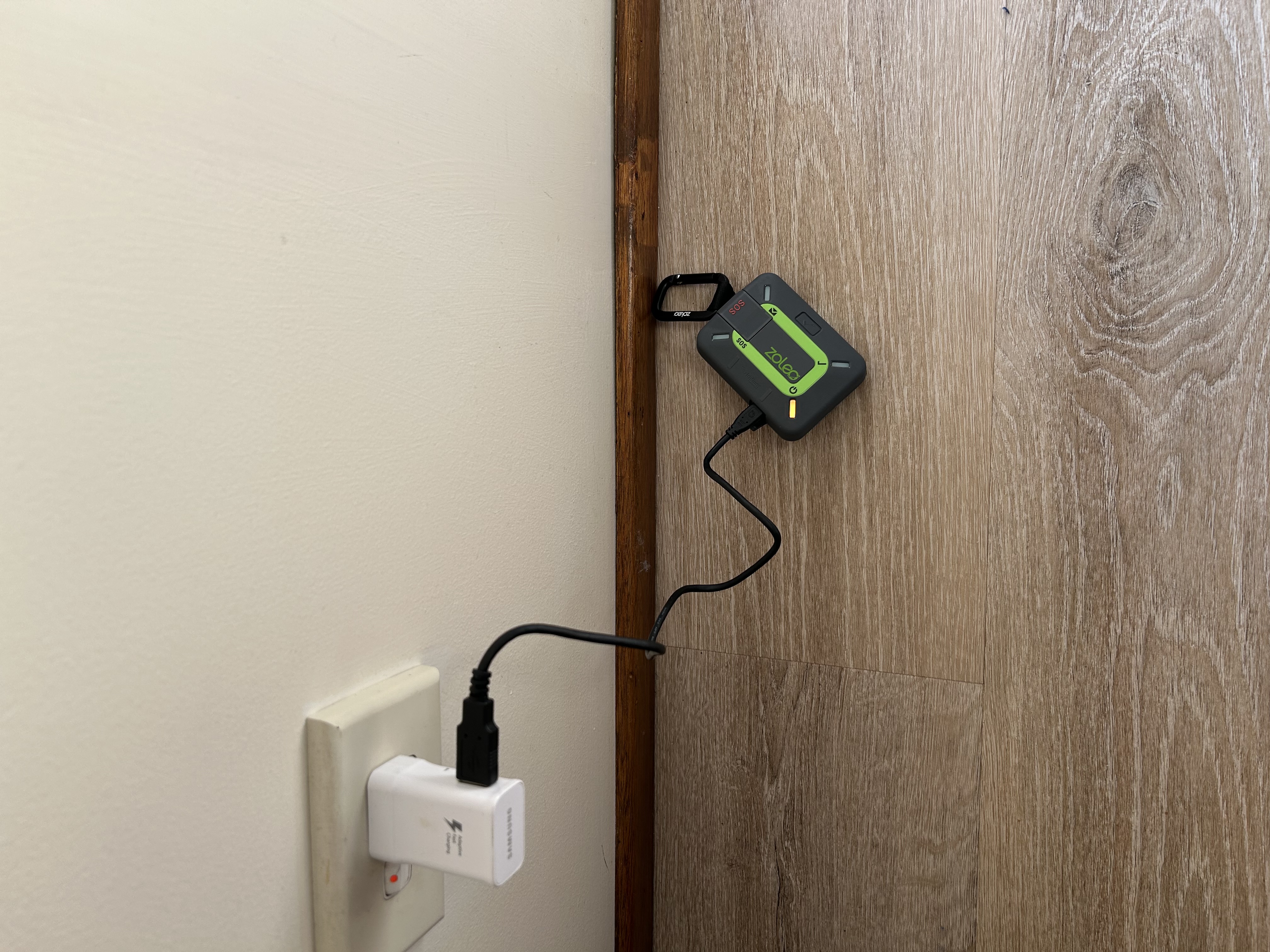

GETTING STARTED Charge your ZOLEO Activate your ZOLEO Install the communicator communicator and ZOLEO app airtime plan... - Page 6 USB charger prior to first use. *Adapter not included Connect the USB charging cable to the ZOLEO communicator and adapter. Plug the adapter into a power outlet and turn the power on. When finished, close the USB cover for a water-resistant seal.
- Page 7 Go to: Info required to activate: • Personal contact information • Emergency contact information x 2 • Check-in contact information x 1 • Valid email address • Credit card information • ZOLEO IMEI and serial number from device label...
- Page 8 Install the ZOLEO App – Google Play App Store 1) Search for ‘ZOLEO’ in the App Store or Google Play and install the app on your smartphone/tablet. 2) Start the application and follow the onscreen prompts to setup your ZOLEO account.
- Page 9 Setting up your smartphone/tablet (con’t) Once connected, you can send and receive messages from the ZOLEO app. Refer to the user manual for information on using the messaging, SOS, check-in, weather and location features of the app. connected The ZOLEO app also sends and receives messages via Wi-Fi and cellular...
-
Page 10: Device Features
DEVICE FEATURES Send Check-in message 1) Press and hold the 2) All LEDs will spin 3) An ascending tone Check-in button green and send a will be emitted until the Check-in Check-in message. when Check-in LED changes. message is sent. Note: Refer to pages 13-15 for detailed LED descriptions. - Page 11 Activate SOS IMPORTANT The SOS alerting function should only be used in an emergency. SOS alerts are transmitted over the Iridium satellite network. To use SOS via the ZOLEO app, it must be connected (via Bluetooth) with the ZOLEO communicator.
- Page 12 Cancel SOS 1) Open the SOS cover 2) All LEDs will spin and press the SOS green. Cancellation button for 5 seconds. is acknowledged when you hear an ascending tone. Note: An SOS alert can be cancelled at any time.
-
Page 13: Device Led Description
DEVICE LED DESCRIPTION CONDITION ACTION Device is ON The power LED will blink GREEN. Device is ON and The power LED will blink AMBER. charging Device is ON and The power LED will slow blink battery is low AMBER and a descending tone will be emitted. - Page 14 CONDITION ACTION Check-in All LEDs will spin GREEN while sending sending a check-in. An ascending tone is emitted when the check-in is successfully sent. Check-in Check-in LED will blink AMBER and a failed to descending tone is emitted when a check- send in message has failed to send.
- Page 15 CONDITION ACTION SOS initiated All LEDs will spin and an emergency tone is emitted. To cancel the SOS, press SOS button for 5 seconds. Ascending tone confirms SOS acknowledged message is sent and SOS LED will slow double blink when emergency is acknowledged.
-
Page 16: Quality Of Service And Efficient Operation
QUALITY OF SERVICE AND EFFICIENT OPERATION 1) When using the ZOLEO in a situation where it cannot be charged, ensure that the battery is fully charged beforehand. 2) If you intend to use your ZOLEO device together with the ZOLEO app, make sure that your smartphone/tablet is in Bluetooth range (less than 50 m (164 ft), line of sight) from your ZOLEO device. -
Page 17: Important Tips
IMPORTANT TIPS • Charge the ZOLEO device when the temperature is between 0°C (32°F) and 45°C (113°F). • Only one smartphone/tablet can be connected with the device at a time. If another smartphone/tablet is already connected, that smartphone/tablet must first be disconnected from the device. - Page 18 Apple Inc. The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by ZOLEO Inc. is under license. All other trademarks, trade names, service marks and logos are the property of their respective owners.
