Summary of Contents for Classic Accessories Deluxe Snow Thrower Cab

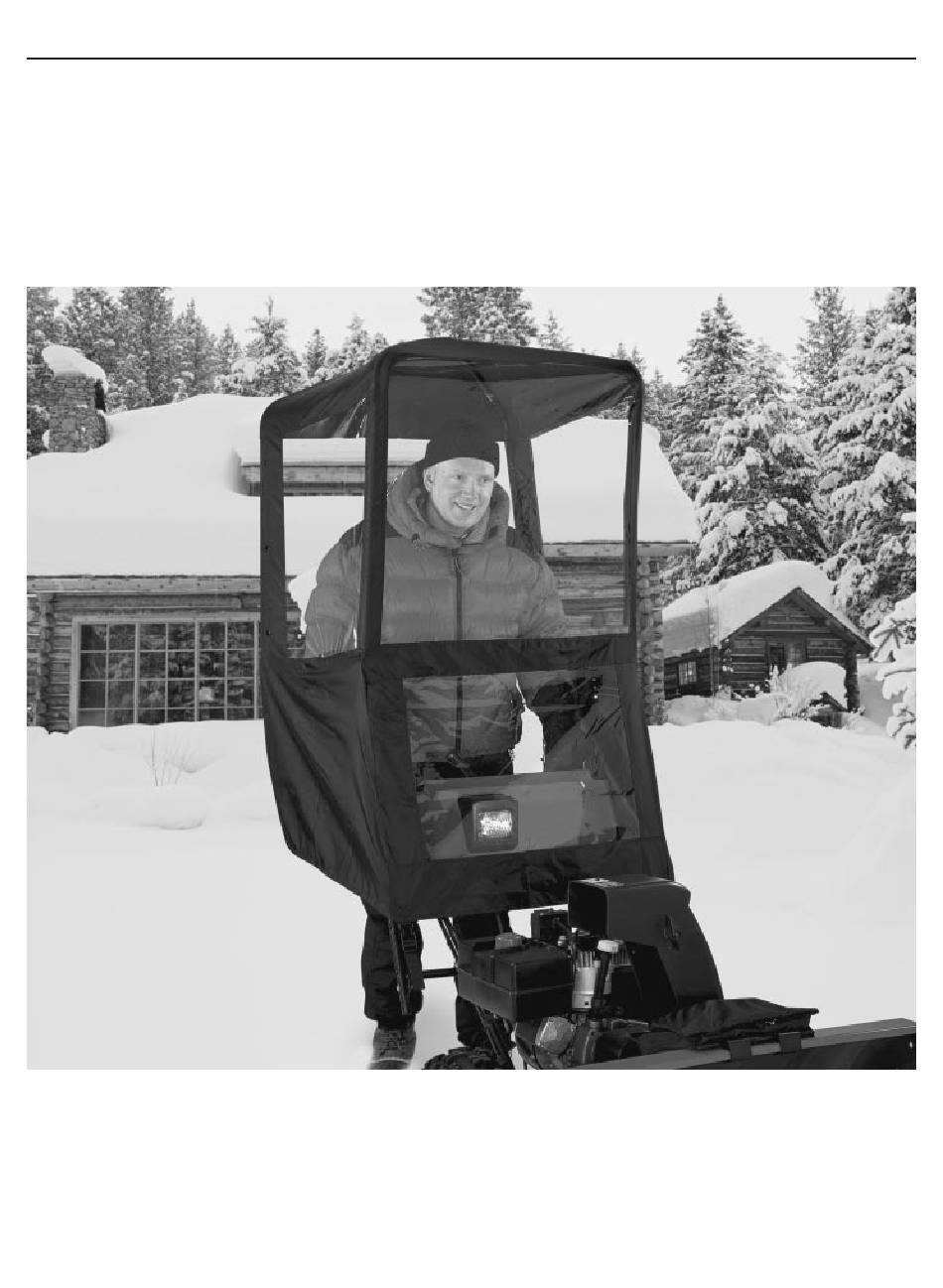

- Page 1 Deluxe Snow Thrower Cab Assembly and Care Instructions...
- Page 2 Deluxe Snow Thrower Cab Assembly and Care Instructions Before you begin please unpack the carton and check that you have all your parts. Description Parts not shown at proportional size) Horizontal Mounting Bars Frame Supports w/ end caps Ribs, Lower (marked LF on front side and LB on Back side)
- Page 3 Hardware (shown about actual size) Hardware Package contents Key Qty Description Capscrew, 1 /4"-20 x 1" hex Bolt, 1 /4"-20 x 1- 1 /4" hex Bolt, 1 /4"-20 x 1- 3 /4" Bolt, 5 /16" x 2- 3 /4" Bolt, 5 /16" x 3- 1 /4" Locknut, 1 /4"-20 Locknut, 5 /16"-18 Capscrew...
-
Page 4: Overall Assembly
Overall Assembly Cover Frame Assembly Sandbag (counterweight) Assembly... -
Page 5: Important Maintenance Instructions
WARRANTY Your Classic Deluxe Snow Thrower Cab ALWAYS remove the cover before transporting is factory warranted for workmanship and your snow thrower on a truck or trailer. Use... -
Page 6: Installation Instructions
Installation Instructions Your snow thrower must be OFF and COOL before you install your cab. TOOLS NEEDED: • One tape measure • One 10" adjustable wrench Step 2: Install the sand bag Either (your choice) Start two 5 /16" x 1- 1 /4" capscrews [H] into •... - Page 7 4AA, 4BB, 4CC or 4DD 4AA, 4BB, 4CC or 4DD The two horizontal mounting bars [1] mount center of the holes in the to the handlebars of your machine with a bar end). This will allow U-clamp system designed to fit a variety of headroom of at least 6.5' different machines.
- Page 8 Step 3: Optional positions for Installing the horizontal mounting bars. Choose the method that works best for your snow thrower. Option B Option A (Preferred) Upper bar - Back side of handlebars Upper bar - Front side of handlebars Lower bar - Back side of handlebars Lower bar - Front side of handlebars Option C Option D...
- Page 9 Step 3: Optional positions for Installing the horizontal mounting bars. Choose the method that works best for your snow thrower. Option F Option E Upper bar - Front side of handlebars Upper bar - Front side of handlebars Lower bar - Front side Lower bar - Front side Note: The lower three holes in the frame supports [2] cannot be used in...
- Page 10 Step 4: Install the frame supports Step 6: Install the upper horizontal mounting bar Swivel the frame supports [2] up until the short leg is parallel to the ground. The holes in the frame supports give an approximate position (any hole may be used) for mounting the upper horizontal mounting bar onto the handlebar.
- Page 11 28.5" Parallel Frame Side Marked to the support ground with endcap Put an adjustable wrench on the partially flattened end of the horizontal mounting bar and use it as a lever to rotate the lower horizontal mounting bar into position. Sometimes the upper horizontal mounting bar must be rotated with the lower bar and 1 /4"-20 locknuts [F].
- Page 12 4. UB 5. UF either side of the inside of the cab over the Frame support side frame as shown above. with endcap Step 14: Install the cover Drape the cab cover [8] over the handlebars. Be careful not to scratch the plastic windows. Working from the inside, gradually pull...
- Page 13 Removing your cab. Step C: With the cab fully supported, gently slide In the event that you want to remove your the entire cab and frame up and back, off the snow thrower cab from your snow thrower, lower frame supports. please follow these instructions: Step A: Unclip the two bottom straps from the...
- Page 14 Classic Accessories, Inc 22640 68th Ave S. Tel: (253)395-3900 Kent, WA, USA 98032 Fax: (253)395-3991 Email: customerservice@classicaccessories.com 414-6...
