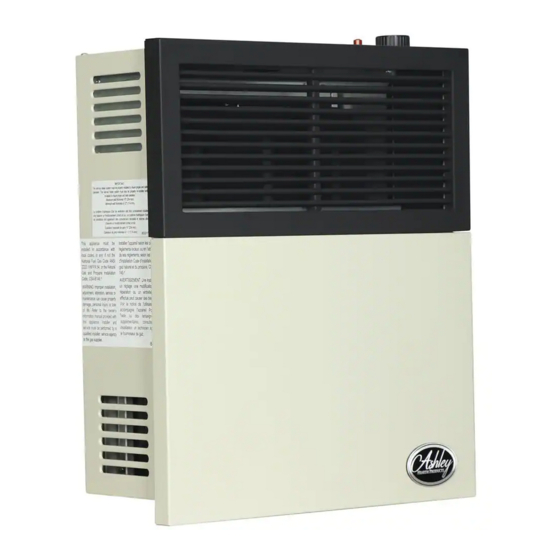

MODELS: DVAG11 / DVAG17 / DVAG30
Warning: If the information in this manual is not followed exactly, a fire or explosion may result causing property
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any phone in your building.
•
Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
•
If you cannot reach your gas supplier, call the fire department.
•
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
This appliance may be installed in an aftermarket, permanently located, manufactured home (USA only) or
mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible
for use with other gases, unless a certified kit is used.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
damage, personal injury or loss of life.
WHAT TO DO IF YOU SMELL GAS
United States Stove Company
PO Box 151, 227 Industrial Park Rd.,
South Pittsburg, TN 37380
PH: (800) 750-2723
www.usstove.com
Ce produit peut vous exposer à des agents chimiques, y compris au monoxyde de
carbone, lesquels sont reconnus dans l'État de la Californie comme causant le cancer et
des malformations congénitales ou autres dommages au fœtus. Pour obtenir plus de
renseignements, veuillez consulter le site www.P65warnings.ca.gov
CALIFORNIA PROPOSITION 65 WARNING:
This product can expose you to chemicals including carbon monoxide, which
is known to the State of California to cause cancer, birth defects and/or other
reproductive harm. For more information, go to www.P65warnings.ca.gov
853277C-4103i
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ashley DVAG17
Summary of Contents for Ashley DVAG17
- Page 1 MODELS: DVAG11 / DVAG17 / DVAG30 INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference. Warning: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
-
Page 2: Requirements For The Commonwealth Of Massachusetts
Requirements For The Commonwealth Of Massachusetts The following requirements reference various Massachusetts and national codes not contained in this manual. For all sidewall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied: INSTALLATION OF CARBON MONOXIDE DETECTORS... -
Page 3: Important For Your Safety
Content This gas appliance must not be connected to a chimney flue serving a separate solid-fuel burning appliance. IMPORTANT FOR YOUR SAFETY • Improper installation, adjustment, alteration, service, or maintenance can cause property damage, personal injury or loss of life. Refer to this manual. •... -
Page 4: Installation Items
6.61" Model DVAG30 (168 mm) (168 mm) Model DVAG17 Model DVAG11 Figure 3 NOTE: A qualified service person must install the heater. Follow all local codes. CHECK GAS TYPE! Use only the type of gas indicated on the rating plate. - Page 5 IN S ID T A IL E R D E C O R N F IX E D C L O S A B LE O P E R F IX E D C L O S A B LE O P E R VENT TERMINAL AIR SUPPLY INLET...
-
Page 6: Installing The Appliance
INSTALLING THE APPLIANCE Separate the hanging bracket from the appliance by removing two screws on the top and two nuts at the bottom. INSTALLING THE HANGING BRACKET ON A NON-COMBUSTIBLE WALL ( I.E., MASONRY BLOCK OR CONCRETE) 1. Draw the position of the hole for the air-vent intake pipe, taking into account the minimum clearances mentioned in figure 4. -
Page 7: Installing The Venting System
4. Place the wall bracket with the heat shield attached into the square hole. Check to see that the bracket is level. If not, you may have to trim the hole you cut to ensure the bracket is level when installed. After leveling the hanging bracket, mark the 4 holes as shown in figure 9 &... - Page 8 The venting system consists of: one injected-aluminum cap (A), one vent pipe (B), one vent-air intake pipe (C), one rod (D), one nut (E), one outdoor mounting plate (F) and one silicon-rubber ring (G) tape (H) insulation (i) (see figure 12). Table 3 Lengths Of Pipes And Rod.
-
Page 9: Gas Connection
Figure 16 UNSCREW TWO NUTS Figure 17 Figure 18 ① ② Gas Piping GAS CONNECTION 1. We recommend using only new black iron or steel pipe. CHECK LOCAL CODES. 2. The gas supply line shall be sized and installed to provide a sufficient supply of gas to meet the maximum demand of the heater without undue loss of pressure. -
Page 10: Operation
6. NOTE: It may be necessary to press for thirty (30) seconds if this is first time heater is Model DVAG 11, DVAG17 and 30 connected to the gas supply.If the knob does not pop up NOTE: Knob cannot be turned from "PILOT" to "OFF"... -
Page 11: Cleaning And Maintenance
Figure 22 Correct main burner flame pattern (top view) Correct main burner flame pattern (top view) Figure 22 Models DVAG17 Correct main burner flame pattern Correct main burner flame pattern Correct pilot burner flame pattern Correct pilot burner flame pattern... -
Page 12: Troubleshooting
Troubleshooting WARNING: Turn off heater and let cool before servicing. Only a qualified service person should service and repair heater. OBSERVED PROBLEM POSSIBLE CAUSE REMEDY Ignitor electrode broken. Replace ignitor electrode. Ignitor electrode not connected to Reconnect ignitor cable. ignitor cable. When ignitor button is pressed, there is no Free ignitor cable if pinched by any metal or tubing. -
Page 13: Service And Maintenance
Turning control knob to HI position Turn control knob to LO position and let warm up for a when burner is cold. minute. Heater produces a whistling noise when Operate burner until air is removed from line. Have gas Air in gas line. burner is lit. -
Page 14: Replacement Parts
Replacement Parts Pilot Assembly Control Knob Piezo-Ignitor Gas Control Valve DVAG11 DVAG11 DVAG11 81304 DVAG11 81303 DVAG17 893041 DVAG17 80808 DVAG17 81305 DVAG17 DVAG30 DVAG30 DVAG30 81306 DVAG30 Front Panel Outdoor Mounting Plate Regulator Orifice 893042 DVAG11 893045 DVAG11 81307... -
Page 15: Service Record
Service Record It is recommended that your heating system is serviced regularly and that the appropriate Service Interval Record is completed. SERVICE PROVIDER Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions. Always use the manufacturer's specified spare part when replacement is necessary. - Page 16 Notes -16-...
- Page 17 How To Order Repair Parts / Commande De Pièces De This manual will help you obtain efficient, dependable service from your heater, and enable you to order repair parts correctly. Keep this manual in a safe place for future reference. When writing, always give the full model number which is on the nameplate attached to the heater.
