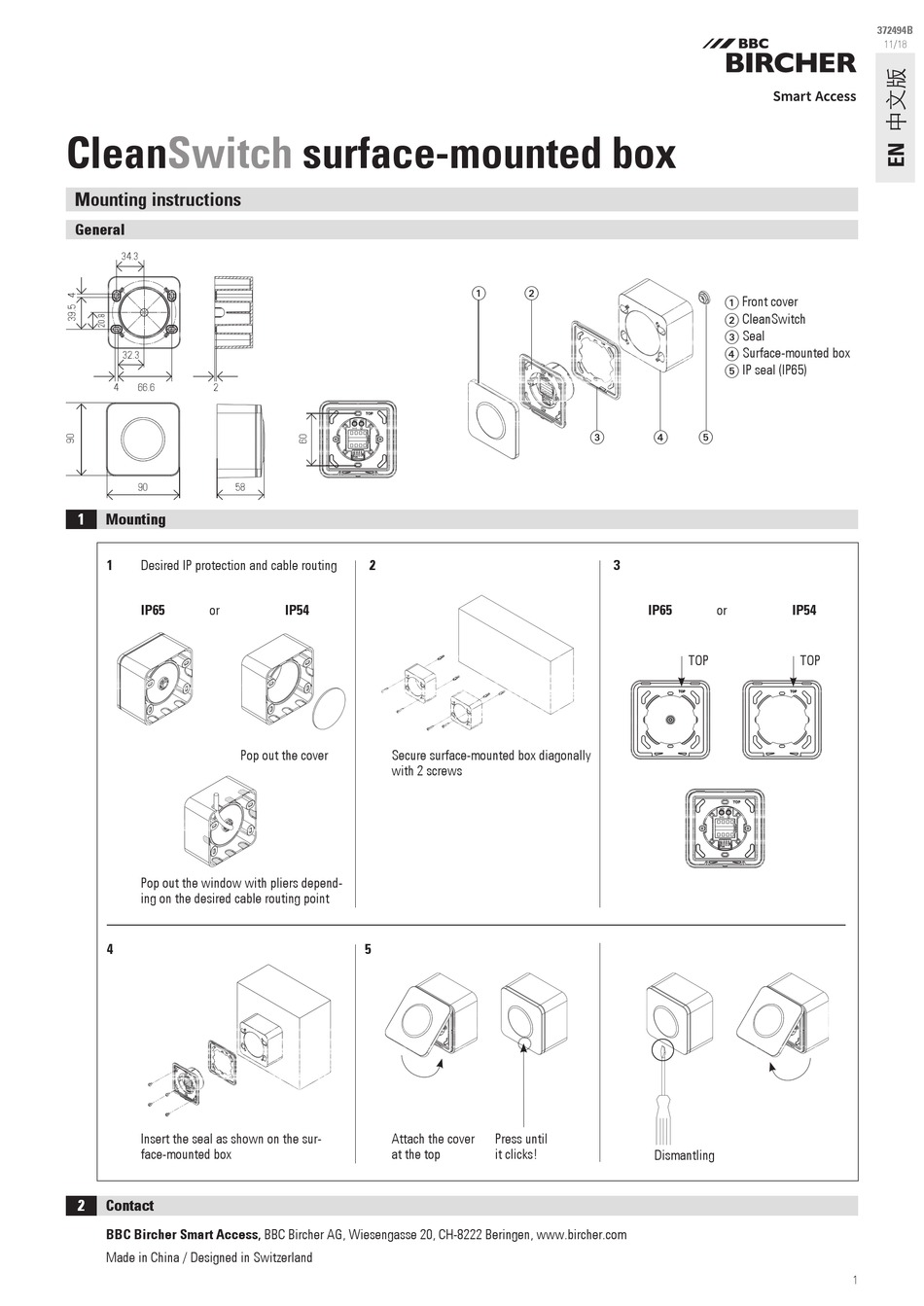

BBC Bircher CleanSwitch Mounting Instructions

Surface-mounted box

Advertisement

Quick Links

CleanSwitch
Mounting instructions
General
34.3
32.3
4
66.6
2
90
58
1
Mounting
1
Desired IP protection and cable routing
IP65
or
Pop out the window with pliers depend-
ing on the desired cable routing point
4
Insert the seal as shown on the sur-
face-mounted box
2
Contact
BBC Bircher Smart Access, BBC Bircher AG, Wiesengasse 20, CH-8222 Beringen, www.bircher.com
Made in China / Designed in Switzerland
surface-mounted box
2
IP54
Pop out the cover
Secure surface-mounted box diagonally
with 2 screws
5
Attach the cover
at the top
3
Press until
it clicks!
 Front cover
 CleanSwitch
 Seal
 Surface-mounted box
 IP seal (IP65)
IP65
or
IP54
TOP
TOP
Dismantling
372494B
11/18
1
