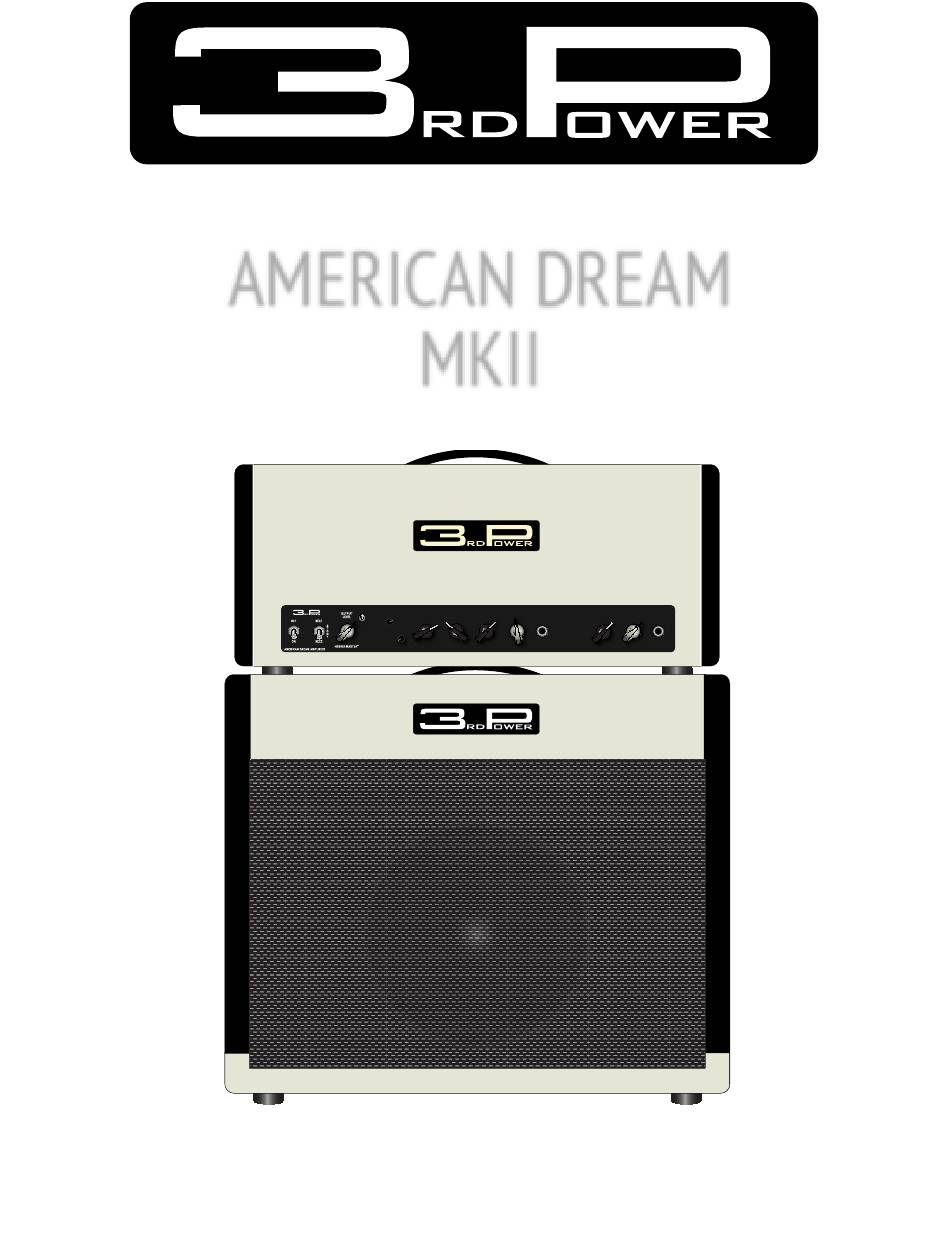

3rd Power AMERICAN DREAM MKII User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
™
AMERICAN DREAM
™
MKII
STAGE
INTENSITY
BASS
TREBLE
VOLUME
TONE
VOLUME
SPEED 2
BLACKFACE
BROWNFACE
STUDIO
SPEED 1
INPUT
INPUT
VARI-BIAS TREMOLO
G U I T A R A M P L I F I E R
U S E R S G U I D E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMERICAN DREAM MKII and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for 3rd Power AMERICAN DREAM MKII

Summary of Contents for 3rd Power AMERICAN DREAM MKII

  • Page 1 ™ AMERICAN DREAM ™ MKII STAGE INTENSITY BASS TREBLE VOLUME TONE VOLUME SPEED 2 BLACKFACE BROWNFACE STUDIO SPEED 1 INPUT INPUT VARI-BIAS TREMOLO G U I T A R A M P L I F I E R U S E R S G U I D E...
  • Page 2 Your 3RD POWER Amplifier is a professional musical instrument amplifier. The information contained herein is current at the time of publication. However, specifications are subject to change without prior notice. PRECAUTIONS & WARNINGS • READ THESE INSTRUCTIONS. • KEEP THESE INSTRUCTIONS.
  • Page 3 MOVING FORWARD... IN 3D Thank you for choosing 3RD POWER as an integral component of your musical journey. Music is a thrilling blend of tone, attitude and technique. When the right combination occurs, magic happens and it’s experienced by everyone.

  • Page 4: Dimensions And Weights

    While it is fairly common to see stomp-box tremolo pedals with two speeds, we believe the American Dream MKII marks the first vacuum tube amplifier to imple- ment two separate, foot-switchable speed controls for an unmatched level of tone and versatility.

  • Page 5: Front Panel

    VARI-BIAS TREMOLO Preparing to Operate your American Dream MKII™ Make certain that all connections are made prior to operating your American Dream MKII Amplifier including power cable, speaker connection, instrument cable and instrument connection. Make cer- tain that all tubes are installed.

  • Page 6: Input Section

    Front Panel: Brownface Channel TONE VOLUME BROWNFACE INPUT Input Section (6) The INPUT jack is where you connect instrument level signals. Volume Control (7) The VOLUME control allows you to adjust the signal level as well as the temperament and over- all character of your instrument’s sound.
  • Page 7 Front Panel: Blackface Channel INTENSITY BASS TREBLE VOLUME SPEED 2 BLACKFACE SPEED 1 INPUT VARI-BIAS TREMOLO Input Jack (9) The INPUT jack is where you connect instrument level signals. Volume Control (10) The VOLUME control allows you to adjust the signal level as well as the temperament and over- all character of your instrument’s sound.

  • Page 8: Back Panel

    Back Panel: 150-- AC Input (16) The AC INPUT socket (TYPE IEC Grounded) is a required connection for operating your DREAM WEAVER™ MKII at 120V (standard USA household electrical power). Mains Fuse (17) The MAINS FUSE requires a 2 AMP slow blow fuse. This fuse protects your amplifier from voltage peaks from your power outlet.
  • Page 9 • Always operate your amplifier with the proper impedance output that matches your speaker cabinets(s). • In all cases, always use a good quality heavy gauge speaker cable (not a shielded instrument cable) to connect your AMERICAN DREAM MKII to the speaker cabinet(s).

  • Page 10: Operation Notes

    150-- Foot-Switch (TRS) Jack (22) The FOOT-SWITCH (TRS) jack of the American Dream MKII allows you to remotely control the on- board Vari-bias tube tremolo effect. Parameters controlled include: Tremolo ON/OFF, and the selec- tion of tremolo Speed 1 or Speed 2.

  • Page 11: Operational Notes

    V7 and V8: Rectifier tube sockets (V7 loaded with Diode Adapter, V8 GZ34 Tube Rectifier) Bias Adjustment Your AMERICAN DREAM MKII comes from the factory biased for 6L6 tubes. Bias adjustments are not intended to be user-serviceable. Attempting to adjust the bias yourself will expose you to very dan- gerous high-voltage electricity that can kill you.

  • Page 12: Limited Warranty

    Incidental or Consequential Damage: In no event will 3RD POWER be liable for any incidental or consequential damages arising out of the use or inability to use any 3RD POWER product, even if a 3RD POWER dealer has been advised of the possibility of such damages or any other claim by any other party. Some states do not allow the exclusion or limitation of consequential damages, so the above limitation and exclusion may not apply to you.
  • Page 13 ™ 3RD POWER Amplification LLC 1307 Jewel Street Nashville, TN 37207 Phone: (615) 945-3393 Web Site www.3rdPower.com Friday, June 5, 2015...
