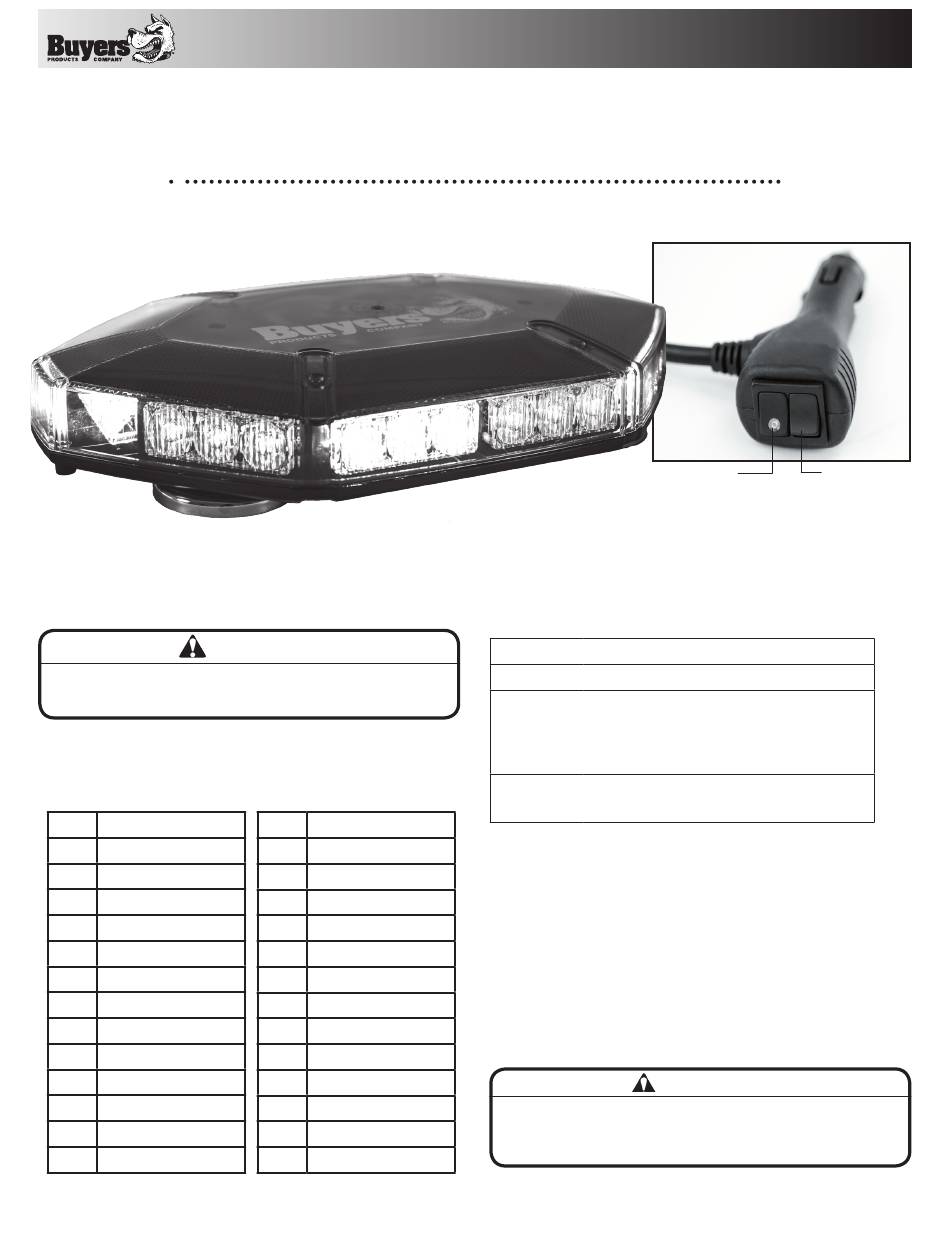

Buyers 8891102 Installation Instructions

8891100 & 8891102
LED Mini Light Bar

Flash Patterns

Momentarily push the Flash Pattern button:
• Once for next pattern
• Quickly 3 times for reset to FP#1
WARNING
Do not look directly into LEDs while in operation; this may
cause momentary blindness and/or eye damage.
FP# Flash Patterns
1 Kit Scan (split)
2 Outside-In Single
3 Outside-In Ultra
4 Side-by-Side Single
5 Side-by-Side Ultra
6 Random
7 Single (split)
8 Double (split)
9 Quad (split)
10 Quint (split)
11 Mega (split)
12 Ultra (split)
13 Single-Quad (split)
Note: This unit is not factory set to FP#1

Installation Instructions

FP# Flash Patterns
14 Single H/L (split)
15 Single (all)
16 Double (all)
17 Quad (all)
18 Quint (all)
19 Mega (all)
20 Ultra (all)
21 Single-Quad (all)
22 Single H/L (all)
23 Single Cross
24 Ultra Cross
25 Rotator 1
26 Rotator 2

Wiring Code

RED: To +VDC (fuse @ 10A)
BLACK: To Chassis Ground (-)
WHITE: For Simultaneous or Alternating Flash
-Group 1 Units: (Wiring - WHITE connected to RED) will flash
together
- Group 2 Units: (Wiring - WHITE not connected to RED) will flash
together
*Group 1 Units will alternate with Group 2 Units
YELLOW: Flash Patterns & Synchronization
-Connect YELLOW wires of all head together for synchronization
*All heads must be set to the same pattern
WARNING
It is not recommended to use magnetically mounted warning
devices on the exterior of vehicles in motion. Usage is at the
sole risk and responsibility of the user.
www.buyersproducts.com
Phone (440) 974-8888
Fax 800-841-8003
flash pattern
on/off
selector
