Summary of Contents for TEFAL IXEO POWER QT20 Series

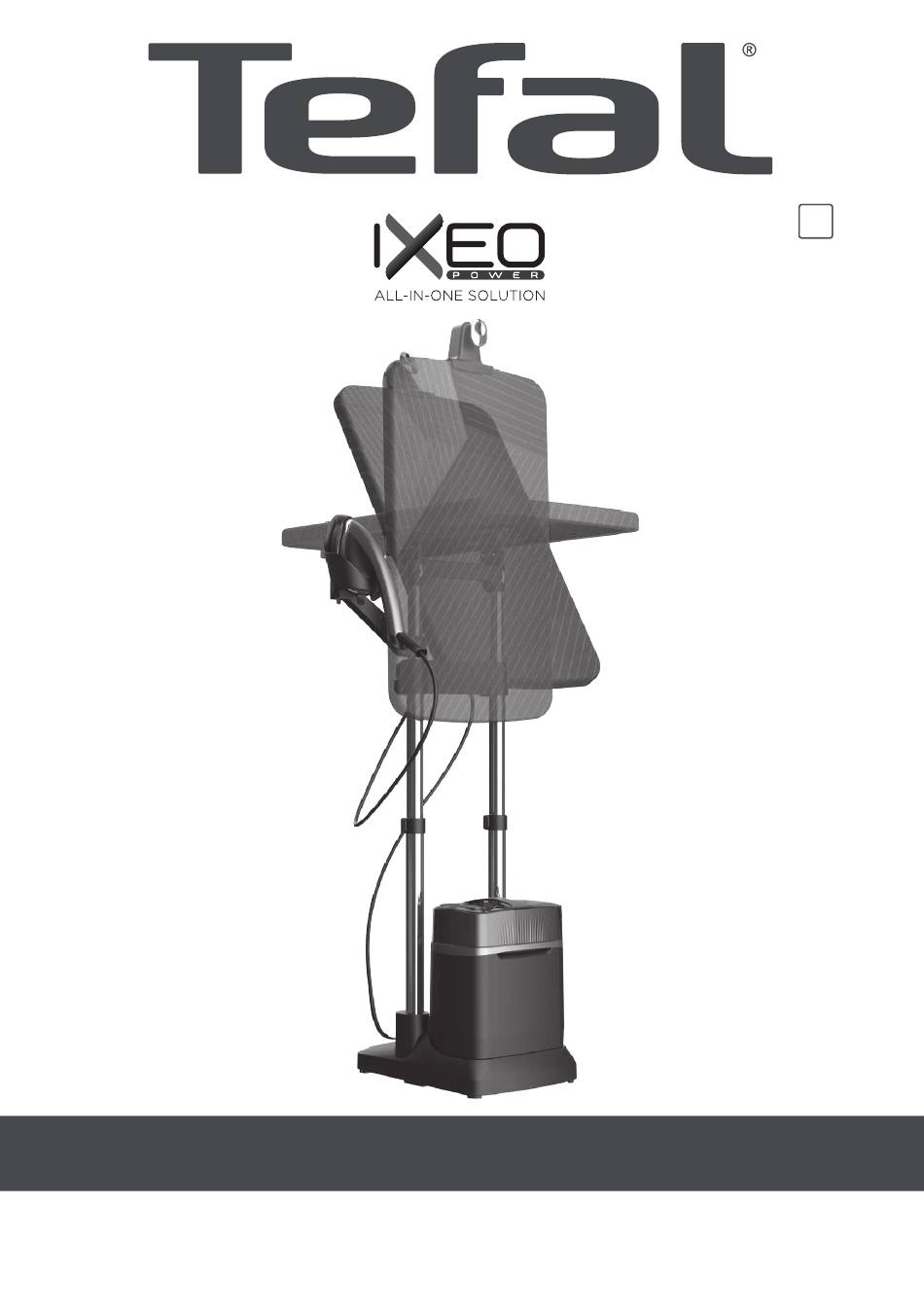

- Page 1 IXEO POWER QT20XX www.tefal.com 1820002720...
-
Page 2: Important Guidelines
Important guidelines Safety information • Read the instruction manual carefully before using your appliance for the first time. This product is designed for domestic and indoor use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. - Page 3 • The surfaces of your appliance can reach very high temperatures when functioning, which may cause burns. Do not touch the hot surfaces of the appliance (accessible metal parts and plastic parts adjacent to the metallic parts). • Never leave the appliance unsupervised while it is connected to the mains.
- Page 4 – into a mains circuit with voltage between 220 V and 240 V (Alternating current only), – into a socket outlet with an earth connection. Faulty connection can cause irreparable damage to the appliance and will invalidate your guarantee. If you are using an extension cord, ensure that it is correctly rated (16A) with an earth connection, and is fully extended.
-
Page 5: Product Presentation
1. Product presentation... -
Page 6: Before First Use
Product presentation 1. Hanger hook 2. Tilting board 3. Iron rest 4. Iron 5. Steam hose 6. Height lockers 7. Collapsible body 8. Control panel 9. Steam unit 10. Wheels 11. Removable water tank 12. Iron soleplate 13. Steam trigger 14. -
Page 7: First Use
3. First use Incline the board Place your hands on each side of the board, raise it vertically, and tilt it back until you find your desired position. Adjust the board and the iron rest height When the height of the board or of the iron rest needs to be adjusted, unlock the height adjusters. -
Page 8: Product Use
4. Product use Unplug the appliance. Remove the water tank. Fill it, and then replace it. When the water light flashes, please refer to the above instructions, and then, click on the OK button to reboot the light. Put the iron on the iron rest. Plug in the appliance and switch it on. Wait until the light stops flashing. -
Page 9: Steam Boost
Press the trigger until steam comes out. Steam pump may produce some noise during this stage, it is completely normal. Never iron or steam directly on a garment being worn by someone. Steam boost Press the steam trigger three times to activate the steam boost. -
Page 10: Mode Selection
Mode selection To select the desired mode, press the STEAM button. Auto-off 8min After 8 minutes of inactivity, the steam unit will change to stand by mode. 38min After 38 minutes of inactivity, the steam unit will switch off automatically. - Page 11 5. Accessories Use the hanger hook to iron a garment placed on a hanger. Fabric brush Before you remove or attach the brush, switch off the appliance and allow it to cool down completely for approximately 1 hour. Put the steam brush on the iron soleplate. This accessory helps to open the garment fibres for better steam penetration.
- Page 12 6. Removable base Remove the steam unit off its base. Unlock this iron rest by pushing on the inside plastic strip. Remove the iron rest with the iron. Position the iron and its iron rest on the steam unit.
- Page 13 Move around with your appliance. Plug in, switch it on, and wait until it heats up. Always use when steam unit is on the ground, stable. Be careful of heat and steam when using the appliance.
-
Page 14: Product Cleaning
7. Product cleaning Switch off and unplug the appliance. Wait approximately 1 hour to allow it to cool down completely. Clean the soleplate with a damp soft cloth or sponge. Never use abrasive products or surfaces to clean the soleplate. - Page 15 8. Product storing Switch off the appliance. Wait 1 hour to allow it to cool down completely. Empty the water tank. Tip up the board to the vertical position. Lean the whole appliance backwards in order to move & store it away.
-
Page 16: Descaling The Appliance
9. Descaling the appliance When the appliance needs to be descaled, the anti calc light flashes. * Not included...
Need help?
Do you have a question about the IXEO POWER QT20 Series and is the answer not in the manual?
Questions and answers
Что делать если не идёт пар из утюга
If there is no steam coming from the TEFAL IXEO POWER QT20 Series iron, press the steam trigger to activate steam. For steam boost, press the trigger three times. Make sure the appliance is plugged in, turned on, and the light has stopped blinking before use.
This answer is automatically generated
@Илья подключен к сети, на кнопку нажимал 20 раз, вода есть. Пара нет. Что делать?
Как мыть от накипи
When the TEFAL IXEO POWER QT20 Series needs descaling, the anti-calc indicator will blink. Follow these steps to descale the appliance:
1. Unplug the appliance.
2. Remove the water tank.
3. Empty the water tank.
4. Follow the specific descaling instructions provided in the manual (not fully detailed in the context).
Ensure proper maintenance by regularly checking the anti-calc indicator and performing descaling when needed.
This answer is automatically generated
не двигаются крепежи по металлической трубке, даже при открытых замках
The fasteners on the TEFAL IXEO POWER QT20 Series may not move along the metal tube even when the locks are open because the board may go down when unlocking the poles. It is necessary to hold the board during adjustments to ensure smooth movement.
This answer is automatically generated
не двигаются крепежи по металлической трубе
