Climate
King
READ INSTRUCTIONS CAREFULLY:
instructions. Keep these instructions in a safe place for future reference. Do
not allow anyone who has not read these instructions to assemble, adjust or
operate the heater.
This product is only suitable for well insulated spaces or occasional
use.
Model: HCK-TP15; HCK-TP30
1.1 This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children should not play with the appliance. Cleaning and user
maintenance should not be undertaken by children without supervision.
1.2
WARNING: In order to avoid overheating, do not cover the heater.
1.3 Children under 3 years old should be kept away from the appliance unless
continuously supervised.
1.4 Children aged from 3 years and less than 8 years should only switch the
appliance on/off provided that it has been placed or installed in its intended normal
operating position and they are supervised or given instruction concerning use of
the appliance in a safe way and understand the hazards involved. Children aged
from 3 years and less than 8 years should not plug in, adjust and clean the
appliance or perform user maintenance.
1.5 CAUTION-some parts of this product can become very hot and have the
potential to cause burns if touched. Particular care must be given where children
and vulnerable people are present.
1.6 Disconnect the heater from the mains power supply before servicing or
performing any cleaning. Servicing and maintenance must only be undertaken by
a qualified electrician or service agent.
User Manual and
®
Operating
Instructions
Read and follow all
1
INDUSTRIAL
FAN
HEATERS

Advertisement

loading
Need help?

Need help?

Do you have a question about the HCK-TP30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Climate King HCK-TP30

  • Page 1 This product is only suitable for well insulated spaces or occasional use. Model: HCK-TP15; HCK-TP30 1.1 This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of...
  • Page 2 3.1 Housing made of heat-resistant powder coated steel plate. 3.2 Supplied with industrial socket installed in the heater. A 3-Phase cable (not included) of the correct rating fitted with a suitable connector is required to connect the HCK-TP15 and HCK-TP30 to the power supply.
  • Page 3 Type of Power cord Plug Current Pin Layout HCK-TP15 H07RN-F 4G2.5mm2 3P+N+E HCK-TP30 H07RN-F 4G6.0mm2 3P+N+E 3.3.2 When connecting the power cable to the appliance, open the protective lid in the direction shown below. Figure2 3.3 After use shut down the appliance and remove the plug from the supply before...

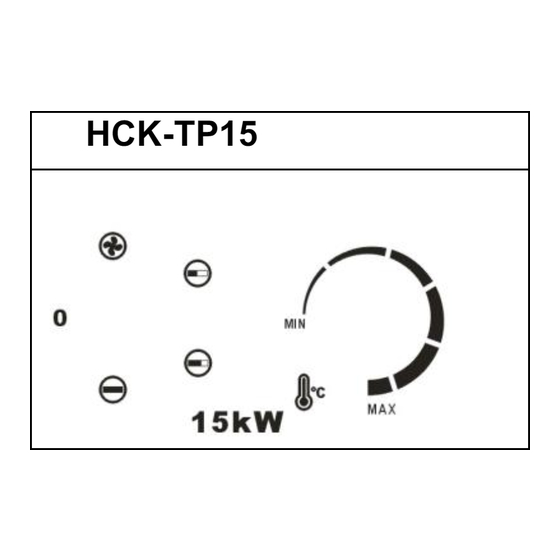

  • Page 4 Description of Control Panel HCK-TP15 Left Dial: Selector with heat setting Right Dial: Thermostat dial HCK-TP30 Left Dial: Thermostat dial Right Dial: Selector with heat setting 5. Safety 5.1 Before use, review the marking on the power cord. Depending on the power...
  • Page 5 It is the responsibility of the owner and the operator to read, understand and comply with the following: You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and any other connectors for wear or damage.
  • Page 6 5.2.3 Do not cover any part of the fan heater. 5.2.4 The fan heater must not be located immediately under a wall socket. 5.2.5 Do not connect the fan heater using an on/off timer or other equipment which can automatically switch the device on. 5.2.6 The fan heater must not be placed in rooms where flammable liquids or gases are used or stored.
  • Page 7 temperature. 6.5 Once the room reaches the required temperature, turn the thermostat dial counter-clockwise until the thermostat clicks and the heating element switches off. Leave the dial in this position to maintain the room temperature. Once the temperature drops, the heating element will switch on again to maintain temperature.
  • Page 8 The air inlet grill is blocked Check the air inlet and remove any blockage. Keep the heater away from articles like curtains, plastic bags, paper and other items which can block the air inlet. The heat selector dial was Turn the switch to a heat not set to a heating setting setting The thermostat has...
  • Page 9 HCK-TP15 Model identifier(s): Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only (select one) Nominal heat Pnom Manual heat charge control with integrated thermostat [no] output Minimum heat Pmin Manual heat charge control with room and/or outdoor [no] output (indicative) temperature feedback...
  • Page 10 HCK-TP30 Model identifier(s): Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only (select one) Nominal heat Pnom Manual heat charge control with integrated thermostat [no] output Minimum heat Pmin Manual heat charge control with room and/or outdoor...
  • Page 11: Service / Warranty

    This warranty is in addition to, and does not affect, your statutory rights. If you have any problems with this product, please in the first instance call the retailer from whom you purchased it. Climate King Cottage Stores LLP 7 Harris Drive...
