Kidde SMK23RU Installer's Manual

1201-7213-00(SMK23RU)_V1:_

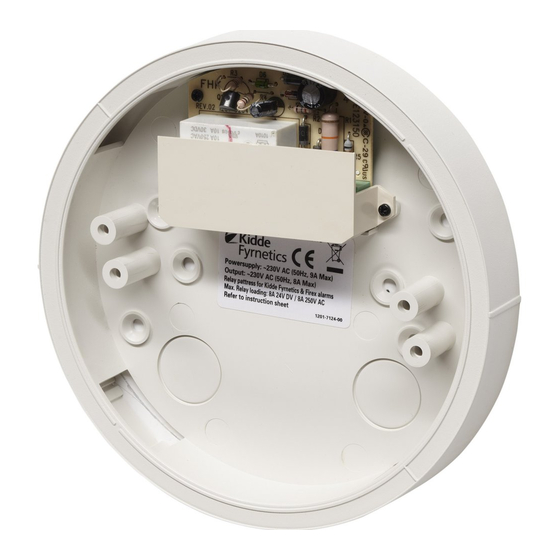

SMK23RU Relay Pattress
Operation voltage:
Output:
Relay rating:
(resistive load)
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice.

Application

• This surface mount relay pattress is for use with
Kidde Fyrnetics & Firex, Hard Wired Smoke &
Heat alams, where surface cabling is being used,
such as in retrofit applications. It can be used, via
a suitable relay control, to trigger auxiliary
devices such as door closers, warning lights,
horns, Warden call systems etc.

Usage

• This is designed for installation by a qualified
electrician, in accordance with the current IEE
regulations. Failure to install correctly can result
in a fatal shock or fire hazard.
• Alarms must be connected direct to the Consumer
Unit on a separate circuit – see current Wiring
Regulations.
• Knock-outs on the underside and edge of the
pattress provide flexibility of cable entry, for ease
of use. A small rib on the edge of the pattress
lines up with a mark on the alarms base plate, to
ensure correct alignment.
• Site and select alarm type in accordance with
manufacturer literature/manual shipped with
alarm. Also refer to Building Regulation
requirements if applicable, plus BS5839 Pt 6.
• Isolate mains power before commencing work.
• Never remove/refit the cable harness whilst mains
power is present.
• Crossing line and neutral connections or line and
interconnect connections will fatally damage all
interconnected alarms invalidating the guarantee.
• Never Meggar Test an installation, without
disconnecting any connected alarms (this can
permanently damage the alarm and invalidates
the guarantee).
2010.2.26 5:33 PM
Surface Mount Pattress For KiddeFyrnetic & Firex models:
1SF23/9HI,1SF23/9HIR, 2SF23/9HI, 2SF23/9HIR,3SF23/9HI,
230V AC 50Hz
230V AC (50Hz 8A MAX)
8A 24V DC / 8A 250V AC
Page 1
Surface Mounting Kit
Installer's Guide
3SF23/9HIR, 4870, 4881, 4973, 4985, 4899, 4892.
4.5 V ~12V
DC trigger voltage:
Response time: 500 msec maximum
Release time: 150 msec maximum
• All interconnected alarms must be powered off
the same fuse/circuit breaker.
• Total cable length between alarms must not
exceed 250m (273yds) and be 1.5mm in
diameter, 3 core and earth (BS6243Y).
The apparatus shall not be exposed to dripping
or splashing.
An all pole mains switch with a contact separation
of at least 3mm in each pole shall be incorporated
in the electrical installation of the building.
This apparatus should be connected to the mains
with a protective earthing connection.
The intended condition of use prevents this
apparatus from being accessed by children.

Important Notes

• Up to 23 Mains powered Kidde Fyrnetics &
Firex Smoke or Heat interconnectable alarms
may be wired into this relay unit.
• Any devices hung off this relay must not give
an alarm state until relay contacts have been
activated for at least 200 milli-seconds.
• All alarms with secondary power back-up
continue to function, even if there is loss of
mains power, but this relay will not be able to
function – it requires a healthy 230V supply.
• By default, this relay will not reset until alarm
ceases to sense smoke/heat that has caused the
alarm to trigger.
• As in illustration 1, bring mains cabling into
pattress terminal block via knock-out selected
and fix pattress to ceiling with 2 screws.
(If using dry lining box, select appropriate holes
on pattress and secure with machine screws.)
• Connect flying leads on alarm cable harness to
appropriate terminals and ensure polarity is
correct.
• Install and test alarm by following guidance in
Installer Manual of alarm.
