Qualisports Beluga Manual

This is a precision instruction ,please make sure you read this carefully before you try your first ride.
If you doubt about any information inside this insturction,please contact us or your local distributer .
Meet your Ebike
1
2
3
4
5
6
7
Paremeter
Product name: Beluga
Model name: QSEB 03
Size: 1660*640*1180mm
Folded size: 900*550*750mm
Wheel base: 1100mm
Net weight: 28.5kg
Range: 100km
Max. load: 150kg
Max. speed: 25km/h
Charging time: 7 Hrs
Battery type: Samsung Lithium-ion
Battery capacity: 36V 14Ah
Noise : ≤ 62 dB(A)
MANUAL
23 8 9 10
Motor : MXUS 350W brushless geared DC motor
Rated output power: 350W
Motor efficiency: ≥78%
Rated RPM: 310±10r/min
Rated voltage: 36V
Max torque: 40N.m
Overcurrent protection: 15±1A
Low-voltage protection: 30±1V
Kwh: ≤1.2Kw.h
Modes: 5 levels
Tire diameter: 20 inch
Frame: 20 inch 6061 Al-Alloy foldable
Front fork: 20 inch 6061 Al-Alloy
21
22
11 12 13
20

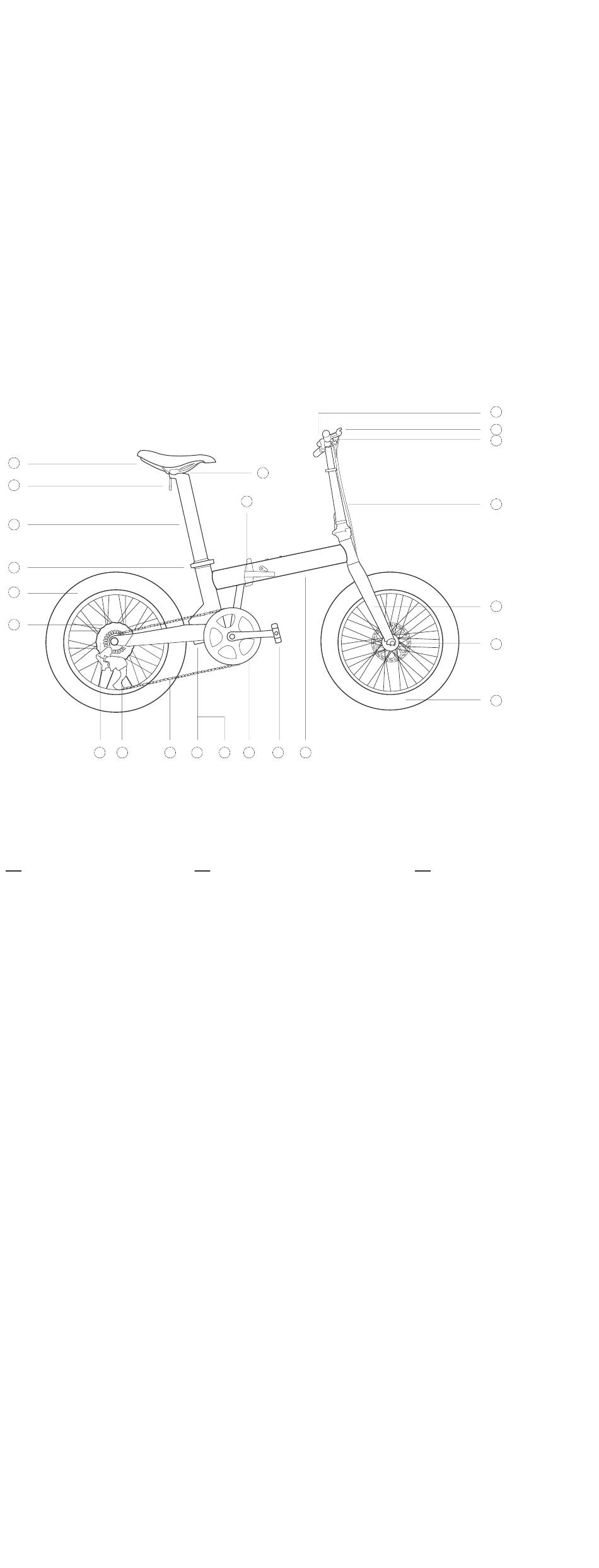

1 saddle
2 rear reflector
19
18
3 seatpost battery
4 seatpost clamp
5 rear wheel
6 rear disc brake
17
7 motor
8 chain
9 controller
10 power interface
11 chain wheel
12 folding pedal
13 frame
16
14 front wheel
15 front disc brake
16 front fork
15
17 folding head stem
18 handlebar
19 brake lever
14
20 LCD display
21 charging port
22 folder
23 deraillew
Brakes: 160mm disc brakes
Rim: 20 inch Al-Alloy 12G36H
Tire: Kenda 20*4.25
Chain wheel: Prowheel 52T
Free wheel: Shimano 14-28T
Derailleur: Shimano 7 speed
Chain: KMC
Handle bar: Promax
Display: Kunteng LCD
Controller: Kunteng sine wave FOC
Brake levers: Al-Alloy e-bike lever
Saddle: KNUS
Pedal: foldable pedals
