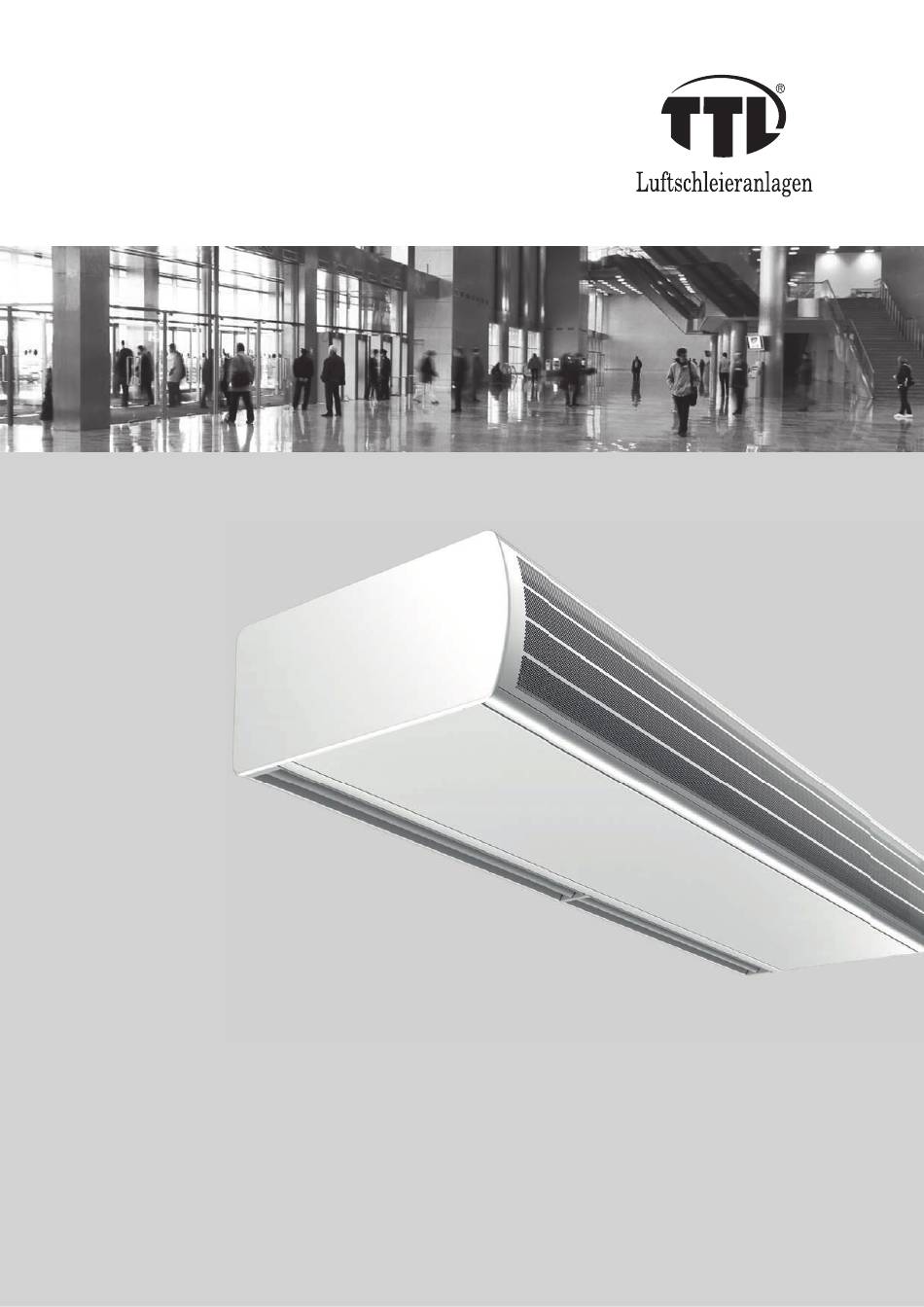

- Page 1 TTL-ORBIS TTL-TWIN Air curtain systems Assembly and operating instructions Translated English version...
-
Page 2: Table Of Contents
11. Maintenace 12. Fault analysis and remediation, measures and risks Imprint Assembly and operating instructions for Air curtain systems type TTL-ORBIS and TTL-TWIN Translated English version 01 Manufacturer: TTL Torluftschleier GmbH 1. Edition October 2016: 1.500, printed at chloreene-free paper Reprint, also excerpts, only with written authorization. -
Page 3: Imprint
Observe notes in the user instructions! 2.2 Proper use Air curtain systems prevent the exchange of air in open doors. The TTL air curtain systems types ORBIS and TWIN can be mounted over doors – on ceiling or wall – or laterally Information and notes on installation options of air curtain systems must be read and observed. - Page 4 Any other use is not considered intended use, and is therefore not permissible. This parti- cularly includes use as dryer. In such a case, TTL Torluftschleier GmbH does not accept any Assembly, disassembly, start-up, repair and changes of and to the air curtain system must only may only take place following consultation with the manufacturer or by TTL employees.
-
Page 5: Assembly
Air curtain systems ORBIS / TWIN 4. Transport, packaging, storage to the forwarder as appropriate. If in doubt, the air curtain device should not be used in the event of any damage. Packaging serves the sole purpose of protecting the air curtain device during transport to the place of use. - Page 6 Air curtain systems ORBIS / TWIN 5.1.1 Wall mounting brackets are not available for the air curtain types ORBIS -8/HE, ORBIS brochures. Type ORBIS -5/LNS Width ORBIS 100 ORBIS 150 ORBIS 200 ORBIS 250 1200 ORBIS 300 • • • •...
-
Page 7: Fitting With A Ceiling Mounting Kit
Air curtain systems ORBIS / TWIN 5.1.2 Fitting with a ceiling mounting kit 1 Thread M8 for ceiling mounting 2 Air intake grate foldable 3 Maintenance flap 5 Electrical connection 6 Secundäry air outlet, outside oriented Types ORBIS -5/8/LNS/HE and TWIN -5/LNS/HE, Height of case H = 300 mm ORBIS TWIN ORBIS TWIN... - Page 8 Air curtain systems ORBIS / TWIN Types ORBIS -10/15/LNX and TWIN -15, Height of case H = 400 mm ORBIS TWIN ORBIS TWIN ORBIS TWIN ORBIS/TWIN 1251 1530 ORBIS/TWIN 1251 1530 ORBIS/TWIN 1251 1530 ORBIS/TWIN 1251 1530 1202 ORBIS/TWIN 1251 1530 TWIN -5/LNS/HE...
- Page 9 Air curtain systems ORBIS / TWIN 5.1.3 Type ORBIS -5/8/LNS/HE ORBIS -10/15/LNX • Fix the stand base, unless completed by factory, on the stand side of the air curtain device. • • Save the stand base with screw nuts. •...
- Page 10 Air curtain systems ORBIS / TWIN Not for air curtains with electric heating. Caution: Risk of hot surfaces or liquids! Risk of burning or scalding. Switch off heating before, close water curcuit, cool down for at least 30 minutes! Heating and voltage connections are always situated opposite and depending on the design at the right or left side.
- Page 11 Air curtain systems ORBIS / TWIN The air curtain systems ORBIS und TWIN are equipped with a Vario connection point Variable heating connections sideways or on top Because of reasons of appearance the air curtain systems will be delivered with closed side •...
- Page 12 Air curtain systems ORBIS / TWIN • on the valve body • Lever out the blind plug on the top side or on the side panel and unscrew the two neightboring screws. return • Put the sensor panel at this place and screw down it with these screws.
- Page 13 • Open the cover plate of the electronic unit with a Phillips screwdriver. – air intake underside – are equipped with the TTL easy-klick locking system and secured against unintended swing out by an safety catch with arrester hook. Every grid is secured if the air curtain system is equipped with multiple air intake grids.
- Page 14 Air curtain systems ORBIS / TWIN Closing: • Fold the air intake grate till the safety catch reaches the hook notch. • Insert the safety catch into the hook notch and close the air intake grate at once. The hook nose of safety catch must snap into the hook notch.
- Page 15 Air curtain systems ORBIS / TWIN 3-phase-alternative current connection With all connecting modalities: • Lead the power cables through one of the rubberised ducts. • Remove the insulation of the cable ends. • Stick the earth, neutral and positive cables into the correspondingly marked free connec- tion points.
-
Page 16: Start-Up
Air curtain systems ORBIS / TWIN 6. Start-up Before start-up, the following checks must be carried out: • • Power consumption of the fans corresponds to the details on the rating plate. • All safety components, such as the air intake grate, covers and touch guard are properly assembled. -
Page 17: Service
Air curtain systems ORBIS / TWIN 9. Service TTL factory service. 10. Cleaning Caution: Risk posed by hot surfaces! Risk of burning. Before cleaning, switch off the heating and the air curtain system and allow Warning: Sharp or pointy edges. -
Page 18: Fault Analysis And Remediation, Measures And Risks
Air curtain systems ORBIS / TWIN 12. Fault analysis and remediation, measures and risks odours, blowing of fuses or triggering of protective mechanisms, leakage of heating media, Fault Possible cause Remedy 1 LED on circuit Jumper is incorrectly inserted to the 1 connection: insert jumper. - Page 19 In the event of any questions, please contact the manufacturer at the address above. TTL GmbH reserves the right to undertake any change or improvement to parts or their accessories without the obligation to update earlier products and existing documentation.
- Page 20 TTL Torluftschleier GmbH Fabrikstraße 3 • 73650 Winterbach Fon +49 (0) 71 81 / 40 09 - 0 Fax +49 (0) 71 81 / 40 09 - 10 info@luftschleier.de • www.luftschleier.de...
