Summary of Contents for Extech Instruments BR90

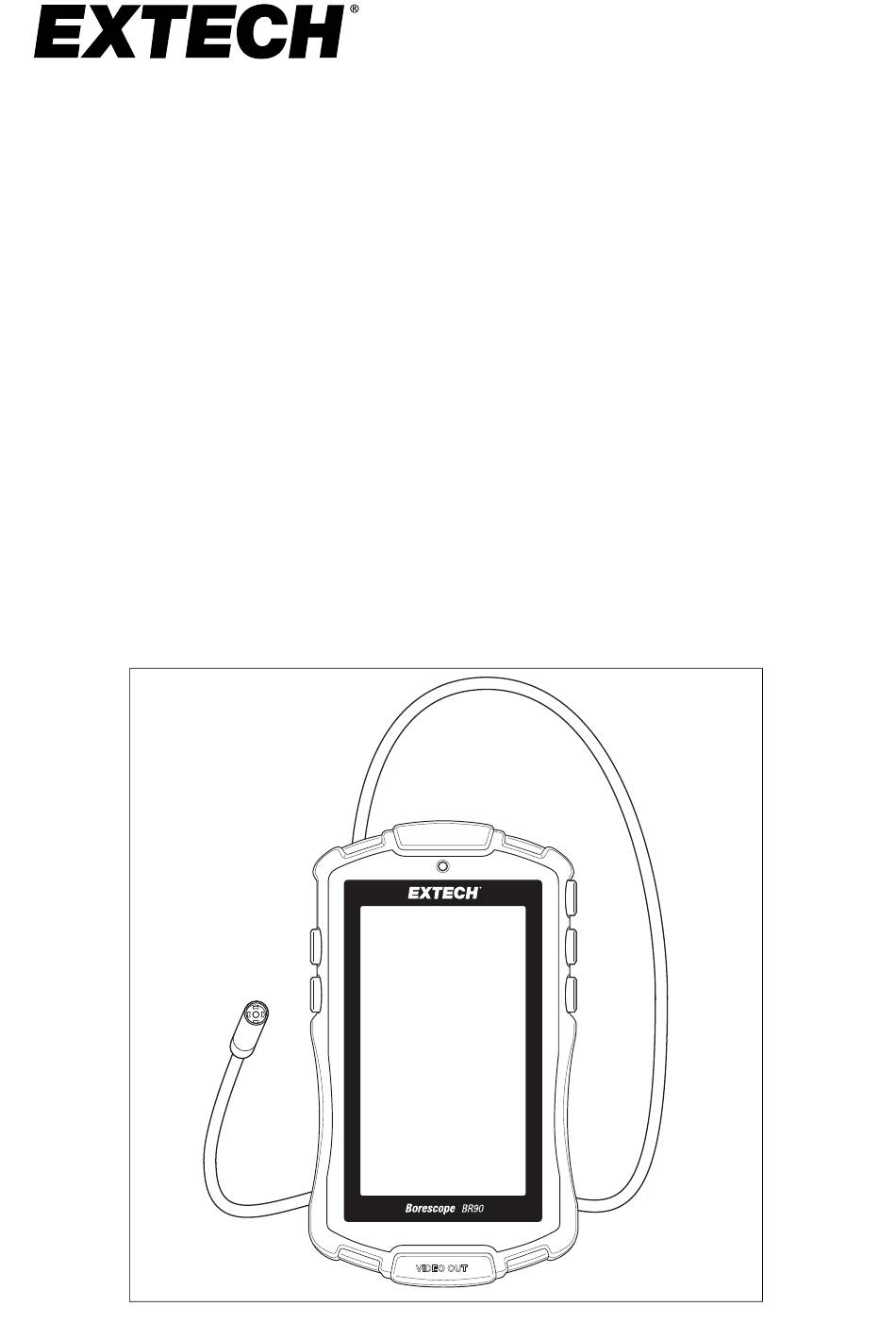

- Page 1 USER MANUAL Compact Borescope MODEL BR90...
- Page 2 Table of contents 1 EN-US English ................1 #NAS100023; r. AC/63396/63396; en-GB...
- Page 3 Thank you for selecting the Extech BR90 Compact Borescope. This device provides real-time video monitoring and is ideal for inspecting the interior of pipelines, conduits, and other narrow spaces. The BR90 is useful in the instal- lation of appliances, electronic equipment, fixtures, and is handy for vehicle troubleshooting and maintenance.
-
Page 4: Product Description
Note: Accessories, battery compartment, and camera cable storage are not pictured in Figure 1. These items are pictured in later sections. 1.3 PACKING LIST The BR90 package contains the following equipment: • BR90 Borescope • User Manual • 4 x AA batteries •... -
Page 5: Operation
1.4 OPERATION 1.4.1 Battery Installation The BR90 is powered by four 1.5V AA batteries. To install the batteries, open the rear battery compartment using the latches as shown Figure 2 (item 1). Observe correct polarity when installing batteries. Ensure that the battery compartment is completely closed before use. - Page 6 EN-US English cable as required and snap the housing shut. To store the cable after use: open the housing, coil the cable inside the housing, and snap the housing closed. 1.4.4 Accessory Installation Place the single hook (B) or mirror (A) into the hole on the camera lens as in- dicated by the arrow in the diagram below, and then push the attachment fix- ture (C), as shown below, to secure it.
-
Page 7: Safety Considerations
2. The camera cable is waterproof (IP67) but the main instrument is not. Please protect the main instrument from liquid and moisture. 3. Remove the batteries when the BR90 is to be stored for extended periods. 4. Disposal: Do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment. -
Page 8: Specifications
EN-US English 2. This device must accept any interference received, including interference that may cause undesired operation. WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 1.7 SPECIFICATIONS Camera diameter 8 mm (0.3 in.) Image sensor... -
Page 9: Two Year Warranty
EN-US English 1.8 TWO-YEAR WARRANTY FLIR Systems, Inc. warrants this Extech brand instrument to be free of defects in parts and workmanship for two years from date of shipment (a six- month limited warranty applies to sensors and cables). To view the full war- ranty text please visit: https://www.extech.com/warranty.
