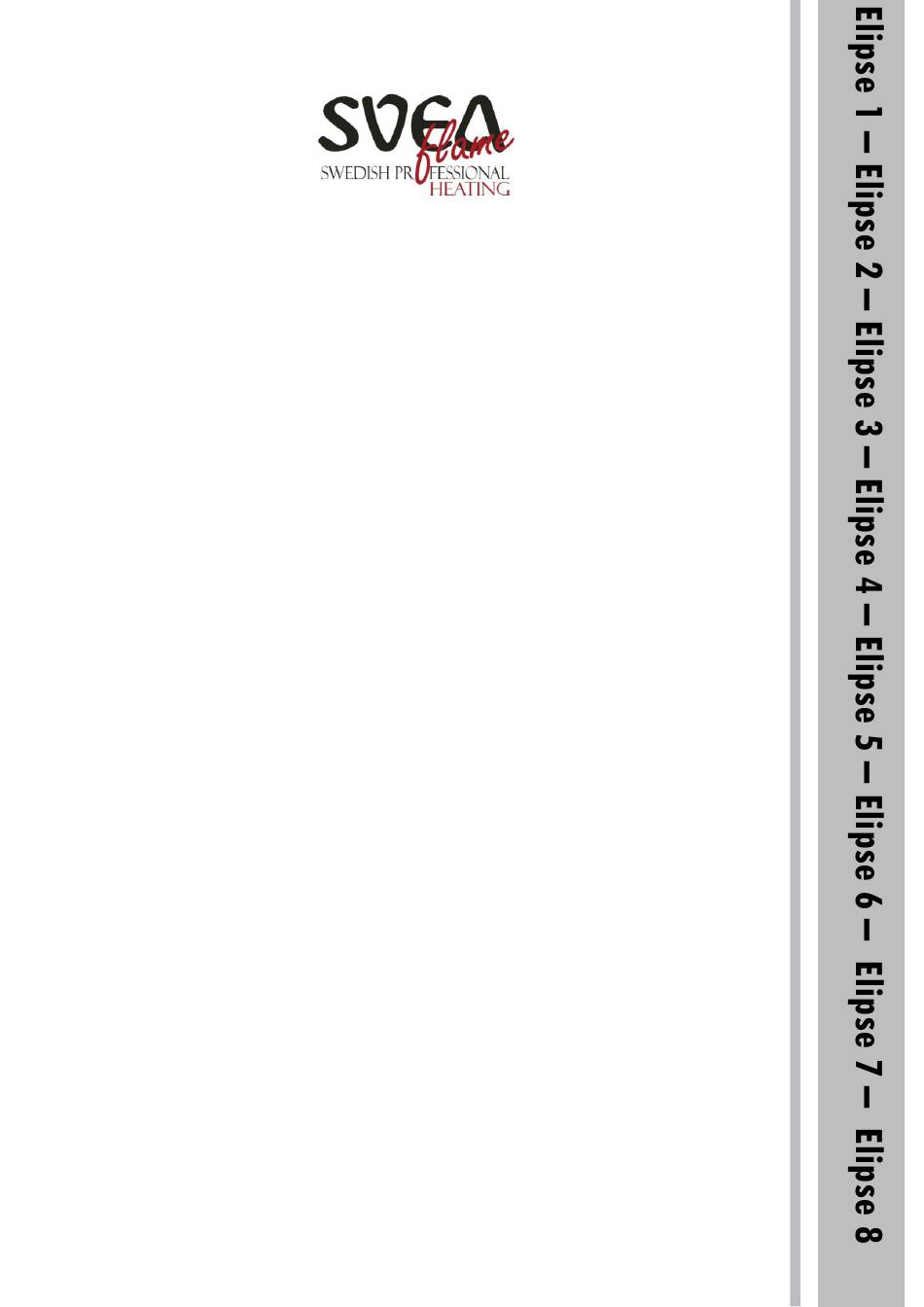

- Page 1 Instructions for assembly and ELIPSE SERIES Elipse 1 Elipse 2 Elipse 3 Elipse 4 Elipse 5 Elipse 6 Elipse 7 Elipse 8 Elipse 9 Elipse 10 Elipse Low Base Tisa Konstruktion HB Utgåva 1.2015SF...
-
Page 2: Dear Customer
Dear customer, TISA Konstruktion only offer high quality products with pleasing design and reliable operation, For us, safety and high manufacturing standards are the most important and we ensure a long life product with high efficiency and good heating economy. Even the best stoves require good handling and regulare care, based on information and know-how. - Page 3 CONTENS General..........pages 4-5 -manufacturer s assurance-planning application -inspektion -guarantee -chimney -distance from combustible surfaces -load-bearing structure -fireplace base -what is included -envirinmental approval -transportap attachments -receipt of goods -cool hands -outdoor air connection -fan Assembly..........pages 6-7 -the right location -order of assembly for top connection -ball/plummet stop -connection to existing masonry chimney...
- Page 4 GENERAL Structural support Manufacturor’s assurance A stove with a chimney does not normally require This product has been manufactured in special foundations and can be placed on an accordance with the type approval ordinary floor supported by wooden rafters. If you documentation, of which the instructions for are uncertain, contact a chimney sweep for assembly, use and maintenance form an intrinsic...
- Page 5 Find the collar to the outdoor air supply inside the log compartment. Thestovewillbedeliveredlikethis Receiving of goods The product may have been damaged in transport, although this may not be apparent from the external packaging. It is important that you inspect the stove carefully and report any damage to the transportcompany within seven days.You should note visible damage immediately on...
- Page 6 ASSEMBLY The right location When you are deciding where the stove is to be placed, it is important to soled a central location in your house in order to ensure even distribution of heat. If you are also planning to install a chimney, it is an ad-vantage if the chimney exit point is as close to the roof ridge as possible, since this entails both aesthetic and cost benefits If there is...
- Page 7 Remove the lid from the back of the stove. Elipse 2 in black ,top connected and ready to be inspected by the chimney sweep. Connection to an existing masonry FittheRuecollarfromthetoptothebackofthestove. Fit the Rue collar from the top to the back of the stove. chimney The stove is approved for a rear connection to a chimney with a ½...
- Page 8 DATA Design specifications Color another Glass, ceramic withstands 750°C Door 4 - 5 mm steel sheet Grate cast iron Hearth base vermeculite Hearth lining vermeculite The hearth is approved for a chimney with a ½ brick connection (350°C), and the stove is designed for a chimney drought of at least 12 pa, as provided by a chimney with a minimum length of 3.5 meters and a cross-section of 150-200 (diam.
- Page 9 How to open the door Output control Open the door by pulling the handle towards you When the control is to the right, the primary air feed is fully open. When the control is to the left, the primary air feed is closed. Ash disposal &...
- Page 10 Elipse 1 Height………………………………………..1040 mm Width……………………………………………...500 mm Depth……………………………………………..415 mm Weight……………………………………………...105 kg Flue collar………..……………………………..150 mm Logs…………………………………………………35 cm Elipse 2 Height ………………………………………..1160 mm Width………………………………………………..500 mm Depth……………………………………………….415 mm Weight………………………………………………..107 kg Flue collar………...……………………………..150 mm Logs…………………………………………………...35 cm...
- Page 11 Elipse 3 Elipse 3 Height………………………………………..1290 mm Höjd………………………..1290 mm Width………………………………………………500 mm Bredd………………………..500 mm Depth……………………………………………...415 mm Djup…………………………415 mm Weight………………………………………………109 kg Vikt…………………………..109 kg Flue collar………...……………………………..150 mm Rökrörsdiam………………..150 mm Logs………………………………………………….35 cm Vedlängd……………………..35 cm Elipse 4 Höjd……………………..1505 mm Elipse 4 Bredd………………………...500 mm Height………………………………………..1505 mm Djup………………………….415 mm Width……………………………………………500 mm Vikt…………………………...175 kg Depth……………………………………………415 mm...
- Page 12 Elipse 5 Height……………………………………….1040 mm Width……………………………………….…500 mm Depth………………………………………..415 mm Weight………………………………..………105 kg Flue collar...……………………………..150 mm Logs…….……………………………………….35 cm Elipse 6 Height…………………………….1160 mm Width.………………………………500 mm Depth………………………………415 mm Weight………………………………107 kg Flue collar..…………………..150 mm Logs……..……………………………35 cm...
- Page 13 Elipse 7 Height………………………………..1290 mm Width..………………………………500 mm Depth..………………………………..415 mm Weight---…………………………………120 kg Flue collar..…………………..150 mm Logs………….……………………………35 cm Elipse 8 Height………………………………1505 mm Width--………………………………500 mm Depth………………………………..415 mm Weight..……………………………….175 kg Flue collar..…………………..150 mm Logs……………………………………35 cm Heat stone……………......60 kg...
- Page 14 Elipse 9 Height..…………………………1635 mm Width...………………………………500 mm Depth.………………………………..415 mm Weight..…………………………….177 kg Flue collar..…………………..150 mm Logs……….……………………………35 cm Elipse 10 Height…….………………………1635 mm Width.………………………………500 mm Depth……..………………………..415 mm Weight……………………………….177 kg Flue collar..…………………..150 mm Logs……..……………………………35 cm...
- Page 15 Elipse Low Base Height..........790 mm Width..........500 mm Depth…………………………………..415 mm Weight..........85 kg Flue collar…........150 mm Logs……...........35 mm...
- Page 16 Reduce the combustion rate using the air-feed control (see page 9, Output control). Thevolumeofcombustionairandtheheatoutputdep endonthetypeofwoodused,themoisturecon- tent,thetypeofchimneyandtheflue-draught(chim- neylengthinrelationtothenegativepressureinthebu ilding),Itdoesnottakelongtolearnhowtouseyoursto vetoachievemaximumbenefitandoptimumhea- tingresults The key factors for satisfactory operation of your new stove are proper installation and Fuel replenishment compliance with the user instructions. If you When you put more logs on the fire, you should use the stove in the right manner, it will last for open the door slowly to avoid smoke gusts.
