TBox-1x & TBox-2x

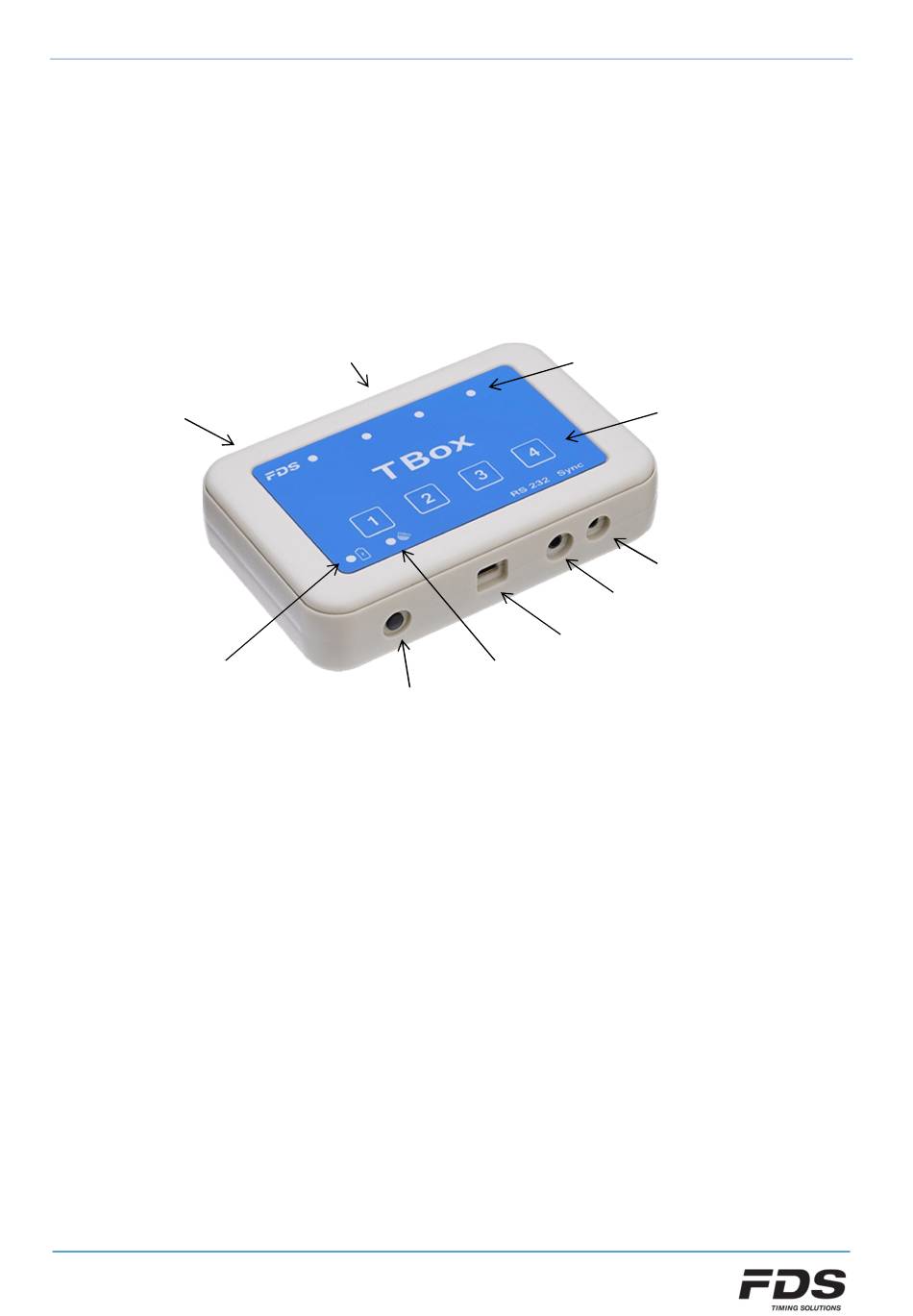

1. Appearance
Ext GPS antenna
(TBox-2x only)
Power Status LED
The TBox-Standard is a compact and well equipped timing console. Its 4 inputs accept wired
peripherals like photocells or other starting devices.
October 2019 - Version EN 1.4
www.fdstiming.com
TBOX-TANDARD
4 Jack Inputs
ON/OFF Switch
4 inputs LEDs
4 manual inputs
switches
Sync Jack
RS232 Jack
Mini USB
GPS LED (TBox-2x only)
User manual
Advertisement
Table of Contents
Related Manuals for FDS TBox-Standard Series
Summary of Contents for FDS TBox-Standard Series
- Page 1 TBox-1x & TBox-2x User manual TBOX-TANDARD 1. Appearance 4 Jack Inputs 4 inputs LEDs Ext GPS antenna 4 manual inputs (TBox-2x only) switches Sync Jack RS232 Jack Mini USB GPS LED (TBox-2x only) Power Status LED ON/OFF Switch The TBox-Standard is a compact and well equipped timing console. Its 4 inputs accept wired peripherals like photocells or other starting devices.
- Page 2 TBox-1x & TBox-2x User manual 2. Power ON/OFF The ON/OFF switch has 3 functions: 1) Switch ON / OFF the TBox a) Press briefly the ON/OFF button (0.5s – 1.5s) until the battery status is indicated on the Input’s LED’s 1-4. b) Release the ON/OFF button and repress it within 1 second, and hold down until the 4 inputs LEDs are ON, and the audible beep signal is emitted (provided that the buzzer is...
- Page 3 External power supply and battery charging COM port emulation for RS232 communication and data transfer - Real time of day in many formats (FDS, TAG Heuer, Alge, Seiko) - Configure the TBox-Radio options and parameters (with the app “TBox-Setup”) ...
- Page 4 Jack-Stereo connection 3.5mm. In conjunction with the TBox-Setup, the protocol output can be configured by the user. FDS / TAG Heuer / Alge / Seiko Time of day protocol Serial printer Display Output (TAG Heuer & Alge Protocols)
- Page 5 8. Bluetooth A Bluetooth connection can be established with compatible FDS timing or setup Apps. After power up, the TBox advertises its presence for 2 minutes. During this period the box can be detected and connected by the user App. To re-establish detection after the 2 minute period simply momentarily press the power button to reactivate the Bluetooth advertising process.
- Page 6 TBox-1x & TBox-2x User manual 9. How to update the TBox Firmware Update the firmware is an easy task. No software is required. Copy and paste the “.bin” file to the USB Flash Drive root directory of the TBox. Note that you should have only ONE “.bin” file on the drive. If you want to save the previous “.bin”...
- Page 7 The sale of products, services of goods governed under this publication are covered by FDS’s standard Terms and Conditions of Sales and this product publication is provided solely for informational purposes.
