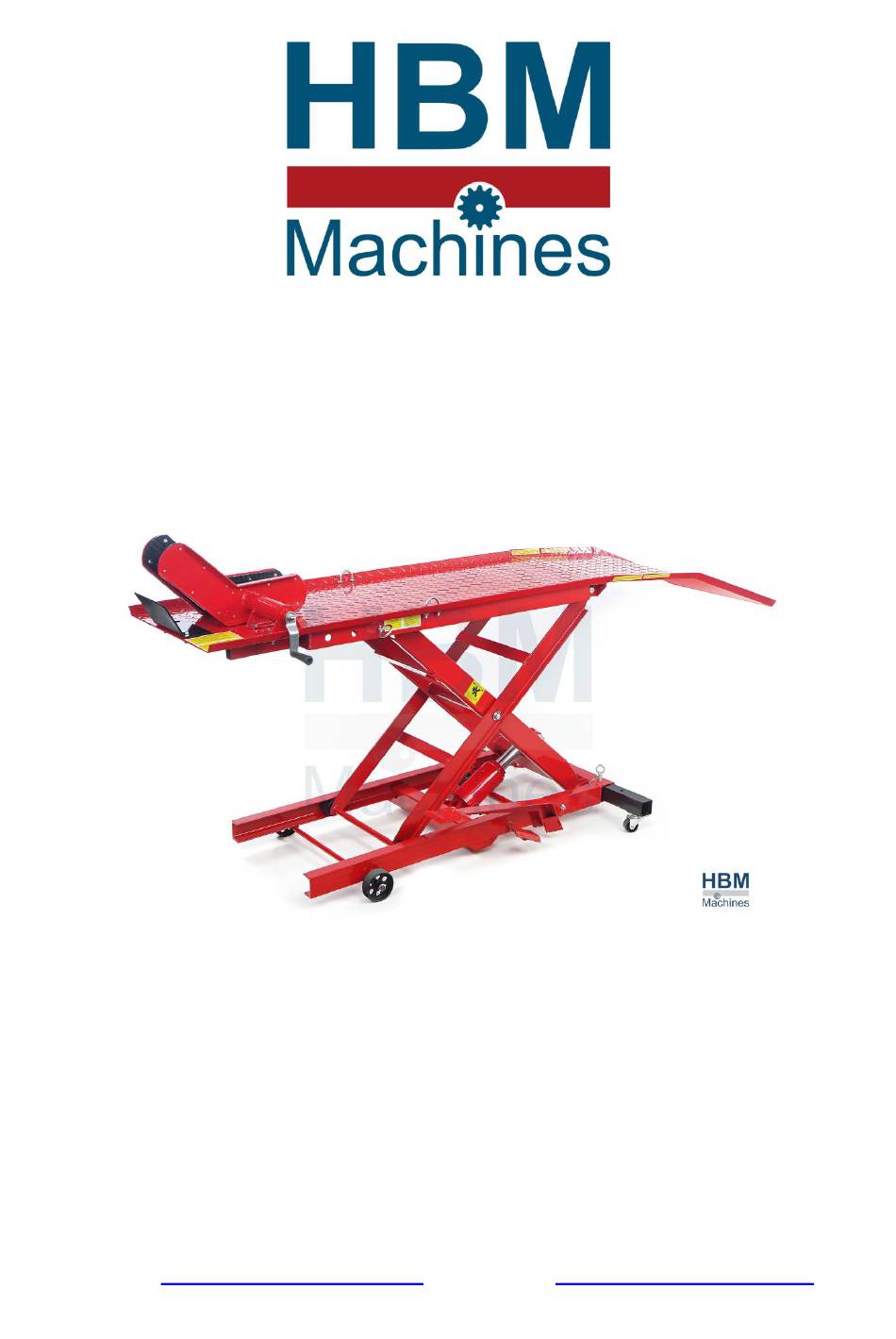

- Page 1 HBM 100 Motorcycle Lift. Rated Capacity: 360 Kg. English Instruction Manual. READ THIS MANUAL CAREFULLY BEFORE OPERATING THE MOTORCYCLE LIFT. HBM Machines B.V. – Nieuwe Esch 1010 - 2841 MJ – Moordrecht Tel : 0182-525468 Fax: 0182-635119 – Web-site: E-mail: info@hbm-machines.com...
-
Page 2: Warranty
Please note that the examples of external causes are not comprehensive. In no case shall HBM Machines be liable for the death or injuries of persons, for damages to goods or to the machinery itself, which was caused by... - Page 3 The cost of returning the machinery or its part to you shall be borne by HBM Mschines. In case of our customer service ascertaining that there is no fault in...
-
Page 4: Safety Measures
SAFETY MEASURES 1. Only well trained personnel is allowed to operate this machine. In case you are unfamiliar with this type of machine, please get educated before you start operating it! 2. All safety shields must remain intact and in place. Removal of safety shields is strictly prohibited. -
Page 5: Installation
INSTALLATION Unpack the crate and check the contents. In case of missing or damaged parts please call HBM Machines. -- Mount the roll-on ramp (31) on the end of the support plateau (32) -- Mount the front wheels (35 and 47) at the front side of the plateau (32). - Page 6 -- You may now roll your motorcycle up the ramp, onto the lift. WARNING Before you can raise the lift, please check that the motorcycle is carried entirely by the lift – NOT by the ramp. No part of the motorcycle should be carried by the ramp at any time! BE CAREFUL The ramp is designed only to help roll wheels onto the supporting structure.
- Page 7 PARTS LIST part part Bolt M6x25 Ring M6 Wheel assembly Detachable leg Bolt M8x30 Half clamp Lifting Pedal Bolt M8x15 Hex nut M16 Exhaust Pedal Containing Ring M16 Ring Bolt M16x45 Bolt M16x90 Frame Front wheels R-lock Foot bar of Hydraulics Cylinder Spring Hydraulical Pump Steel wheel...
- Page 8 Right clamp part Rubber Bolt M6x16 Hex nut M10 Guy plate Bearing Bearing Ring Pressure plate Handwheel Handle Bolt Left clamp part Hex nut...
-
Page 9: Eg - Declaration Of Conformity
NULL AND VOID. Desccription and nature of the Machine: Motorcycle Lift Model and series: HBM 100 Serial Number: Year of construction: 2011 Harmonised EC rulings which are applied: EN 1570:1998+A2:2009.
