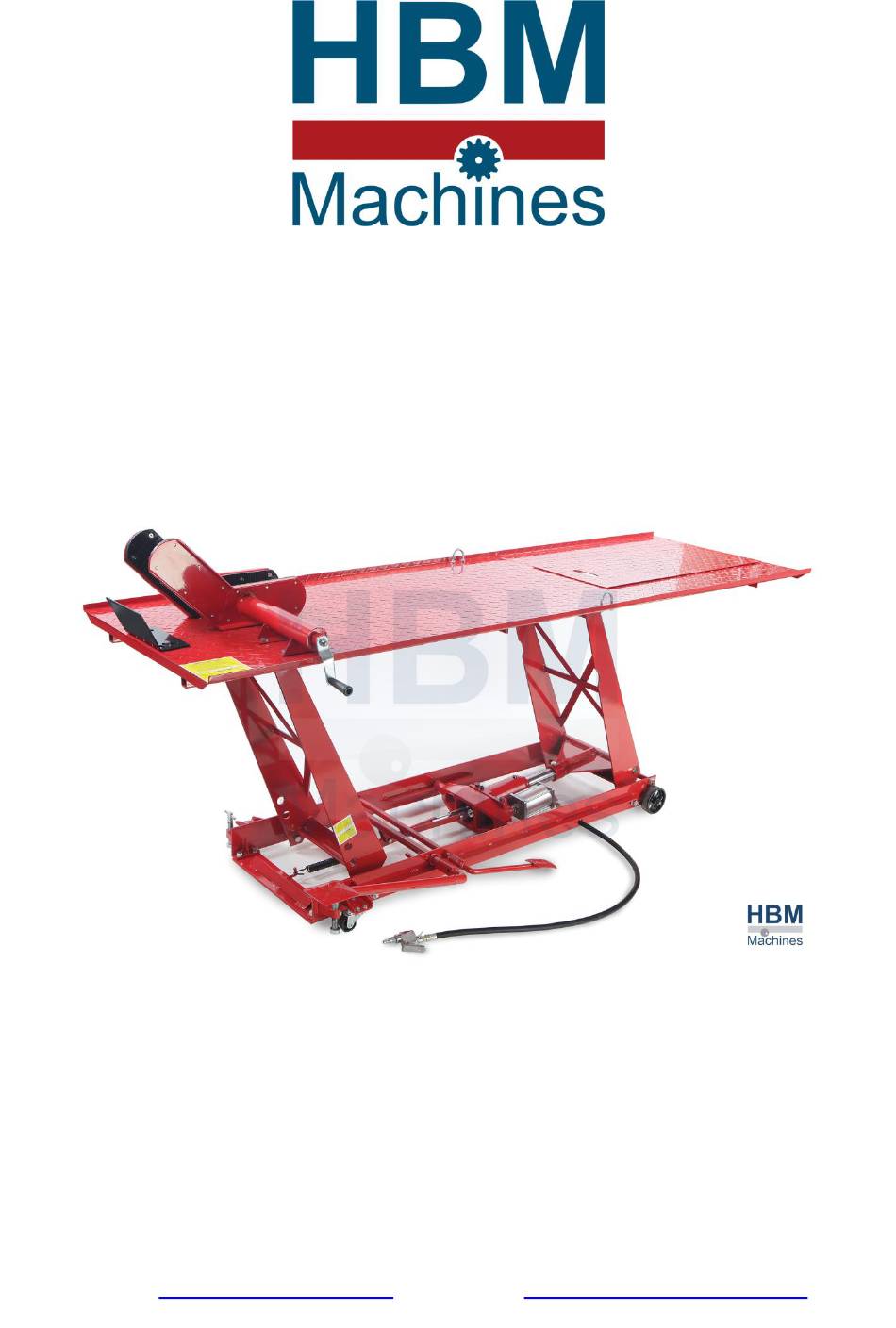

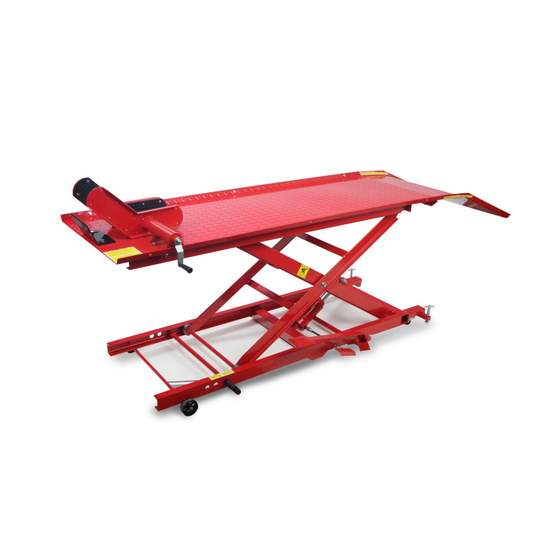

- Page 1 HBM 300 PNEUMATIC MOTORCYLE LIFT. CAPACITY 450 Kg. INSTRUCTIONS FOR USE HBM MACHINES B.V. Grote Esch 1010 – 2841 MJ Moordrecht. Telefoon: 0182 525468 Fax: 0182 635119 E-mail: info@hbm-machines.com - Website: http://www.hbm-machines.com...
-
Page 2: Warranty
God are also excluded from the warranty. Please note that the examples of external causes are not comprehensive. In no case shall HBM Machines be liable for the death or injuries of persons, for damages to goods or to the machinery itself, which was caused by operation of machinery supplied... - Page 3 The cost of returning the machinery or its part to you shall be borne by HBM Machines. In case of our customer service ascertaining that there is no fault in the machinery...
-
Page 4: Safety Measures
SAFETY MEASURES 1. Only well trained personnel is allowed to operate this machine. In case you are unfamiliar with this type of machine, please get educated before you start operating it! 2. All safety shields must remain intact and in place. Removal of safety shields is strictly prohibited. You are responsible for keeping all safety measures in proper working condition! 3. - Page 5 (whatever the cause) but the packing case is intact, contact HBM Machines. In case of doubt, ring HBM Machines. In case of obvious damage, always take photographs – a proof of your statement about damage may be required.
- Page 6 rectified before using the product. HOISTING AND LIFTING 1. Heavy products are here defined as products weighing over 25 kilograms, the accepted limit for a weight that can be comfortably lifted and shifted by hand. If you (attempt to) lift or shift loads heavier than 25 kilograms without proper lifting or hoisting machinery, you do so at your own risk and you will be responsible for all consequences.
- Page 7 3. Follow the manufacturer’s advice about fixing and securing movable parts or any other measures to be taken during transport and lifting. If you don’t comply, you will be responsible for all consequences. 4. Handle lifted or suspended loads with due caution. Keep them well balanced. Do not move loads suddenly.
- Page 8 SPECIFICATIONS Capacity 1000lb Width 680mm Minimum Height 175mm Maximum Height 750mm Air Inlet Fitting 1/4inch NPT Air Pressure 120-200PSI ASSEMBLY Unpack the lift and check contents with list below. Should there be any damaged or missing parts, contact your supplier immediately. Packing List ·Main Assembly ·Sliding Plate...
- Page 9 BEFORE FIRST USE Leave the pump for one hour to allow the oil to settle before purging the system. NOTE: Failure to allow sufficient time for the oil to settle could result in air remaining in the oil. In this event, the pump will not purge completely first time and a second purge will be required.
-
Page 10: Maintenance
NOTE: The speed of lowering is controlled by the release valve. The more the valve is opened the more rapidly the lift descends. Ensure the decent is slow and controlled. When the lift is fully lowered, unstrap the motorcycle, open the vice jaws and remove the cycle from the lift. - Page 11 PARTS LIST FOR PUMP PARTS PARTS DESCRRIPTION Q'TY DESCRIPTION Q'TY BASE AIR MOTOR STEEL BALL AIR HOSE SPRING AIR VALVE SCREW NYLONG RING "O"RING CYLINDER RELEASE WALVE O-RING SPRING NYLONG RING SCREW PISTON ROD UNION NUT NYLON RING SPRING TOP NUT STEEL BALL O-RING SCREW...
- Page 12 PARTS PARTS PARTS DESCRRIPTION QNTY DESCRIPTION QNTY DESCRIPTION QNTY Air pump Nut M8 Front lifting arm Link Lock washer 6mm Rear lifting arm Nut M6 Lifting arm spindle R-pin Locking bar Bolt M8x12 Release valve spindle Washer 10mm Nut M16 Link Bolt M10x12 Washer 14mm...
-
Page 13: Eg - Declaration Of Conformity
NULL AND VOID. Desccription and nature of the Machine: Motorcycle lift Model and series: HBM 300 Pneumatic Year of construction: 2011 Harmonised EC rulings which are applied: EN ISO 12100-1:3003...
