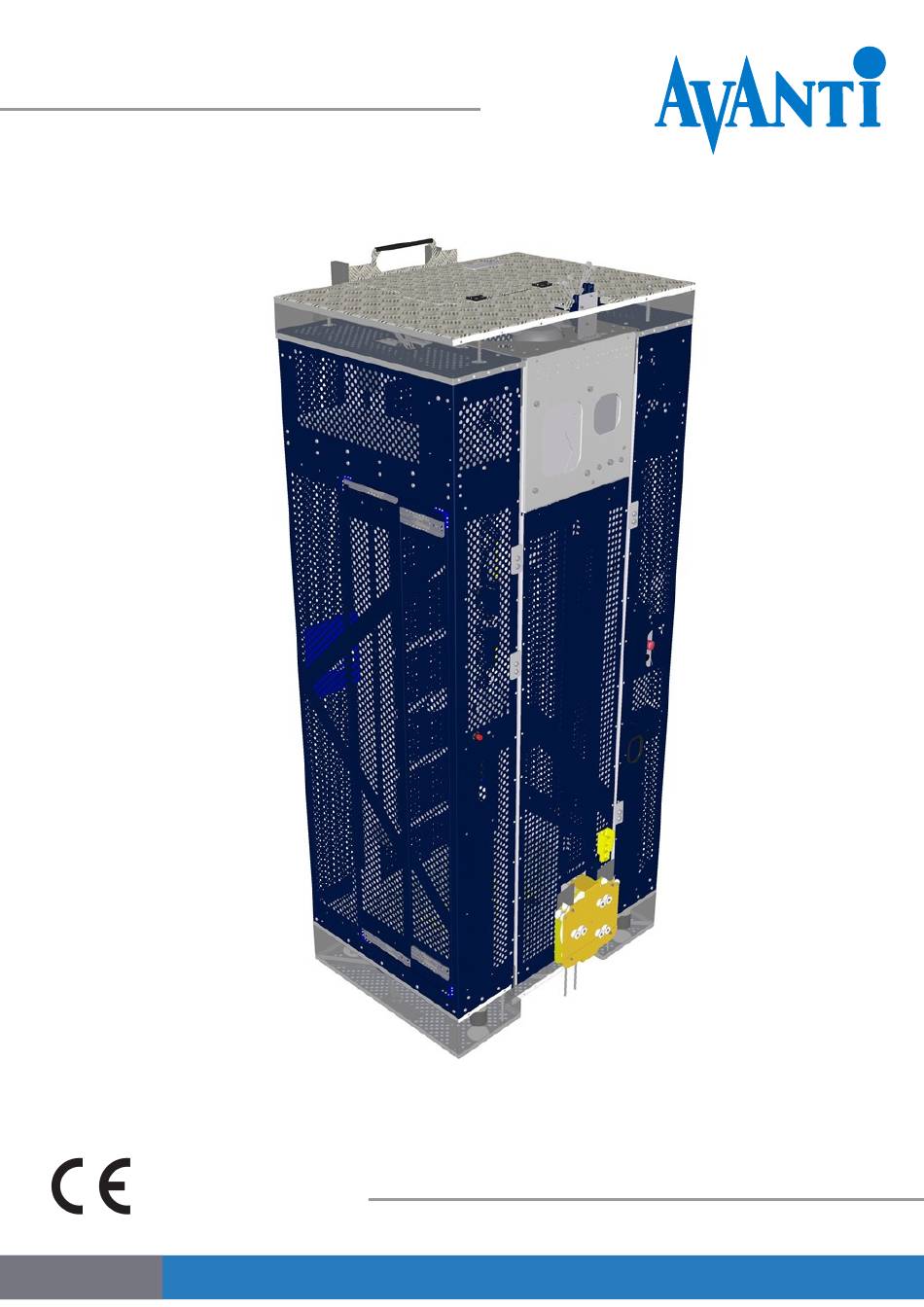

- Page 1 AVANTI SERVICE LIFT Model: OCTOPUS XL120 Service Lift User manual Original instructions User Manual – Service Lift Model OCTOPUS XL120 AT00015389 Edition: July 2019 — Revision 1: 30/07/2019 English (EN)
- Page 3 Avanti under this limited warranty, shall be, at the option of Avanti, a replacement of the Product (including incidental and freight charges paid by the Customer) with a similar new or reconditioned Product of equivalent value, or a refund of the purchase price if the Product is returned to Avanti, freight and insurance prepaid.
-
Page 4: Table Of Contents
3.1.1 Octopus XL120........ - Page 5 3.9 Cable management ..............16 3.9.1 Travelling cable .
-
Page 6: Introduction
WARNING the Avanti service lift and who are in possession of a valid Potentially hazardous situation. Risk of injury if not (not expired) certificate for the task. -
Page 7: Terms And Definitions
Definitions Person who has gone through the relevant training associated with the scheduled task Certified from Avanti or from a certified trainer and is in technician possession of a valid (non expired) certificate for the task. Person who has gone through the relevant... -
Page 8: General Information
The service lift is used primarily to transport technicians, Machinery Directive and the applicable harmonized their tools and spare parts from the bottom platform (or standards following Avanti recommendations. lowest accessible point) to the top platform (or highest accessible point). -
Page 9: Technical Especifications
/ or training specific to the integration of the service lift required for its safe and correct installation. Service lift OCTOPUS XL120 Full sliding door Main door type Main door interlock system Guard locking 18 m/min ±... -
Page 10: Traction System
Ø approx. capacity speed current Version Traction system Kg (lbs.) m/min Octopus XL120 M608 /400V 50Hz 600 (1320) Octopus XL120 M608 / 690V 50Hz 600 (1320) Octopus XL120 M608 / 400V 60Hz 600 (1320) Octopus XL120 M608 / 690V 60Hz 600 (1320) 2.4.3 Fall arrest device... -
Page 11: Dimensions
2.5 Dimensions 2.5.1 Octopus XL120 1200 Figure 3: Octopus XL120 dimensions... -
Page 12: Description
3 Description 3.1 Service lift overview 3.1.1 Octopus XL120 Figure 4: Octopus XL120 components Octopus XL120 components Traction system 10 Hour counter Fall arrest device Full sliding door (x2) Cabin light External controls Anchor points (x3) Top obstruction device Wire inspection cover... -
Page 13: Cabin
Related to the optional configuration of 2 sliding doors, 3.2 Cabin there would be 2 possible scenarios: 3.2.1 Service lift doors – A) The first door (D1) only could be opened 3.2.1.1 Main service lift door when Platform level detection switch (S18) + Bottom or Top obstruction device switch (S2 or S1) Two configurations are available for the main ingress are activated, while the second sliding door (D2) -
Page 14: Interior Light
3.3 Traction system 3.2.4 Anchor points 3.3.1 Traction hoist M608 The service lift features three anchor points inside the Avanti M608 traction hoist is installed on the top of the cabin. cabin. It is an electrical powered hoist that powers the... -
Page 15: Controls
3.5 Controls 3.5.1.1.1b Send/call configuration 3.5.1 Control boxes Internal controls are hold to run. 3.5.1.1 Cabin control boxes 3.5.1.1.1 Main control box 3.5.1.1.1a Automatic send configuration Internal controls are hold to run. Figure 10: Main control box, send / call Figure 9: Main control box, automatic configuration send configuration... -
Page 16: Platform Control Boxes
3.5.2.1.2 Send / call configuration 3.5.1.2 User control box See section 3.5.1.1.1 Main control box. The User All the controls are hold to run. control box is integrated into the Main control box. 3.5.2 Platform control boxes 3.5.2.1 Bottom platform control box There is a control box installed in the bottom platform. -
Page 17: Rescue Pendant Control
3.5.2.3 Intermediate platform control boxes 3.5.3 Rescue pendant control Rescue pendant control is only mandatory if rescue 3.5.2.3.1 Send / call configuration route of service lift can be somehow blocked and in 3.5.2.3.1a Option 1 case of an external call control box is not installed at the bottom platform. -
Page 18: Safety Devices
3.6 Safety devices 3.6.3 Bottom obstruction device The bottom full plate obstruction device is installed on the bottom of the service lift. 3.6.1 Top obstruction device The device fully covers bottom cabin face. The cover is The top obstruction device is installed on the top of the provided with a hatch in case of evacuation. -
Page 19: Warning Light
3.6.5 Warning light 3.9 Cable management An optional set of warning lights is mounted on the top and at the base of the lift. The flashes warn that the lift is 3.9.1 Travelling cable moving. Travelling cable is connected from power supply socket 3.6.6 Acoustic buzzer over mid tower´s height platform to service lift socket and it features a cable stocking on each end. -
Page 20: Information Signs And Documents
3.10.1.3 Electrical switch monitoring system optional system electrical switch monitoring system. This interlocking mechanism comprised of a mechanical locking unit and a switch unit. When the switch is opened, the power is removed so the service lift cannot move. This system allows users to evacuate to the ladder more easily, without having to jump over the fence. -
Page 21: Daily Inspection And Instructions For Use
4 Daily inspection and instructions for use 4.1 Daily inspection NOTICE The daily inspection must be recorded for future reference filling in the User Log Sheet Appendix. 4.1.1 Overall Operations Function/System Cabin and Cabin Visually check the cabin and its components are assembled correctly and these are free of cracks, dents and disparities. components •... - Page 22 Function/System Operations Open the service lift door. 2. Press the UP and DOWN buttons on the Main control box. The green light must be OFF and the service lift must not move UP or DOWN. Service lift door switch Close the service lift door and ascend the lift electrically a few centimeters at a height no corresponding to the platform.
-
Page 23: Prohibited Uses
4.1.2.2 External cabin control (Automatic Send) The Automatic send mode function is only available from the control buttons outside of the cabin. It must be checked as follows (one technician inside the cabin / one technician outside): Function/System Operations 1. Turn the main control box selector to (if installed). -
Page 24: Top/Bottom Hatches
Normal use Bottom hatches During normal use with the service lift connected to the The service lift has two bottom hatches, one on the floor electric grid, the sliding door is closed by pushing of the cabin and the other on the bottom full cover the actuator into the door guard locking switch. -
Page 25: Operation From Inside The Cabin (Manual)
4.3.5 Operation from inside the cabin (manual) 4.3.6 Operation from outside the cabin (automatic send configuration) When the fence doors feature a guard locking system: 1. Turn the main switch of the bottom platform control box to the ON position. 2. -
Page 26: Operation From Platforms (Call Or Send And Call Function)
CAUTION WARNING To prevent the lanyards from tangling with surrounding When the UP or DOWN button is pressed on the external control box in the cabin, the response of elements, keep them properly attached to your body the cabin is delayed. During this delay, an acoustic harness. -
Page 27: Manual Descent
In case of power failure, a manual descent without power The service lift is provided with the ASL608 fall arrest can be performed. To do so: device which will be triggered in case of an overspeed condition. 1. Verify that the fall arrest device is unlocked. This device protects the service lift against traction wire 2. -
Page 28: After Use Instructions
DANGER DANGER the internal emergency ladder PPEs are used, that the WARNING CAUTION CAUTION... -
Page 29: Troubleshooting
4.5 Troubleshooting 1. All tests and repairs to the electronic components should be performed by certified technicians only. The wiring diagram is placed in the power cabinet. 2. Repairs to the traction hoist, the fall arrest device and to the system’s supporting components should be performed by certified technicians only. - Page 30 Cause Solution THE SERVICE LIFT DOES NOT MOVE UP OR DOWN. A5 Power failure Switch is not activated. Turn the emergency stop button clockwise until it is released. Grid voltage interrupted. Find the cause and wait for the power to return. Test and if necessary repair the power cable, fuses, connections, Power supply between grid connection and control interrupted.
- Page 31 Low release speed on fall arrest device. Replace the traction system and fall arrest device and return the defective fall arrest device to Avanti for testing. B3 Traction system Insert the brake lever into the traction system and lower the lift manually.
-
Page 32: Out Of Service
G Wire ropes If possible, immediately replace the traction system and return it to Wire ropes are dirty. Avanti for testing or repairing. NOTICE If these steps do not identify the cause and rectify the fault: Consult a certified technician or contact the manufacturer. -
Page 33: Appendix: User Log Sheet
Appendix: Stomp-test Instructions Alternative way to inspect the ASL during Daily Inspection before Operation... -
Page 34: Changelog
Changelog Version Date [mm/yyyy] Description 01.01 02/2018 Service Lift User manual Model Octopus XL120 01.02 04/2018 Added Traction hoist M608 and ASL608 EC Certificate updated 02.01 03/2019 Manufacturer updated to Avanti Wind Systems Technology, S.L. Certification manual 02.02 06/2019 Extend service lift travel path up to 160 m. - Page 36 www.avanti-online.com...
