Installation – Terminal Connections; Understanding Your Terminal Connections; Rear Of Basicline T; Power Terminals 230 Vac - Roth Basicline T Installer Manual

Installation – Terminal Connections

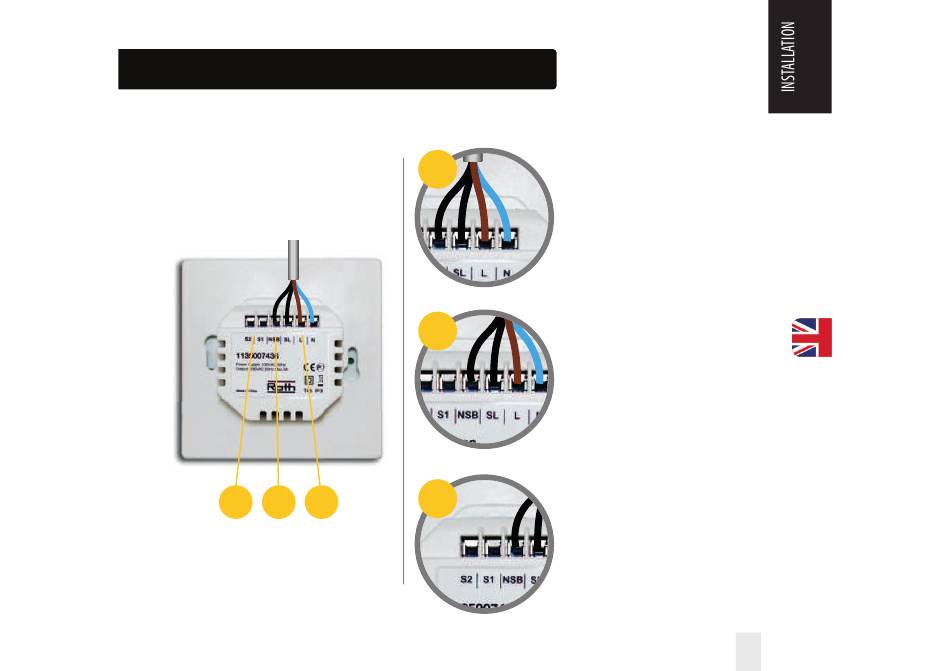

Understanding your terminal connections

Rear of Basicline T

3 2 1
1

Power Terminals 230 Vac

Used for supplying power to the
unit and switched output.
2 NSB (Night Set Back) Connection
Used for a 230 V output to other
thermostat. See page 56.
3
Sensor Terminals S1, S2 (Optional)
Can be used for external AIR
or Floor sensor.
