I N S TA L L E R M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Basicline T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Roth Basicline T

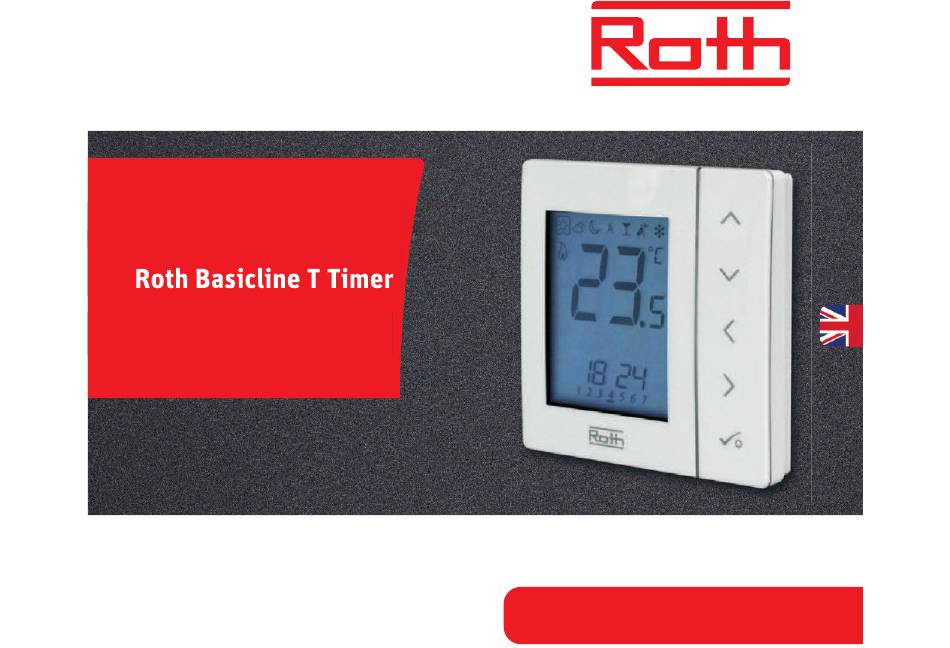

  • Page 1 I N S TA L L E R M A N U A L...
  • Page 2 User Guide Parameter Settings Your bene t Installers Notes Warranty Box Contents I N S TA L L E R / U S E R M A N U A L 1 x User manual Fixing screws Basicline T Installer Manual...
  • Page 3 Use in accordance with the regulations. Thank you for purchasing the Roth room The room thermostat is to be used for room thermostat Basicline T. The Basicline T is a control of hot water heating systems 230 V digital thermostat which o ers simple inside the house.
  • Page 4 Product Compliance & Safety Information Sources of danger Installer parameter settings The thermostat must be disconnected from The room thermostat is equipped with installer parameter section. mains supply before removing the cover. This must only be entered by the installer or competent 230 V AC person.
  • Page 5 Installation – Terminal Connections Understanding your terminal connections Power Terminals 230 Vac Used for supplying power to the Rear of Basicline T unit and switched output. NSB (Night Set Back) Connection Used for a 230 V output to other thermostat. See page 56.
  • Page 6 Installation – Thermostat Mounting Gently remove front housing. Gently remove front housing. Wall Mounting For wall mounting, mark and mount the rear case to the wall. The room thermostat is suitable for wall boxes with a centre hole distance of : 60 mm Only for ush mounting boxes with horizontal...
  • Page 7 Installation – Thermostat Mounting Mounting position and installation To ensure trouble free operation and e cient control, the room thermostat is best positioned in a draft free area, and at 130 cm from the oor. Do not position the thermostat near any heat source, behind curtains, direct sunlight or an area of high humidity.
  • Page 8 Installation – Terminal Connections Sensor Terminal (optional) Sensor Terminal (optional) Night set back output Optional Load (Thermal Actuators) Sensor Live 230 V AC 50Hz NSB for other thermostats Neutral Wiring Centre Thermal Actuator Output Installer Manual...
  • Page 9 Installation – Terminal Connections Check that the wiring is completed for: Power Terminals NSB (Night Set Back) Connection Sensor Terminals (if applicable) You are ready to secure the rear housing to the wall box Please use the screws provided Ensure the orientation arrow is pointing upwards.
  • Page 10 Installation – Thermostat Mounting Fit the front housing to the rear housing Ensure the pin connections are aligned Align the front housing Lightly press until you hear a positive click. at the top edge. Installer Manual...
  • Page 11 Installation – LCD Graphics Installer Manual...
  • Page 12 Installation – LCD Graphics SYMBOL FUNKTION BOX means to select the mode e.g. means the current setpoint is Hi temp, means the Hi temp is not selected. Sunny: Hi comfortable temperature. Cloudy: Middle comfortable temperature. Moon: Low comfortable temperature. Programmable thermostat Program mode indicator: Indicates program is running, Auto On or Auto O .
  • Page 13 Installation – LCD Graphics ICON FUNCTION Heat indicator: Indicates heat is required. Cool mode indicator: Indicates cooling is required (if applicable). Temperature indicator: Display the room temperature. Display the set-temp. Also used to show the other information. Temporary manual override indicator: If the set temperature is changed when in program mode, the hand will appear until the next program start time.
  • Page 14 Installation – User Interface ICON FUNCTION Floor sensor probe indicator: Show only when Air + Floor sensor is connected. Setting indicator: Indicates the unit is in setting mode when program setting. Indicates the manual mode. Keylock indicator: Shows that keys are inactive. Installer Manual...
  • Page 15 Installation – User Interface FUNCTION 1. Increase or decrease setpoint temperature. 2. Increase or decrease Day, Clock, Timer, Party and Holiday. 3. Select installer parameter value. 1. Mode selection. 2. Long press to return to home display without saving. 3. Short press to return to the previous screen when it is in user /installer setting mode.
  • Page 16 Installation – First Power Up Software Version 2 Seconds 2 Seconds ON rst power up. Proceed to page 67 Time Setting Installer Manual...
  • Page 17 Installation - Graphics Key Press once Press x amount of times Hold for ve seconds Flashing Short press to save and Short press to back up long press to save and exit Installer Manual...
  • Page 18 User Guide - Setting time and date Installer Manual...
  • Page 19 User Guide - Setting time and date Hour Use left to select 12 hour and right to select 24 hour. Minutes Year Month Adjust the time using the up or down arrow key. Installer Manual...
  • Page 20 User Guide – Understanding Temperature Levels - Heating Highest Temperature typically used for early morning and early evening. Typically 20 Deg C Mid Temperature typically used for times of day when you are active around the home. Typically 19 Deg C Lower Temperature typically used for unoccupied or sleep times.
  • Page 21 User Guide - Understanding Temperature Levels - Cooling See device setting D18, section on page 92 º Occupied Temperature. Typically 22 º Unoccupied Temperature Typically 40 This avoids cooling being active when the property is unoccupied. º Evening Temperature Typically 26 Your thermostat comes preset for the above temperatures.
  • Page 22 User Guide - Default Heating Schedule 1 Monday to Friday 12.00 6.00 9.00 16.00 23.00 Saturday to Sunday 12.00 7.00 23.00 Installer Manual...
  • Page 23 User Guide - Optional Heating Schedule 2 Monday to Friday 12.00 6.00 22.30 Saturday to Sunday 12.00 7.00 23.00 Installer Manual...
  • Page 24 User Guide - Optional Heating Schedule 3 Monday to Friday 12.00 5.00 8.00 14.00 22.00 Saturday to Sunday 12.00 7.30 22.30 Installer Manual...
  • Page 25 User Guide - Optional Heating Schedule 4 Monday to Friday 12.00 6.00 9.00 15.00 22.30 Saturday to Sunday 12.00 7.30 23.00 Installer Manual...
  • Page 26 User Guide - Optional Heating Schedule 5 Monday to Friday 12.00 6.00 10.00 16.00 23.00 Saturday to Sunday 12.00 7.30 23.30 Installer Manual...
  • Page 27 User Guide - Default Cooling Schedule 1 Monday to Friday 12.00 6.00 9.00 16.00 23.00 Saturday to Sunday 12.00 7.00 23.00 Installer Manual...
  • Page 28 User Guide - Optional Cooling Schedule 2 Monday to Friday 12.00 6.00 22.30 Saturday to Sunday 12.00 7.00 23.00 Installer Manual...
  • Page 29 User Guide - Optional Cooling Schedule 3 Monday to Friday 12.00 5.00 8.00 14.00 22.00 Saturday to Sunday 12.00 7.30 22.30 Installer Manual...
  • Page 30 User Guide - Optional Cooling Schedule 4 Monday to Friday 12.00 6.00 9.00 15.00 22.30 Saturday to Sunday 12.00 7.30 23.00 Installer Manual...
  • Page 31 User Guide - Optional Cooling Schedule 5 Monday to Friday 12.00 6.00 10.00 16.00 23.00 Saturday to Sunday 12.00 7.30 23.30 Installer Manual...
  • Page 32 User Guide – Setting the Temperature Schedule Use right and left to select the day of the programs. 7 Days Individual Installer Manual...
  • Page 33 User Guide – Setting the Temperature Schedule Adjust the time using the up or down arrow key. Use right and left to select the Hi/Mid or low temp. Installer Manual...
  • Page 34 User Guide – Setting the Temperature Schedule Repeat through to program 4. If you require a 5th or 6th program enter a time and select your temperature To remove a program out set the time to --:--. When you set the temperature, the schedule will respond to those temperatures.
  • Page 35 User Guide - Temporary Override Use the up or down arrow key to view your program set temperature. Temporary override allows you to increase the temperature or decrease it to the desired setting until it reverts back on the next program time. Use the up or down arrow key to adjust the temperature to...
  • Page 36 User Guide - Temporary Override Con rm the temporary set temperature. To cancel temporary override press See below. Installer Manual...
  • Page 37 User Guide - Permanent Override Setting permanent low temperature Move from Use the up or down arrow key to view your set temperature. See page 83. To cancel permanent override select Repeat for if required See below. To adjust your permanent override temperature follow the steps on...
  • Page 38 User Guide - Party Mode Use the right arrow to select The party mode is the party mode. an option that enables temperature for a period of time. You select up to 9hr 50min. Use the up arrow to select the hr/min.
  • Page 39 User Guide - Holiday Mode Use the right arrow to select the holiday mode. Use the up arrow to select how many days to be o for. Press tick to con rm and it will start the holiday count down. Installer Manual...
  • Page 40 User Guide - Frost Protection Use the right arrow to select the frost mode. Use the up arrow to select the frost protection temperature. Press tick to con rm the temperature that it has been set to. Installer Manual...
  • Page 41 Installation - Entering Device Menu Press all three If you need to buttons simultaneously. change device parameters follow the steps below. Must only be entered by the installer. This is the rst screen of the device menu. Installer Manual...
  • Page 42 Installation - Device Parameters FUNCTION SYSTEM SETTING DEFINITION DEFAULT Heating Pulse Width Modulation Control On-O 0.5 Deg C +/- 0.25 Deg C On-O 1.0 Deg C +/- 0.5 Deg C Room -3.0 to 3.0 Temperature O set from Temperature Deg C Measured Temperature to 0 Deg C O set...
  • Page 43 Installation - Device Parameters FUNCTION SYSTEM SETTING DEFINITION DEFAULT Frost Set point 5-17 Deg C Required Temperature for frost 5 Deg C Temperature protection and holiday mode Hour Format Daylight Saving Time (DST) Heating Set point Maximum temp that can 5-35 Deg C 35 Deg C Limit...
  • Page 44 Installation - Device Parameters FUNCTION SYSTEM SETTING DEFINITION DEFAULT Preset program Select 1-5 of the default programs selection Heat/Cool mode 0: heating mode 0 or 1 selection 1: cooling mode Reset to factory settings Enter Number 47 Press all three and press buttons simultaneously.
  • Page 45 Installation - Technical Detail Model Thermostat Basicline T 230 V Type Electronic programmable room thermostat, digital room thermostat designed for 230 V AC applications Programming Modes User selectable for 5/2, ALL and Individual day options Program Number 1-6 Selectable Modes...
  • Page 46 Installation - Notes Installer Manual...
  • Page 47 Roth warrants that this product will be free from any defect in materials or workmanship, and shall perform in accordance with its speci cation, for a period of two years from the date of installation. Roth sole liability for breach of this warranty will be (at its option) to repair or replace the defective product.
  • Page 48 24/07/2014 Subject to technical modi cations...
