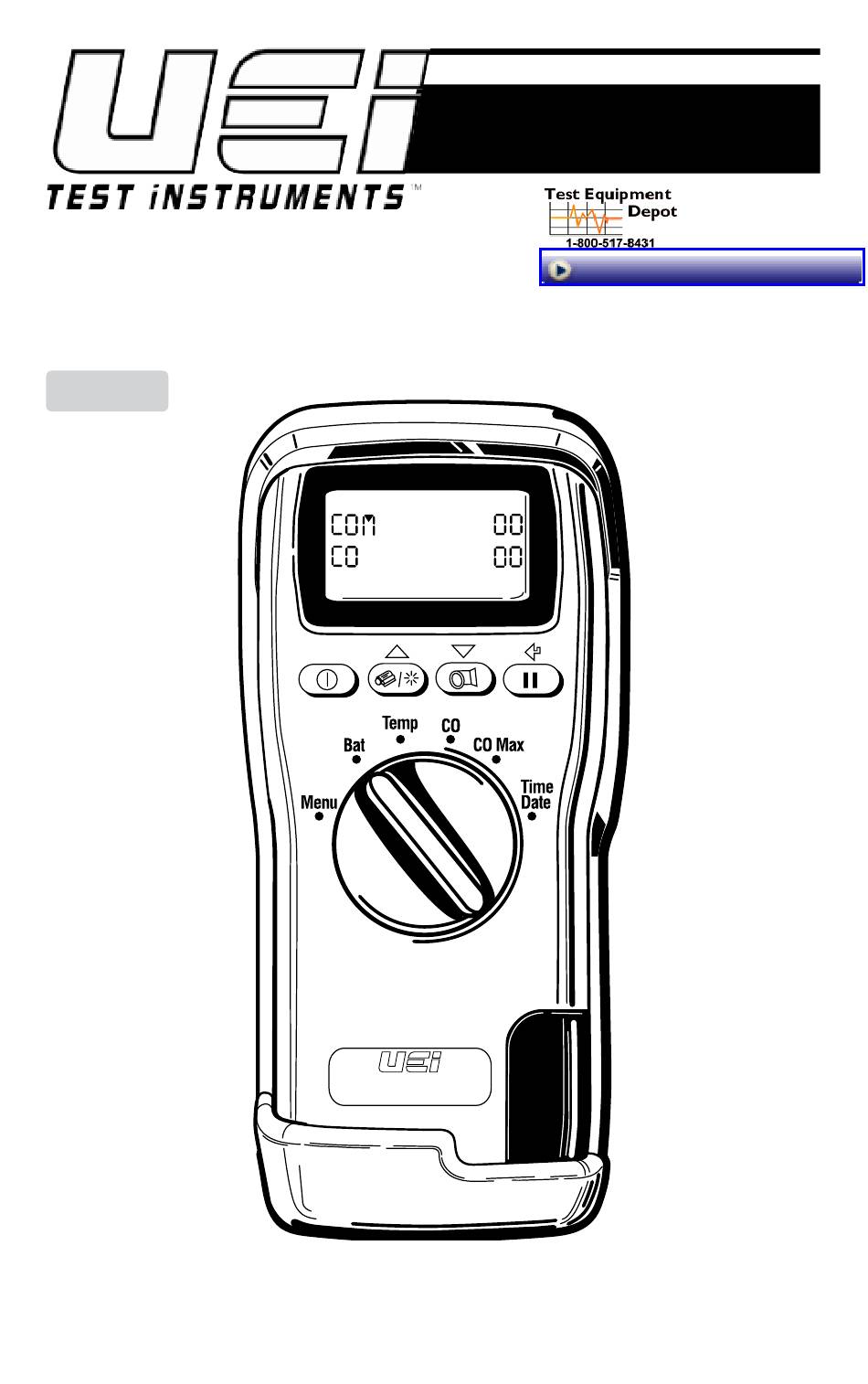

Carbon Monoxide Detector
INSTRUCTION MANUAL
ENGLISH
CO95
C A R B O N M O N O X I D E D E T E C T O R
CO95
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CO95 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for UEi CO95

  • Page 1 CO95 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Carbon Monoxide Detector Visit us at www.TestEquipmentDepot.com INSTRUCTION MANUAL ENGLISH CO95 C A R B O N M O N O X I D E D E T E C T O R...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTrOduCTION ........................3 Safety..........................3 CONTrOLS ANd INdICATOrS ..................... 4 OpErATINg INSTruCTIONS ....................6 Before Using Every Time ....................6 Appliance Measurements ....................6 CFK1 – Optional Chemical Filter Kit (NOx Filter) ............7 Ambient Air Measurements .................... 7 Printing Test Information ....................
  • Page 3: Introduction

    INTrOduCTION The CO95 is configured with a long-life CO sensor. The CO95 meter tests CO levels in heating appliances, ambient air, around fossil fueled appliances like cookers and grills. It also helps you test residential and commercial CO alarms and also shows CO MAX - the maximum level of CO measured.
  • Page 4: Controls And Indicators

    CONTrOLS ANd INdICATOrS 10 11 CO95 C A R B O N M O N O X I D E D E T E C T O R pOWEr puSh-BuTTON • Press “ “ button to switch the unit ON in fresh air outside the property about to be tested. This lets the meter auto calibrate its sensors properly.
  • Page 5 up/dOWN/ENTEr BuTTONS • Press the “dOWN” button for more than 1 second to change the displays top line. The rotary dial changes the displays bottom line. Example: The meter will display CO on its top line and temperature on its bottom line if you turn the rotary dial to “TEMP”...
  • Page 6: Operating Instructions

    The temperature probe is connected if required AppLIANCE MEASurEMENTS Place the CO95’s probe into the appliance’s sampling point. The ideal sampling point is at least two flue diameters downstream of any bend. Put the probe tip in the flue center. With balanced flue, make sure the probe is positioned far enough into the flue so no air can “back flush”...
  • Page 7: Cfk1 - Optional Chemical Filter Kit (Nox Filter)

    If you anticipate high levels of SO2 or NOx, UEi recommends using our CFK1, in-line chemical filter. The CFK1 will remove NOx and SO2 from the gas sample, allowing a true view of the CO only. The CFK1 is compatible with most portable CO and Flue Gas Analyzers, installs on the sample line before the instrument, and need for replacement is easy to determine.
  • Page 8: After Using The Meter

    AFTEr uSINg ThE METEr After using the meter to test appliances, remove it’s probe from the flue - IT WILL BE HOT - and let it cool. Do not put the probe in water which will be sucked into the meter, damaging its pump and sensors. When the meter readings return to ambient levels, turn the meter off.
  • Page 9: Maintenance

    MAINTENANCE pErIOdIC SErvICE WArNINg! Repair and service of this instrument is to be performed by qualified personnel only. Improper repair or service could result in incorrect or erroneous reading from the meter. Perform only those maintenance tasks that you are qualified to do. These guidelines will help you attain long and reliable service from your meter: •...
  • Page 10: Electromagnetic Compatibility (Emc)

    At the time of writing this manual UEi and Kane International Ltd are not aware of any field based situation where such interference has occurred and this advice is only given to satisfy the requirements of the Directive.
  • Page 12: Warranty And Service Information

    Carbon Monoxide detector Limited Warranty The CO95 is warranted to be free from defects in materials and workmanship for a period of five years from the date of purchase. If within the warranty period your instrument should become inoperative from such defects, the unit will be repaired or replaced at UEi’s option.
