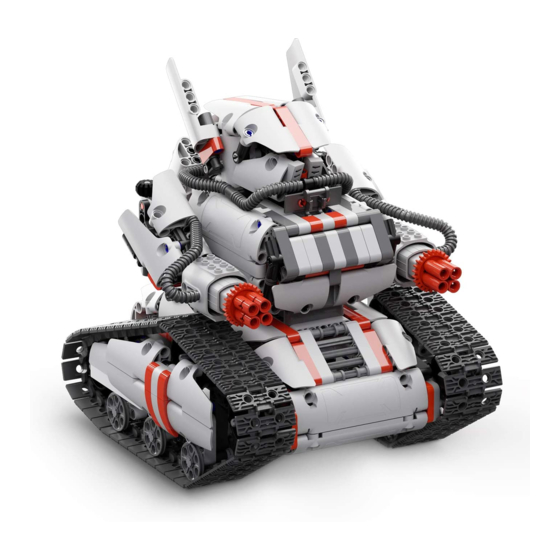

- Page 1 Mi Robot Builder Rover User Manual This version is for private use only and should not be distributed.
-
Page 2: Specifications
Specifications Ba ery capacity: 18.3 Wh Name: Mi Robot Builder Rover Model: JMJQR03IQI Intelligent brick: Bluetooth Materials: ABS, PC Wireless connectivity: Bluetooth 4.0 Number of pieces: 978 BLE operatingfrequency: 2402 MHz-2483 MHz Weight: 2500 g Transmit power: 0 dbm Dimensions: 380x320x95 mm 2.4G Radio frequency: 2402 MHz-2483 MHz... -
Page 3: Product Overview
Product Overview 1. Intelligent Brick Microphone Indicator Power Bu on Speaker Motor Ports Expansion Ports Pin Holes Reset Hole 2. Adapter Use only the provided power adapter. Ports А, В, C, D can be used for charging Adapter Model: AD10002 Charging: Indicator light is red. -
Page 4: Turning On/Off
3. Motor Transmission sha Connectors Assembling Mi Robot Builder Rover 1. Before you start Put small bricks in the storage box, and large bricks in the bag. 2. Build your robot Follow the building instruction or download the e-version from the Help in the Mi Robot Builder app to assemble the bricks. -
Page 5: Installing The App
Installing the app 1. Download the app Scan the QR code below or go to App store to download and install "Mi Robot Builder". 2. Connecting your robot Make sure your phone's Bluetooth is turned on. Open the Mi Robot Builder app and tap the Bluetooth icon in the upper le corner to connectyour robot. -
Page 6: Declaration Of Conformity
Precaution • Do not disassemble the controller and the motor. • Do not expose the product to sunlight, fire, heat or environments where temperature is above 60°C (140°F). • Do not short circuit the product in any way. • Do not crush, puncture or strike the product. •... -
Page 7: Troubleshooting
We declare that Toys is in compliance with the essential requirement and relevant provisions of Directive 2009/48/EU. Environmentally friendly disposal Old electrical appliances must not be disposed of together with the residual waste, but have to be disposed of separately. The disposal at the communal collecting point via private persons is for free. - Page 8 Read this manual carefully before use, and retain it for future reference. Principal: Xiaomi Communications Со., Ltd. Manufacturer: Beijing AIQI Technology Co., Ltd. (a Mi Ecosystem Company) Address: Room 1203, Block D, No. 9/11 Shangdi 3rd St., Haidian District, Beijing...
