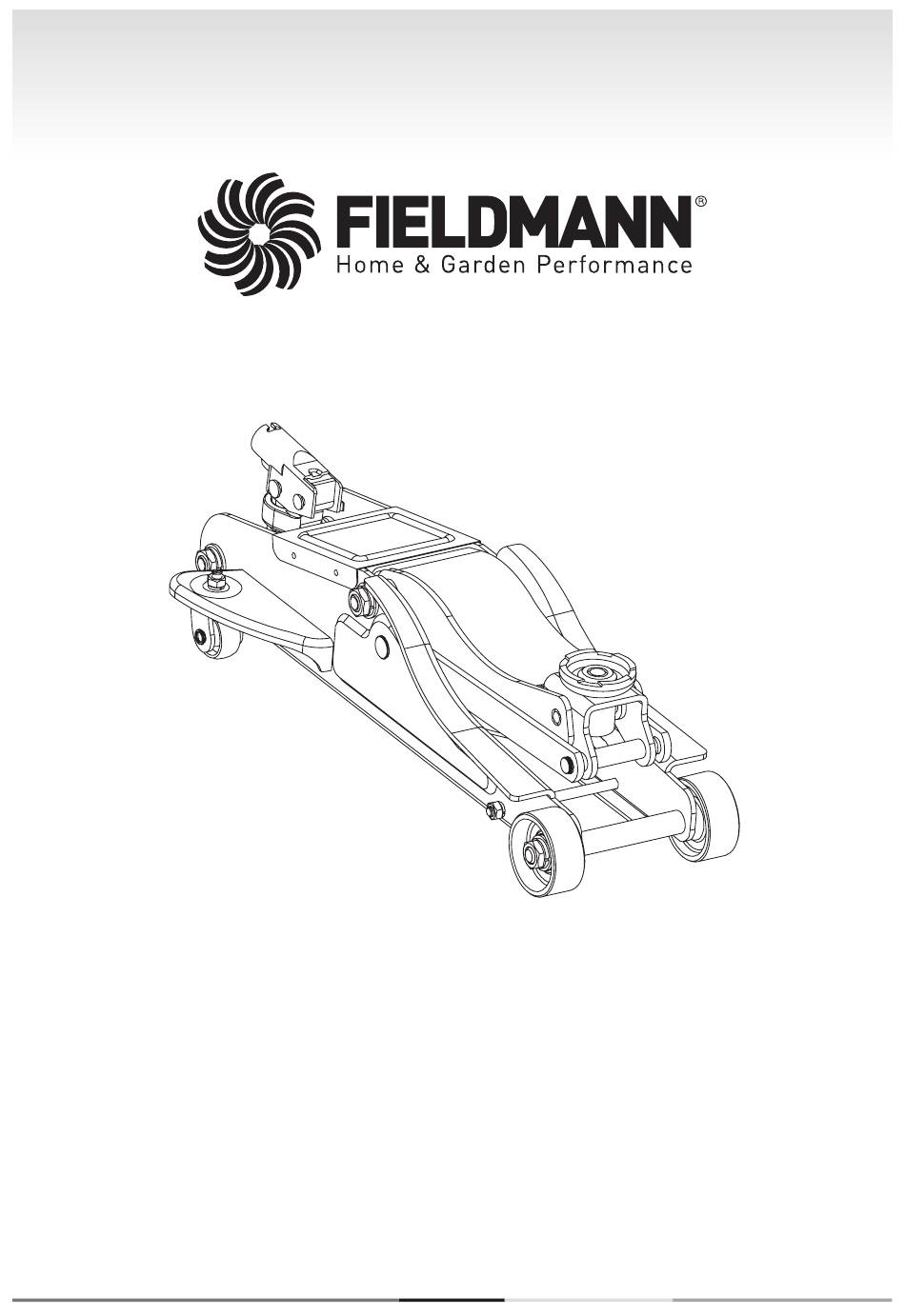

- Page 1 FDAH 2002...
-
Page 2: Table Of Contents
ILLUSTRATED ATTACHMENT ......................G NERAL SAFETY REGULATIONS ....................GENERAL SAFETY RULES ........................SYMBOLS ............................. ASSEMBLY ............................. MAINTENANCE INSTRUCTIONS ......................TO ADD JACK OIL ..........................TROUBLE SHOOTING .......................... TECHNIAL SPECIFICATION ................................................... DISPOSAL DECLARATION OF CONFORMITY ...................... FDAH 2002 HYDRAULIC FLOOR JACK... -
Page 3: G Neral Safety Regulations E
The operation manual includes also instructions for operation, maintenance andrepairs. The manufacturer does not take any responsibility for accidents or damages resulting from the failure to adhere to this manual. FDAH 2002... - Page 4 General safety instructions Workplace Keep the work area clean and well lit. Cluttered or dark areas in the workplace invite accidents. Store power tools that you don’t currently use. Do not operate power tools in environments with danger of occurrence of a fire or explosion, such as in the presence of flammable liquids, gases, or dust.
-
Page 5: General Safety Rules
Carefully inspect the unit on a regular basis and perform all maintenance as required. Store these instructions in the handle of your jack. Keep all decals on the unit clean and visible. FDAH 2002 FDK 2001-E... - Page 6 The distributor is not responsible for any damages or injury caused by improper use or neglect. WARNING! Always use Jack Stands! FDAH 2002 DO NOT USE wood blocks or any other non-approved load sustaining devices. Hydraulic Floor Jack...
- Page 7 When you block a load, you secure and support a load that is being lifted. The block(s) or stabilizer(s) should have a weight capacity that is greater than the weight of the load which is being lifted. FDAH 2002 FDK 2001-E...
- Page 8 General safety instructions General safety instructions Center Load on Jack Saddle Center load on jack saddle before lifting vehicle. Off-center loads and loads lifted when the jack is not level can cause loss of load or damage to the jack. Do not raise or lower the vehicle unless tools, materials and people are clear.
-
Page 9: Symbols
Symbols 3. SYMBOLS The product complies with the applicable standards and regulations. To add jack oil ELECTRICAL ANGLE GRINDER OPERATING INSTRUCTIONS... -
Page 10: Assembly
Turn handle and release valve Clockwise to Tighten. Thread of jig. Use ears protectiove equipment ELECTRICAL ANGLE GRINDER OPERATING INSTRUCTIONS Thread of jig. ELECTRICAL ANGLE GRINDER OPERATING INSTRUCTIONS Release Valve FDAH 2002 ELECTRICAL ANGLE GRINDER OPERATING INSTRUCTIONS... - Page 11 Assembly SYSTEM AIR PURGE PROCEDURE IMPORTANT: BEFORE FIRST USE Perform the following Air Purge Procedure to remove any air that may have been introduced into the hydraulic system as a result of product shipment and handling. This step is to be completed without any weight on the jack. Cover Plate 1.
- Page 12 Position the jack so that the saddle is centered and will contact the load lifting point firmly le the handle; ensure to align with slots. Close the release valve by turning it clockwise until it is firmly closed. FDAH 2002...
- Page 13 Assembly 7. Before raising the vehicle double check and verify the saddle is centered and also has full contact with the lifting point. 8. Pump handle to lift until saddle contacts load. Continue to pump the jack handle to lift the vehicle to the desired height. After lifting, support the load with appropriately rated vehicle support stands before working on the vehicle.
-
Page 14: Maintenance Instructions
If the binding continues contact Customer Service. Cleaning If the moving parts of the equipment are obstructed, use cleaning solvent or another good degreaser to clean the equipment. Remove any existing rust, with a penetrating lubricant. FDAH 2002... - Page 15 Maintenance instructions Lubrication This equipment will not operate safely without proper lubrication. Using the equipment without proper lubrication will result in poor performance and damage to the equipment. Some parts in this equipment are not self- lubricating inspect the equipment before use and lubricate when necessary. After cleaning, lubricate the equipment using light penetrating oil, lubricating spray.
-
Page 16: To Add Jack Oil
1. Position the jack on level ground and lower the saddle. 4. Fill the oil case until oil level is just beneath the lower rim of the oil fill hole. 2. Open release valve by turning handle counter-clockwise. FDAH 2002... - Page 17 Operating instructions 3. Remove cover plate. 7. Replace oil plug. Remove the oil plug. 8. Replace the cover plate and perform the Air Purge Procedure. 5. Turn the jack upside down to drain old oil from the oil fill hole. ADDITIONAL WARNINGS: DO NOT USE MOTOR OIL IN THE JACK.
-
Page 18: Troubleshooting
Lifting Range Lifting Range Lifting Range Min. (Inch) Max. (Inch) Min. (cm) Max. (cm) FDAH 2002 2 TON 3-1/2 14-1/8 35.9 Instructions Manual - language version only. Amendments to text and technical parameters are reserved. Changes in the text, design and technical specifi cations may change without prior notice and we reserve the right to make these changes.keep it from turning... -
Page 19: Disposal
Disposal 9. DISPOSAL INSTRUCTIONS INFORMATION DISPOSAL USED PACKAGING Put any used package material to the place determined by the municipality for waste disposal. DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMEN This symbol on products or accompanying documents means that used electric or electronic products must not be put to ordinary municipal waste. -
Page 20: Declaration Of Conformity
FAST ČR, a. s. Černokostelecká 2111, 100 00 Prague 10, Czech Republic Tax ID number: CZ26726548 Product/brand: HYDRAULIC FLOOR JACK 2t / FIELDMANN Type/model: FDAH 2002 This product meets the requirement of the directives and regulations below: ES Council Directive No. 2006/42/ES for machinery...
