Summary of Contents for Primes FocusMonitor FM+

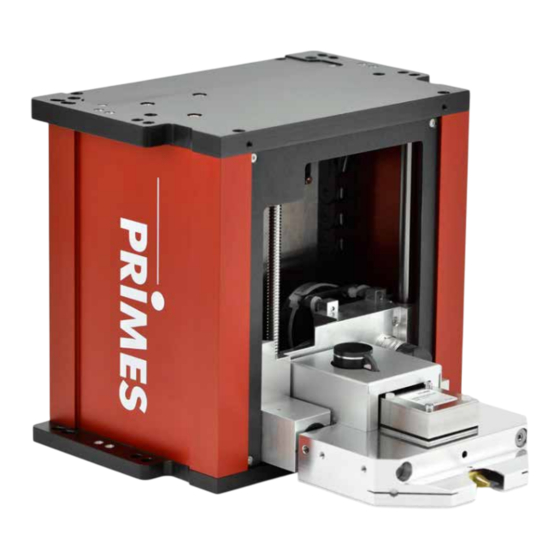

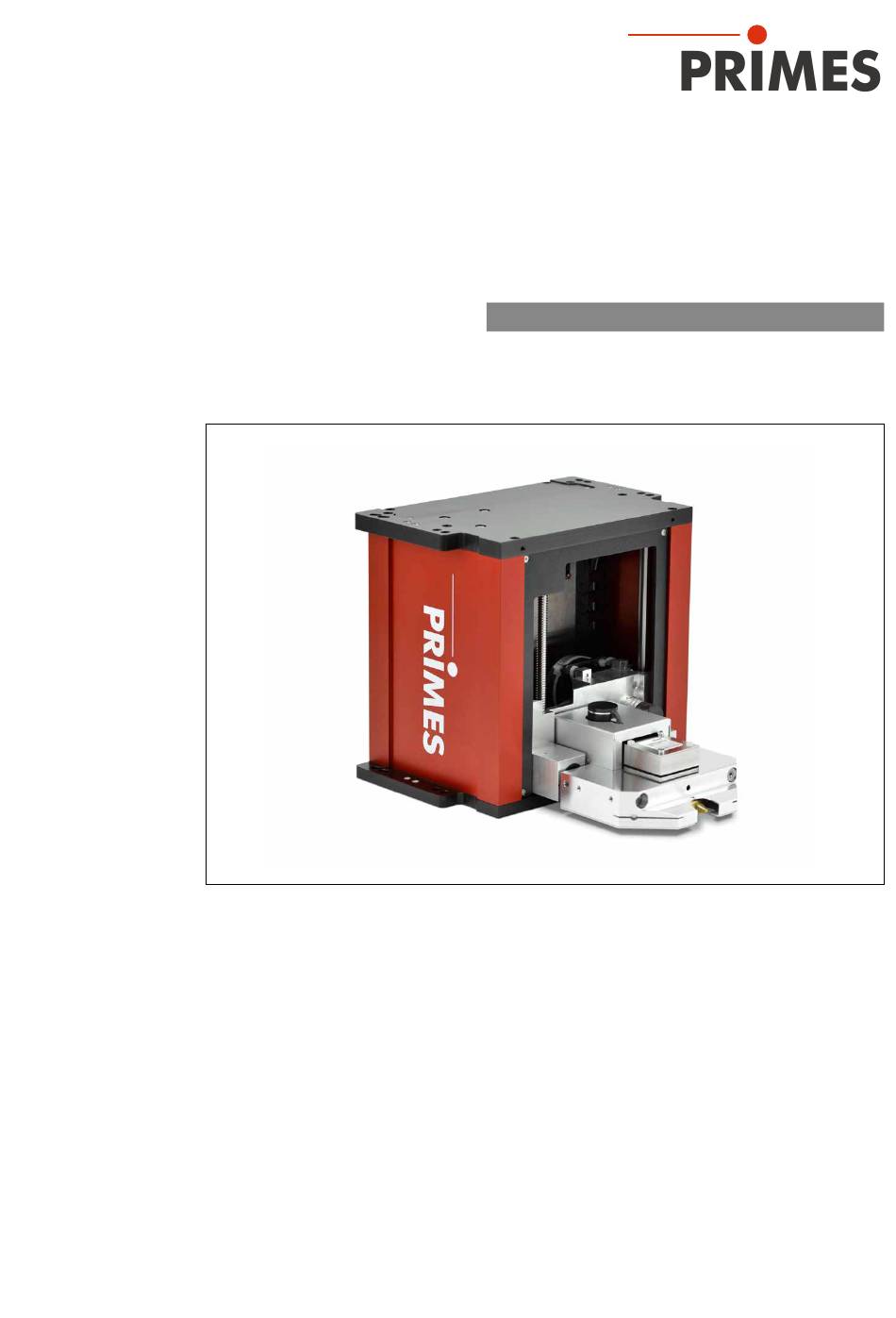

- Page 1 Operating Manual Translation of the original instructions FocusMonitor FM+ LaserDiagnosticsSoftware LDS Revision 03/2019 EN...
- Page 3 FocusMonitor FM+ IMPORTANT! READ CAREFULLY BEFORE USE. KEEP FOR FUTURE USE. Revision 03/2019 EN...
-
Page 4: Table Of Contents
Connections ..........................21 Pin assignment ........................22 8.2.1 Power supply ......................22 8.2.2 PRIMES bus RS485 ....................22 8.2.3 Trigger output (option) ....................22 Connection to the PC and establishing the power supply ............23 Connection of the FocusMonitor FM+ and PowerMonitor PM 48/100 to the PC .....24... - Page 5 FocusMonitor FM+ Troubleshooting Maintenance and service Product disposal measures Declaration of conformity Technical data Dimensions Appendix 18.1 System control (option) ......................46 18.2 Variety of detectors and measuring tips ...................47 18.3 Limit values for measuring operation with CO high power measuring tip ........48 18.4 Limit values for measuring operation with YAG high div measuring tip ........50 18.5 Check/replace the measuring tip .....................52 18.5.1 Check the measurung tip ....................52...
- Page 6 • Beam quality factor M² PRIMES is responsible for both the development, production, and calibration of the measuring devices. This guarantees optimum quality, excellent service, and a short reaction time, providing the basis for us to meet all of our customers' requirements quickly and reliably.
-
Page 7: Basic Safety Instructions
FocusMonitor FM+ Basic safety instructions Intended Use The FocusMonitor FM+ has been designed exclusively for measurements carried out in or near the optical path of high-power lasers. Please observe and adhere to the specifications and limit values given in chap- ter 16, „Technical data“, on page 42. Other uses are considered to be improper. The information contained in this operating manual must be strictly observed to ensure proper use of the device. - Page 8 FocusMonitor FM+ Employing qualified personnel The device may only be operated by qualified personnel. The qualified personnel must have been instructed in the installation and operation of the device and must have a basic understanding of working with high- power lasers, beam guiding systems and focusing units. Conversions and modifications The device must not be modified, neither constructionally nor safety-related, without our explicit permission.
-
Page 9: Symbol Explanations
FocusMonitor FM+ Symbol explanations The following symbols and signal words indicate possible residual risks: DANGER Means that death or serious physical injuries will occur if necessary safety precautions are not taken. WARNING Means that death or serious physical injuries may occur if necessary safety precautions are not taken. -
Page 10: About This Operating Manual
When the FocusMonitor FM+ is being operated, the irradiation must be fully absorbed be- hind the measurement zone. Fire bricks or other partly-absorbing surfaces are not suitable. X Use an adequate absorber. Dependent on the application, PRIMES offers suitable absorbers, such as the PowerMonitor PM 48/100. -
Page 11: Introduction
FocusMonitor FM+ Introduction System description The FocusMonitor FM+ is an opto-mechanical scanning measurement system for analyzing continuous irradiation. The laser beam is scanned with a rotating measuring tip on the x-axis. Using the horizontal and vertical carriers, the measuring tip is moved along the y- and z-axes so that the beam characteristics of the focused laser beam can be spacially measured. -
Page 12: Measuring Principle
FocusMonitor FM+ Measuring principle The FocusMonitor FM+ is designed to analyze the focused laser beam. The device measures the spatial power density distribution in the focus range of the processing optics. Using this information, the system calculates the focus radius, focus position in the space, and the beam quality factor M The power density distribution in the focus is measured with the FocusMonitor FM+ using a rotating measur- ing tip that scans the beam cross section line by line in the y-direction. -
Page 13: Short Overview Installation
FocusMonitor FM+ Short overview installation Installing the LaserDiagnosticsSoftware LDS on the computer See separate Operating Manual of the LaserDiagnosticsSoftware • Software is part of the scope of delivery Taking safety precautions Chapter 1 on page 7 Prepare Installation Chapter 7.1 on page 14 •... -
Page 14: Transport
X Handle the device carefully when transporting or installing it. X Only transport the device in the original PRIMES transport box. We recommend removing the measuring tip and placing it in the enclosed plastic case. Installation... - Page 15 FocusMonitor FM+ Mesuring tip Fig. 7.1: Danger posed by rotating parts z-axis y-axis Fig. 7.2: Crushing hazard at the FocusMonitor FM+ Revision 03/2019 EN...
-
Page 16: Preparation
When the FocusMonitor FM+ is being operated, the irradiation must be fully absorbed be- hind the measurement zone. Fire bricks or other partly-absorbing surfaces are not suitable. X Use an adequate absorber. Dependent on the application, PRIMES offers suitable absorbers, such as the PowerMonitor PM 48/100. -
Page 17: Installation Position
FocusMonitor FM+ Installation position You can install the device in different positions (see Fig. 7.4 on page 17). The standard position is intended for beam incidence from above. When accessibility is limited, you have the option of installing the device upside down with a rotated measur- ing tip (see chapter 18.5 on page 52). -
Page 18: Align The Focusmonitor Fm
FocusMonitor FM+ Align the FocusMonitor FM+ 7.4.1 Device's position in relation to the laser beam For the FocusMonitor FM+, the beam must enter vertically to the x-y-plane (see Fig. 7.6 on page 18). The vertical alignment (z-axis) is primarily dependent on the expected focal length. The maximum vertical stroke of the measuring device is 120 mm. - Page 19 FocusMonitor FM+ 1. Connect the FocusMonitor FM+ with the LaserDiagnosticsSoftware LDS as described in chapter 11.3 on page 28. 2. Choose the function of the FocusMonitor FM+ as described in chapter 11.4.1 on page 29. 3. In accordance with chapter 11.4.3 on page 31, enter the value of 60 mm in the Device Control > Advanced >...
-
Page 20: Install The Focusmonitor Fm
FocusMonitor FM+ Install the FocusMonitor FM+ DANGER Serious eye or skin injury due to laser radiation If the device is moved from its calibrated position, increased scattered or directed reflection of the laser beam occurs during measuring operation (laser class 4). X Mount the device so that it cannot be moved by an unintentional knock or cables being pulled accidentally. -
Page 21: Electrical Connections
Another device, such as a PowerMonitor PM 48/100, can be connected to the FocusMonitor FM+ via the RS485 interface (PRIMES bus). The signal from the PowerMonitor PM 48/100 is transmitted through the FocusMonitor FM+ to the PC via the Ethernet interface. The additional measuring device is powered by the power supply of the FocusMonitor FM+. -
Page 22: Pin Assignment
RS485 (–) +24 V Not assigned Tab. 8.2: D-sub socket, PRIMES bus 8.2.3 Trigger output (option) As an option, the FocusMonitor FM+ can be delivered with a trigger output (3.3 V). The trigger signal is coupled with the rotation of the measuring tip and can thus be used for the synchronization of pulsed lasers. -
Page 23: Connection To The Pc And Establishing The Power Supply
FocusMonitor FM+ Connection to the PC and establishing the power supply PRIMES power supply = 1.8 m FM + FocusMonitor FocusMonitor FM+ = 2.0 m Crossover cable Patch cable Ethernet Ethernet Fig. 8.2: Connection of FocusMonitor FM+ Connect the FocusMonitor FM+ to the PC via a crossover cable or to the network via a patch cable. -
Page 24: Connection Of The Focusmonitor Fm+ And Powermonitor Pm 48/100 To The Pc
Connection of the FocusMonitor FM+ and PowerMonitor PM 48/100 to the PC For full absorption of the radiation behind the measurement zone, you can use the PRIMES PowerMonitor PM 48/100. The water-cooled PowerMonitor PM 48/100 will show you the power, water flow rate, and water temperature. -
Page 25: Inert Gas Connection
FocusMonitor FM+ Inert gas connection When measuring high power densities (CO > 15 – 30 MW/cm²; NIR > 8 – 10MW/cm²), plasma may be ignited on the surface of the measuring tip. This could destroy the measuring tip (see chapter 18.3 on page 48 and chapter 18.4 on page 50). -
Page 26: Measuring
When the FocusMonitor FM+ is being operated, the irradiation must be fully absorbed be- hind the measurement zone. Fire bricks or other partly-absorbing surfaces are not suitable. X Use an adequate absorber. Dependent on the application, PRIMES offers suitable absorbers, such as the PowerMonitor PM 48/100. -
Page 27: Configure Focusmonitor Fm
FocusMonitor FM+ CAUTION Risk of crushing Unlike the housing, the measuring head of the FocusMonitor FM+ can move along the z- and y-axis. X Do not reach into the movement range of the measuring head. 11.2 Configure FocusMonitor FM+ 1. Based on Tab. 18.1 on page 47, check whether the installed measuring tip is suitable for your measur- ing task. -
Page 28: Connect The Focusmonitor Fm+ With The Laserdiagnosticssoftware Lds
FocusMonitor FM+ 11.3 Connect the FocusMonitor FM+ with the LaserDiagnosticsSoftware LDS 11.3.1 Connect device Switch on the FocusMonitor FM+. The operating mode is shown in the status display (see chapter 10 on page 25). Start the LaserDiagnosticsSoftware LDS. Click on the Devices tab. Click on the + Connect to device button under the tab. -
Page 29: Performing An Automatic Caustic Measurement
FocusMonitor FM+ 11.4 Performing an automatic caustic measurement This chapter aims to provide some basic information as you get to know the FocusMonitor FM+, discussing the example of an automatic caustic measurement with the LaserDiagnosticsSoftware LDS. For a detailed description of the software installation, file management and evaluation of the measured data, please refer to the separate operating manual LaserDiagnosticsSoftware LDS. -
Page 30: Configuring The Settings (Device Control > Settings)
FocusMonitor FM+ 11.4.2 Configuring the settings (Device control > Settings) Click on the Settings tab. Enter the laser wavelength used in Enter the laser output in W. Enter the focal length of the focusing lens in mm. Only when measuring a time series Enter the number of automatic caus- tic measurements. -
Page 31: Configuring Advanced Settings (Device Control > Advanced)
FocusMonitor FM+ 11.4.3 Configuring advanced settings (Device control > Advanced) Click on the Advanced tab. Enter the number of pixels in the x/y-direction in order to configure the resolution on the CCD sensor. Enter the number of planes. Specifying 21 planes already gener- ates a valid measurement. -
Page 32: Defining The Locked Area (Device Control > Advanced > Locked Area)
FocusMonitor FM+ 11.4.4 Defining the locked area (Device control > Advanced > Locked area) A locked area is a spacial limitation of the measurement area in the y- and z-direction ensuring that, for ex- ample, the measurement tip moves around any obstacles in this area. For standard installation The origin of the locked area is defined by the opening in the measuring tip (pinhole). -
Page 33: Traversing The Axes (Device Control > Advanced > Move Axes)
FocusMonitor FM+ 11.4.5 Traversing the axes (Device control > Advanced > Move axes) Enter the desired z-position of the measuring tip into the entry field numerically. • As an alternative, you can set the z- position on the slide control. Click on the Move to z-position button. -
Page 34: Rotated Measuring Tip (Device Control > Advanced > Measuring Tip)
FocusMonitor FM+ 11.4.6 Rotated measuring tip (Device control > Advanced > Measuring tip) When necessary, you can turn the measuring tip or the entire device by 180 degrees and measure in this position. If you rotate the measurement tip of the FocusMonitor FM+, to carry out a measurement “upside down”... -
Page 35: Coordinate System For Measurements With Rotated Measuring Tip
FocusMonitor FM+ 11.4.7 Coordinate system for measurements with rotated measuring tip The coordinates given as the z-position when measuring always relate to the device coordinate system, which changes when the device or measurement tip is rotated. For standard installation The figure shows the device in its resting position. -
Page 36: Starting An Automatic Caustic Measurement
FocusMonitor FM+ 11.4.8 Starting an automatic caustic measurement Follow the safety instructions in chap- ter 11.1 on page 26. Turn on the laser. Click on the Start button. The progress of the measurement is indicated when Pre-caustic, Mea- suring caustic and then Measuring completed are displayed: Pre-caustic As the indication is being displayed, the... -
Page 37: Measuring Results Display
FocusMonitor FM+ 11.4.9 Measuring results display The measuring results are displayed in the opened tools once the measurement has been completed (see below). A detailed description of the tools and the assessment of the measuring results can be found in the separate operating manual for the LaserDiagnosticsSoftware LDS. -
Page 38: Determining The Tool Center Point (Tcp) Using The Focusmonitor Fm
FocusMonitor FM+ 11.5 Determining the tool center point (TCP) using the FocusMonitor FM+ The tool center point (TCP) is usually located on the beam axis on the focus plane. Set up the FocusMonitor FM+ as de- Beam axis scribed in chapter 7.4 on page 18. Install the FocusMonitor FM+ as de- scribed in chapter 7.5 on page 20. -
Page 39: Position Of The Aperture In The Measuring Tip (Pinhole) In Relation To The Horizontal Carrier
FocusMonitor FM+ 11.5.1 Position of the aperture in the measuring tip (pinhole) in relation to the horizontal carrier Fig. 11.1: Distance from the aperture in the measuring tip (pinhole) to the reference plane of the horizontal carrier Fig. 11.2: Distance from the aperture in the measuring tip (pinhole) to the reference plane on the bottom of the horizontal carrier Revision 03/2019 EN... -
Page 40: Troubleshooting
PRIMES is registered in the German Used Appliance Register (Elektro-Altgeräte-Register (EAR)) as a manu- facturer with the number WEEE reg. no. DE65549202. Within the EU, you are welcome to send your PRIMES measuring devices to the following address to dis- pose of them free of charge: PRIMES GmbH Max-Planck-Str. -
Page 41: Declaration Of Conformity
FocusMonitor FM+ Declaration of conformity Revision 03/2019 EN... -
Page 42: Technical Data
FocusMonitor FM+ Technical data Measurement parameters Power range 30 – 25 000 W Wavelength range 0.4 – 12 µm Beam dimensions 100 – 3 000 µm (up to 5 000 µm optional) Max. power density range CO and NIR laser See Tab. 18.4 on page 49 and Tab. - Page 43 FocusMonitor FM+ Dimensions and weight Dimensions (L x W x H) 280 x 242 x 218 mm Weight (approx.) 8.5 kg Environmental conditions Operating temperature range 10 – 40 °C Storage temperature range 5 – 50 °C Reference temperature 22 °C Permissible relative humidity (non-condensing) 10 –...
-
Page 44: Dimensions
FocusMonitor FM+ Dimensions View A All dimensions in mm (general tolerance ISO 2768-v) Revision 03/2019 EN... - Page 45 FocusMonitor FM+ View A All dimensions in mm (general tolerance ISO 2768-v) Revision 03/2019 EN...
-
Page 46: Appendix
FocusMonitor FM+ Appendix 18.1 System control (option) An optional connection to the system control is available. Please contact your PRIMES sales partner with any questions. Revision 03/2019 EN... -
Page 47: Variety Of Detectors And Measuring Tips
FocusMonitor FM+ 18.2 Variety of detectors and measuring tips Different measuring tips and detectors are available for different wavelengths, power density ranges, or beam divergences so that measurements can be recorded at a maximum power in each case. This ensures that an optimum configuration of the FocusMonitor FM+ is achieved. -
Page 48: Limit Values For Measuring Operation With Co
FocusMonitor FM+ 18.3 Limit values for measuring operation with CO high power measuring tip Measuring tips can be operated up to the following maximum power densities: Power Maximum power density Up to 6 kW 30 MW/cm² 6 kW bis 12 kW 20 MW/cm² Up to 20 kW 15 MW/cm²... - Page 49 FocusMonitor FM+ Arrangement in the table Table element White Green Yellow Orange White with red values Speed in rpm 1875 3750 7500 7500 with inert gas purging Risk of destruction! Power in kW Tab. 18.4: Power density in MW/cm² The durability of the measuring tips is not only dependent on the power density, but also on the purity of the surface (dust, particles, fingerprints).
-
Page 50: Limit Values For Measuring Operation With Yag High Div Measuring Tip
FocusMonitor FM+ 18.4 Limit values for measuring operation with YAG high div measuring tip Measuring tips can be operated up to the following maximum power densities: Power Maximum power density Up to 5 kW 10 MW/cm² Up to 12 kW 8 MW/cm² Up to 20 kW 6 MW/cm²... - Page 51 FocusMonitor FM+ Arrangement in the table Table element White Green Yellow Orange White with red values Speed in rpm 1875 3750 7500 7500 with inert gas purging Risk of destruction! Power in kW Tab. 18.6: Power density in MW/cm² The durability of the measuring tips is not only dependent on the power density, but also on the purity of the surface (dust, particles, fingerprints).
-
Page 52: Check/Replace The Measuring Tip
FocusMonitor FM+ 18.5 Check/replace the measuring tip 18.5.1 Check the measurung tip NOTICE Damage/Destruction of the measuring tip The very small pinhole of the measuring tip can quickly become blocked by dirt particles or when touched with the bare hands. X Wear powder-free latex gloves during assembly/disassembly and ensure that the environ- ment is free of dirt and dust. -
Page 53: Assemble The Measuring Tip
FocusMonitor FM+ 6. Pull the retaining plate up slightly and then forwards until it loosens and can be removed easily. 7. Carefully remove the measuring tip. 18.5.3 Assemble the measuring tip 1. Insert the new measuring tip (note that the inlet aperture is located on the convex side, see Fig. 18.3 on page 53) or turn the measuring tip around. -
Page 54: Replace The Detector
FocusMonitor FM+ 18.6 Replace the detector Generally, the FocusMonitor FM+ is equipped with a DFIG-PS+ or DFC+ detector (see Fig. 18.5 on page 54). Detectors with different sensitivity or different time behavior can be used for special applications. More information regarding the variety of detectors to ensure an optimum configuration of the FocusMonitor FM+ is provided in the Tab. -
Page 55: Disassemble The Detector
FocusMonitor FM+ 18.6.1 Disassemble the detector 1. Turn off the power supply. 2. Remove the plastic screws (D) from the detector (see Fig. 18.6 on page 55). Fig. 18.6: 3. Carefully remove the detector from the position. X Please do not pull the cables. 4. -
Page 56: Assemble The Detector
FocusMonitor FM+ 18.6.2 Assemble the detector Only use isolating plastic screws to fasten the detector to prevent any electric noise signals from being interspersed. Do not forget the foam rubber spacer during installation, otherwise the rota- tional disc could be mechanically blocked by the screws. The foam rubber spacer also ensures mechanical decoupling of the detector.
