Summary of Contents for Bennett & Ross TT-1012

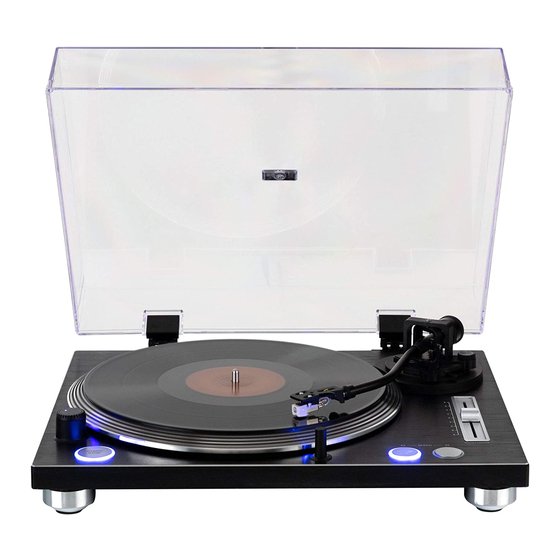

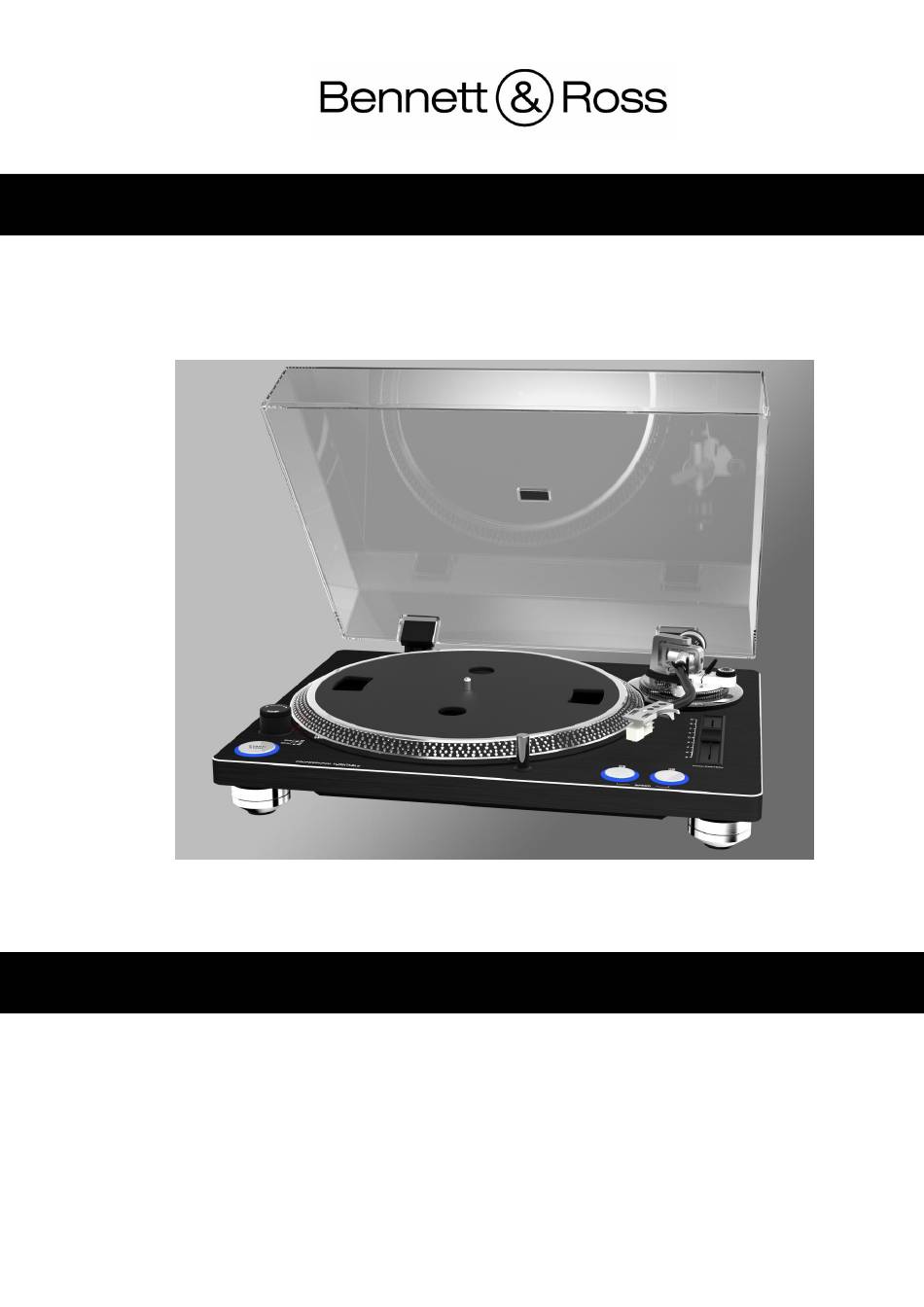

- Page 1 Turntable TT-1012 with Built-in Phono Pre-amplifier ArtNr.: 00063199 Operating Manual Revision: *-07-2019...
-
Page 2: Table Of Contents
TT-1012 © 2019 This manual is protected by copyright. Any copying or reprint, even in excerpts, is only allowed with written consent of Musikhaus Kirstein GmbH. The same applies to reproduction or copying of images, even in altered form. Contents Included Items ........................ - Page 3 Other product, brand or company designations specified in this document are possibly the trademarks of their respective owners. Compliance with all applicable copyright laws is the responsibility of the user of this document. 2020-01-02 Plattenspieler m. Bluetooth TT-1012 / ArtNr.: 00063199...
-
Page 4: Included Items
Unit Weight 4.58kg Driving Method Belt drive Speeds 33-1/3 and 45RPM S/N ratio 35dB Cartridge type Moving Magnet Needle Audio Technica AT-3600L Aluminum platter （12’’）diameter Turntable recommended Counterweight on tonearm 3.5 g Plattenspieler m. Bluetooth TT-1012 / ArtNr.: 00063199 2020-01-02... -
Page 5: Product Description
Cueing lever Metal Finishing Tonearm Aluminum Platter Pitch Control Knob Strobe Dots Headshell Strobe 45 RPM speed START/STOP button 33 RPM speed Counterweight Target light Anti-Skating-knob Hinges RPM = revolutions per minute 2020-01-02 Plattenspieler m. Bluetooth TT-1012 / ArtNr.: 00063199... -
Page 6: Connections
TT-1012 Connections Analog audio output jacks(L/R) PHONO/LINE Selection Switch PC encoding DC input connector Power ON/OFF button BT transmitter ON/OFF button (BT = Bluetooth) Feet Plattenspieler m. Bluetooth TT-1012 / ArtNr.: 00063199 2020-01-02... -
Page 7: Headshell
TT-1012 Headshell Electrical Connections of the Headshell 2020-01-02 Plattenspieler m. Bluetooth TT-1012 / ArtNr.: 00063199... -
Page 8: Intended Purpose
Always remove the record before relocating or moving this unit. Moving the unit with a record on the turntable could damage the record, the stylus and the cartridge or could cause a malfunction. Plattenspieler m. Bluetooth TT-1012 / ArtNr.: 00063199 2020-01-02... -
Page 9: Installation And Operation
The rubber strap can then be easily positioned around the pin with two fingers. 2020-01-02 Plattenspieler m. Bluetooth TT-1012 / ArtNr.: 00063199... -
Page 10: Attaching And Removing The Turntable Cover
The turntable cover will stay open in this position. To close: Gently lower the turntable cover until it is closed. Be careful not to pinch your hand when in opening and closing the turntable cover. Plattenspieler m. Bluetooth TT-1012 / ArtNr.: 00063199 2020-01-02... -
Page 11: Adjusting The Tonearm
"Level balance" means that the tonearm is parallel to the record on the platter, and that the tonearm pipe, therefore, should not tilt toward the counterweight side or the headshell side. Return the tonearm to the arm rest and fasten the arm clamp. 2020-01-02 Plattenspieler m. Bluetooth TT-1012 / ArtNr.: 00063199... - Page 12 Anti-Skating Adjustment Turn the Anti-Skate Knob so that the number corresponding to the required tracking force is opposite the index line. The numbers on the Anti-Skate Knob correspond to 1 g tracking force. Plattenspieler m. Bluetooth TT-1012 / ArtNr.: 00063199 2020-01-02...
-
Page 13: Handling Records
When holding a record or removing it from its sleeve, avoid touching the grooves by holding the record by its label and edge with one hand or by holding it by its edge with both hands. 2020-01-02 Plattenspieler m. Bluetooth TT-1012 / ArtNr.: 00063199... -
Page 14: Playing Records
RPM. Turn the START/STOP rotation knob to START to start the turntable. When the START/STOP rotation knob is set to START, the turntable will start rotating and the blue LED will light. Plattenspieler m. Bluetooth TT-1012 / ArtNr.: 00063199 2020-01-02... -
Page 15: Cleaning Records
• After you finish playing a record, always put it back into its sleeve for storage. Leaving a record unprotected could result in warping or scratching. • Do not use cracked records. 2020-01-02 Plattenspieler m. Bluetooth TT-1012 / ArtNr.: 00063199... -
Page 16: How To Set Pitch
Slightly lift the cue lever or the head-shell hook and return the tonearm to its resting position. Turn the START/STOP rotation knob to STOP to stop the turntable. When the turntable stops, the blue LED will also become unlit. Plattenspieler m. Bluetooth TT-1012 / ArtNr.: 00063199 2020-01-02... -
Page 17: Recording With A Computer
When finish the encoding, click STOP icon. Open the Files icon in the software and save the project. The project can be exported in MP3 or other audio format as you like. 2020-01-02 Plattenspieler m. Bluetooth TT-1012 / ArtNr.: 00063199... - Page 18 The Bluetooth name is TT-1012. 3. The turntable transfers your songs from your smartphone or audio device via BT to the turntable and the connected cinch cable forwards it directly to the HiFi- system. Plattenspieler m. Bluetooth TT-1012 / ArtNr.: 00063199 2020-01-02...
-
Page 19: Maintenance
If a stylus becomes dirty, use a commercially available stylus cleaner or similar product to clean it. Do not rub the stylus tip forcefully with anything hard. Do not wipe the stylus with thinner or other chemicals. 2020-01-02 Plattenspieler m. Bluetooth TT-1012 / ArtNr.: 00063199... -
Page 20: Weee Declaration (Waste Of Electrical And Electronic Equipment)
Musikhaus Kirstein GmbH and have no authority to bind Musikhaus Kirstein GmbH legally in any way. Musikhaus Kirstein GmbH Bernbeurener Str. 11 86956 Schongau – Germany Telefon/Phone: 0049-8861-909494-0 Telefax/Fax: 0049-8861-909494-19 Plattenspieler m. Bluetooth TT-1012 / ArtNr.: 00063199 2020-01-02...
