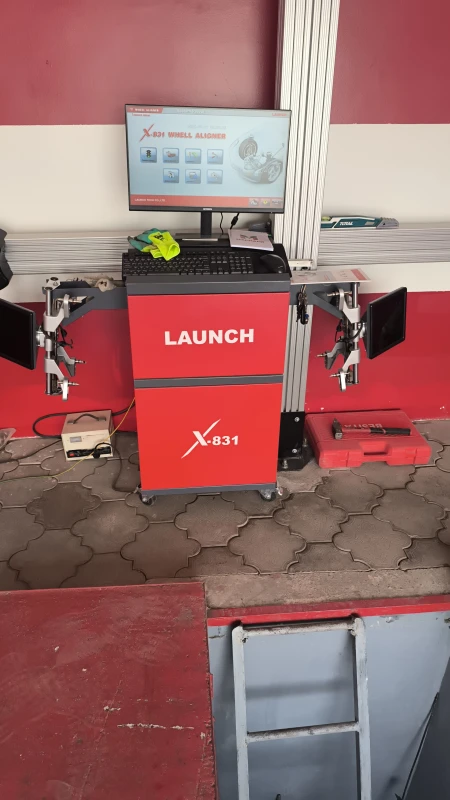

User image 682035506019c

Subscribe to Our Youtube Channel

Summary of Contents for Launch X-831M

  • Page 1 V1.01.000 2015-09-23...
  • Page 2 LAUNCH or its affiliates. In other countries where any of the LAUNCH trademarks, service marks, domain names, logos and company names are not registered, LAUNCH...
  • Page 3  The power voltage of X-831M wheel aligner is of damaging the locking mechanism or other parts. AC220V±10% 50±1Hz / AC110V±10% 60±1Hz (It ...
  • Page 4: Table Of Contents

    LAUNCH X-831M Wheel Aligner Installation and Parts Manual Table of Contents General Information ............. 1 Brief Installation Introduction ........1 Precautions before Installation ........1 Installation Tools ............1 Power Supply Requirement ........1 Unpacking ..............2 Post/Beam Box ............2 Accessory Carton ............
  • Page 5: General Information

    For easy use and So in order to protect electronic products such as measurement, the following four factors should be taken X-831M Wheel Aligner, it is advisable to use AC power into consideration during installation: supply voltage stabilizer.
  • Page 6: Unpacking

    LAUNCH X-831M Wheel Aligner Installation and Parts Manual General Information Unpacking X-831M wheel aligner is packed in three separated boxes: a post/beam wooden box, an accessory carton and a cabinet carton. Post/Beam Box For unpacking of the post/beam box, please take Fig.2.1 as reference.
  • Page 7: Main Component Structure And Parts List

    LAUNCH X-831M Wheel Aligner Installation and Parts Manual Parts List Main Component Structure and Parts List Complete Set Structure and Components List Fig.3.1 Components List (Note: Take the parking list as the criterion) ERP Code Part Name 206010597 Lateral beam assembly...
  • Page 8: Structures Of Main Components

    LAUNCH X-831M Wheel Aligner Installation and Parts Manual Parts List Structures of Main Components Post assembly Fig. 3.2...
  • Page 9 LAUNCH X-831M Wheel Aligner Installation and Parts Manual Parts List Parts and components list of post assembly: ERP Code Part/Component Qty. ERP Code Part/Component Qty. Name Name P01 103209008 Post base plate Stud, GB/T901-1988, M10*60 Cover shape nut, Plain washer,...
  • Page 10: Lateral Beam Assembly

    LAUNCH X-831M Wheel Aligner Installation and Parts Manual Parts List Lateral beam assembly Fig.3.3 Parts and components list of lateral beam assembly: ERP Code Part/Component Name Qty. B01 103209016 Camera cover B02 103230288 Aluminum lateral beam B03 103209018 Front decoration plate B04 103209019 Decoration support plate Cross recessed countersunk head screws, GB/T819.1-2000, M4*10...
  • Page 11: Front Target Assembly

    LAUNCH X-831M Wheel Aligner Installation and Parts Manual Parts List Front target assembly Fig. 3.4 Parts and components list of front target assembly: ERP Code Part/Component Name Qty. F01 107022380 Target label F02 104011261 Front target casing F03 103010266 Hexagon plane end set screws, GB/T77-2000, M5*12...
  • Page 12: Rear Target Assembly

    LAUNCH X-831M Wheel Aligner Installation and Parts Manual Parts List Rear target assembly Fig. 3.5 Parts and components list of rear target assembly: ERP Code Part/Component Name Qty. F01 107022380 Target label F02 104011262 Rear target casing F03 103010266 Hexagon plane end set screws, GB/T77-2000, M5*12...
  • Page 13: Components Structure

    The installation of wheel clamp is crucial to the test Cabinet result. The claws should be in even contact with the The cabinet assembly of X-831M wheel aligner is an wheel rim without touching the lead weight. operation control platform. It consists of cabinet, Avoid hitting during operation.
  • Page 14 LAUNCH X-831M Wheel Aligner Installation and Parts Manual Components Structure The turntables are placed at the front wheel positions of the vehicle on the lift. Use the lock pin to lock the turntable before driving the vehicle on. Pull out the lock pin after the vehicle is stopped and the front wheels are at the centers of the turntables.
  • Page 15: Installation And Adjustment

    Users need not to do these but to provide installation lengthen the line in the direction of post. conditions as follows: X-831M wheel aligner is a type of 3. Confirm the post base line B three dimensions infrared image wheel aligner, and it...
  • Page 16: Adjust The Computer Host

    Print the test page to see if it is normal. Fig.5.5 5. The adjustment for the computer host is successful if all the above steps are normal. Exit X-831M Stand the post and fasten it on the ground. wheel aligner software operating system and the Start installing the lateral beam as shown in Fig.5.6.
  • Page 17 LAUNCH X-831M Wheel Aligner Installation and Parts Manual Installation and Adjustment Fig 5.8 Installation calibration diagram...
  • Page 18: Camera Calibration

    Enter the password (Note: the password is provided by left and right turntables. Click [OK] icon, the next interface is LAUNCH), and click [OK] button, the interface is as shown as shown in Fig.5.13. in Fig.5.10.
  • Page 19: Target Calibration

    LAUNCH X-831M Wheel Aligner Installation and Parts Manual Installation and Adjustment the calibration frame back by another 600mm, and then click spring snap, and then click [OK] button to confirm, the whole [OK] icon, the next interface is as shown in Fig.5.15.
  • Page 20 LAUNCH X-831M Wheel Aligner Installation and Parts Manual Installation and Adjustment Fig.5.19 Fig.5.22 According to the prompts on the screen, turn the FL wheel According to the prompts on the screen, finish the by -25~ -16 degrees, i.e. turn it forward. After finished, the calibration operations for FR, RR and RL wheels system will automatically perform the next step.
  • Page 21: Precautions And Solutions

    Secondly, check the light path. Sway a target near the camera lens and observe if there is an image appears. Precautions Calibration for installation is the base of X-831M  Wheel Aligner, so every step of operations must be performed very careful. Otherwise, test precision and equipment usage will be affected.
  • Page 22: Spot Inspection Item Table Before Installation

    LAUNCH X-831M Wheel Aligner Installation and Parts Manual Appendix Spot Inspection Item Table before Installation For X-831M Wheel Aligner Inspection Item Installation Actual Measurement Evaluation Requirement Value Comments Post installation height (vertical distance from ground 2653mm to post top) Height of positioning platform (vertical distance from...
