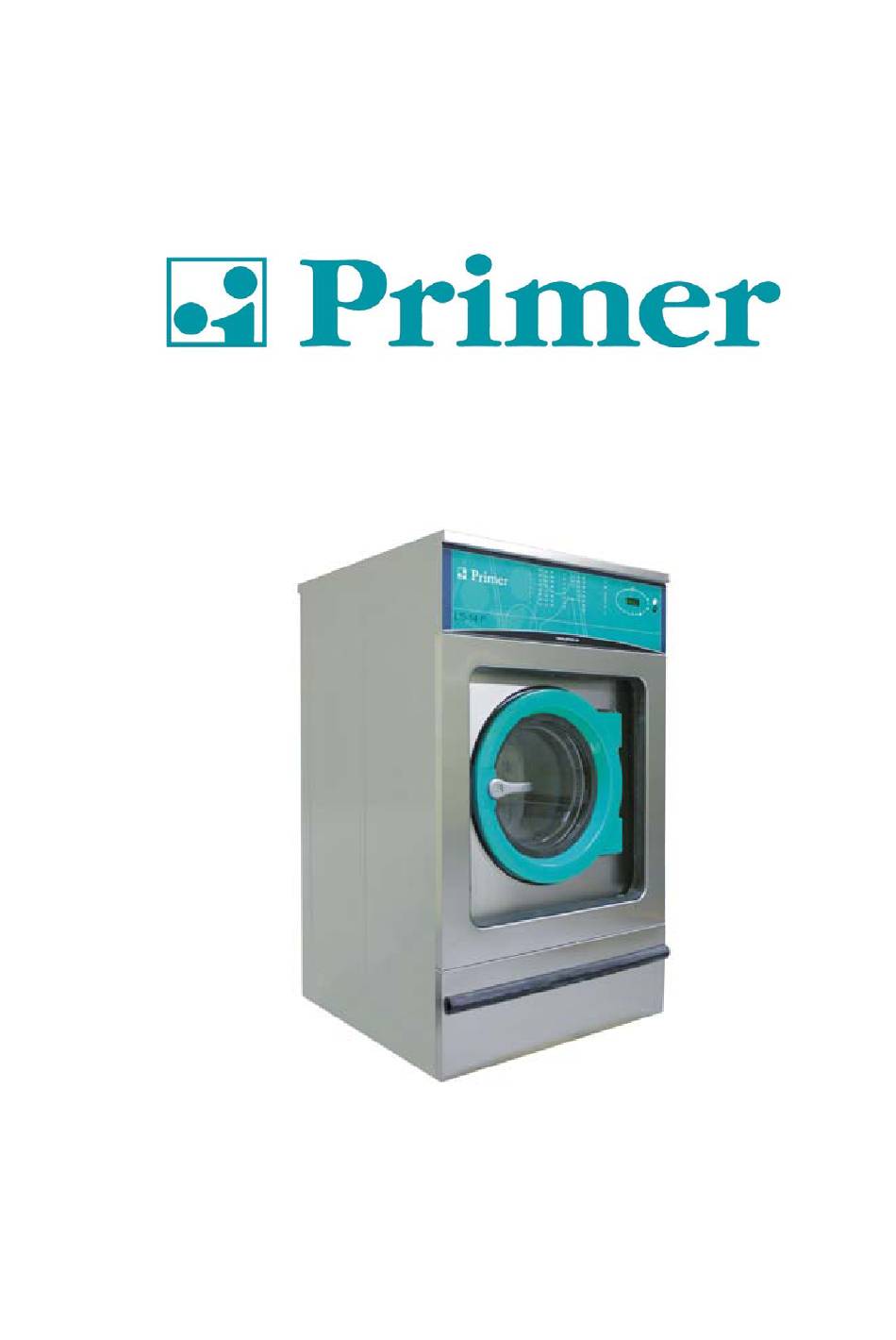

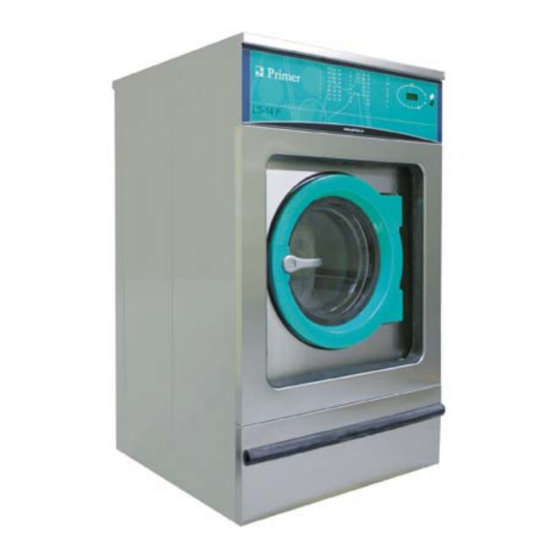

- Page 1 User Manual MACHINES FOR THE INDUSTRIAL LAUNDRY WASHER EXTRACTOR LS / TS -11-14-19-26 P (v 5.0)
- Page 3 ºC ºC ºF ºF TM(min) TIME(min) MOTION ºC ºC ºF ºF TIME(min) TIME(min) MOTION MOTION ºC ºC ºF ºF TIME(min) TIME(min) MOTION MOTION ºC ºC ºF ºF TIME(min) TIME(min) MOTION MOTION...
- Page 4 ºC ºC ºF ºF TIME(min) TIME(min) MOTION MOTION ºC ºC ºF ºF TIME(min) TIME(min) MOTION MOTION ºC ºC ºF ºF TIME(min) TIME(min) MOTION MOTION ºC ºC ºF ºF TIME(min) TIME(min) MOTION MOTION...
-
Page 5: Interpretation Of Tables: Symbols And Values
ENGLISH INTERPRETATION OF TABLES: SYMBOLS AND VALUES SYMBOL MEANING VALUES CONTROLS TRAY POWER SWITCH PREWASH SYSTEMS SOFTENER BLEACH 0: Soak 1: Pre-wash 2: wash 3: Rinse 1 PHASE 4: Rinse 2 5: Short spin 6: Final rinse (softener) 7: Long spin BLOCK NO. -
Page 6: Important Instructions Regarding Safety And Use
ENGLISH IMPORTANT INSTRUCTIONS REGARDING SAFETY AND USE WARNING: To reduce the risk of electrical shocks 12- Failure to comply with any of the instructions or injury when using the appliance, the basic given in the Instruction Manual may result in precautions should be observed, including the personal injury to the user. -
Page 7: Table Of Contents
ENGLISH CONTENTS INTERPRETATION OF TABLES: SYMBOLS AND VALUES ..................3 IMPORTANT INSTRUCTIONS REGARDING SAFETY AND USE ................4 INTRODUCTION ............................... 6 USE .................................... 7 Controls ................................7 Programmes ..............................7 Operation ................................9 2.3.1 Programme execution ..........................9 2.3.2 Programme end ............................9 CONFIGURATION (advanced) .......................... -
Page 8: Introduction
ENGLISH IMPORTANT INSTRUCTIONS REGARDING SAFETY AND USE WARNING: To reduce the risk of electrical shocks 12- Failure to comply with any of the instructions or injury when using the appliance, the basic given in the Instruction Manual may result in precautions should be observed, including the personal injury to the user. -
Page 9: Use
ENGLISH 2 USE Controls Screen (2) The screen has 4 displays with 7 segments each and gives information regarding the current operation. Mains switch (4) On/Off The switch has two positions. Press “I” to switch on the washing machine and “O” to switch it off. - Page 10 ENGLISH NOTE: When the thermal stop is deactivated, the programmed wash time starts to run immediately without waiting for the programmed water temperature to be reached...
-
Page 11: Operation
ENGLISH Operation it is not possible to pause the machine, and therefore pressing the START key will have no effect. This machine has been designed to wash or treat most 2.3.2 Programme end materials. Its use for other purposes than those given is considered as undue and dangerous. -
Page 12: Configuration (Advanced)
ENGLISH 3 CONFIGURATION (advanced) Prg (programme selection) To go to the menu, while the machine is on and stopped, press the INC and DEC ( , ) keys together Press start to access the programme selection; the for 2 seconds. The two main menus of the machine programmes are displayed followed by ‘y’... -
Page 13: Bloc (Modify/Delete Blocks)
ENGLISH bLOC (Modify/delete blocks) Timr (Remaining time) The timer can be activated to display the time It is possible to modify the time and temperature of remaining for each programme, provided that the each phase and even delete phases. thermal stop, ECO and extra rinse functions are First, refer to the table of Standardised Programmes switched off. -
Page 14: Self-Service
ENGLISH 4 SELF-SERVICE Operation Self-service machines can be operated using different The configuration of the machine is different for self- devices: service models. Pay centre (standard configuration) There is no mains switch on the control panel. To 2- Coin slot. switch the machine on and off, use the switch (circuit 3- Card breaker) at the rear of the machine. - Page 15 ENGLISH slot after 30 seconds, the word “FREE” is displayed on Bosnia and Herzegovina the screen, indicating that the machine is available. Bangladesh Press any button to view the programmes. Switzerland With this type of coin-operated machine, a different Dominican Republic price can be allocated to each programme.
-
Page 16: Maintenance
ENGLISH 5 MAINTENANCE If a power cut occurs, check: Electrical and mechanical irregularities The tub is drained and the door is blocked. If you want to take the clothes out of the washing machine, unlock Before calling the Technical Service Centre, check the the door by pulling down the belt located behind the following: front panel.
