Posh Domaine Installation Instructions

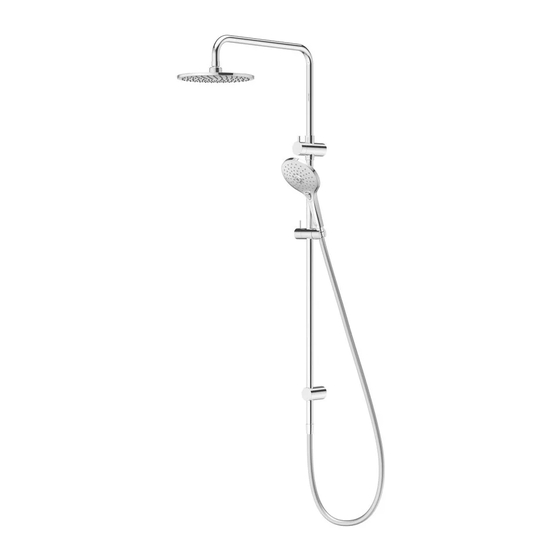

Posh Domaine Twin Rail Shower Chrome (3*)
Important Installation Considerations
1. NOTE: Some showers may not provide an effective shower when used
with gravity fed heated water systems or where pressures are less
than 150kPa at the outlet. Additionally showers with flow rates of less
than 9L/min may not allow the following to function correctly:
_ some instantaneous water heaters
_ some tempering valves
_ some thermostatic mixing valves
2. Some shower heads only operate correctly when hot and cold water
supplies are both mains pressure and may not be suitable for some
instantaneous hot water services.
3. When water pressure is in excess of 500kPa a pressure limiting device
is required in accordance with AS/NZS 3500 1.12 recommendation
1.
WATER INLET: RECOMMENDED MINIMUM HEIGHT OF
1800mm FROM FLOOR LEVEL
Max
○ 25mm
Methven warrants this product against manufacturing defects and that it is suitable for use
under the general operating conditions specified in this instruction sheet. However, regional
regulations apply and may affect your warranty. Please refer to
customer service for full details.
New Zealand
0800 804 222

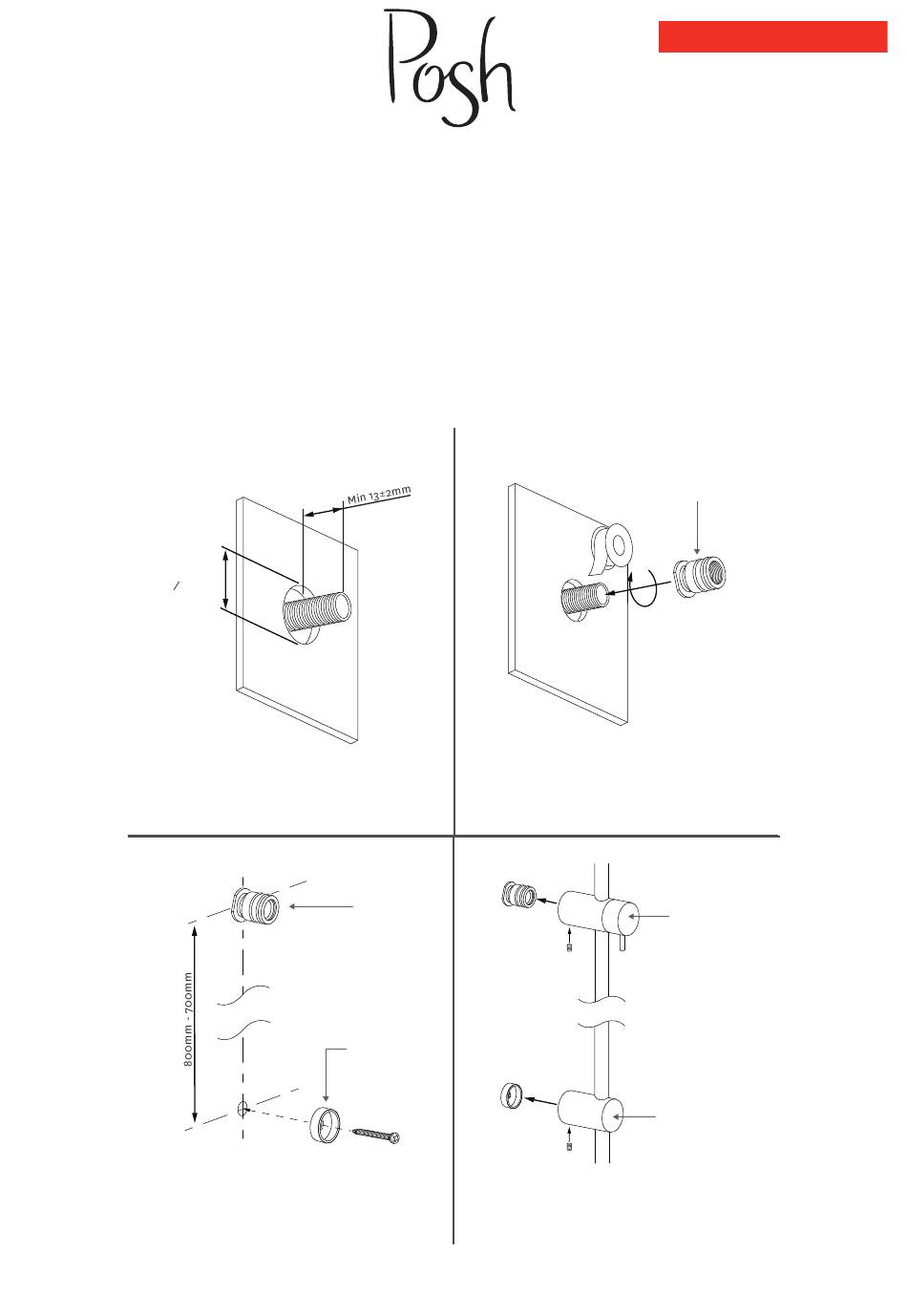

Install a ½" male threaded connection at the
recommended height on wall, ensuring that a
98-0284
minimum of 13±2mm of thread protrudes past the
finished wall.
Correct water proofing must be applied.
3.
5.
Water Inlet
Connector
Screw the bottom rail connector to a wall stud
Connect the round nut at the bottom of the
making sure it is vertically in line with the top rail
overhead tube to the upside outlet of the diverter
connector. Maximum centre distance between the
valve body.
top and bottom shower connections is 800mm.
Plumbers, please ensure a copy of the Installation
CLEANING
Instructions are left with the end user for future reference
Water contains lime which remains on the surface
after the water has evaporated. These lime deposits
can be prevented from forming by wiping
Australia
Australia
1300 638 483
Australia
1300 638 483
1300 638 483
Filter Washer
Ball Joint
2.
UK
UK
0800 195 1602
0800 195 1602
Loosen the 2 grub screws with the Allen Key supplied
ISSUE A
and remove Water Inlet Connector from diverter.
ISSUE A
DECEMBER 2015
Apply thread tape (or Similar) to the ½'" connection
DECEMBER 2015
and screw Water Inlet Connector onto the ½"
connector.
4.
6.
Water Inlet
Connector
Bottom Rail
Connector
Make sure a washer is in both ends of the hose.
Screw hose onto lower outlet on wet rail, attach
Check the grub screws are wound out. Push the rail
handset and place firmly in holder. Tilt and rotate
brackets onto the top and bottom rail connectors
head to the desired position.
until they are against wall. Secure with grub screws.
To clean the chrome-plated surfaces use a soft
cloth, soap and warm water. Never use cleaning
agents that contain a corrosive acid or a scouring
Installation Guide
Installation Guide
Technical Specifications:
Technical Specifications:
Installation Instructions
Operating Pressure:
Operating Pressure:
Min: 150kPa/1.5bar
Min: 150kPa/1.5bar
Max: 500kPa/5.0bar*
Max: 500kPa/5.0bar*
Optimum: 150kPa/1.5bar - 500kPa/5bar
Optimum: 150kPa/1.5bar - 500kPa/5bar
Recommended installation of pressure limiting
Recommended installation of pressure limiting
valve if supply exceeds 500kPa
valve if supply exceeds 500kPa
Operating Temperature:
Operating Temperature:
Hot: Max 80°C*
Hot: Max 80°C*
Cold: Min 5°C
Cold: Min 5°C
Inlet Connections:
Inlet Connections:
All ½" BSP
All ½" BSP
NOTE:
NOTE:
- After installation all connections must be
- After installation all connections must be
checked for leaks
checked for leaks
- All installations must be carried out in
- All installations must be carried out in
compliance with relevant water regulations*.
compliance with relevant water regulations*.
* Regional specific regulations apply.
* Regional specific regulations apply.
Please refer to your warranty statement at
Please refer to your warranty statement at
www.methven.com
www.methven.com
Water Inlet
Connector
UK
0800 195 1602
ISSUE A
DECEMBER 2015
Top Rail
Bracket
Bottom Rail
Bracket
TWIN SHOWER
Installation Guid
Technical Specifications:
97-3057
Operating Pressure:
Mar-2018
Min: 150kPa/1.5bar
Max: 500kPa/5.0bar*
Optimum: 150kPa/1.5bar - 500kPa/5bar
Recommended installation of pressure
valve if supply exceeds 500kPa
Operating Temperature:
Hot: Max 80°C*
Cold: Min 5°C
Inlet Connections:
All ½" BSP
NOTE:
- After installation all connections must
checked for leaks
- All installations must be carried out in
compliance with relevant water regula
3.
* Regional specific regulations apply.
Please refer to your warranty statement
www.methven.com
Screw the bottom rail con
making sure it is vertically
connector. Maximum cen
top and bottom shower co
CLEANING
Water contains lime which
after the water has evapor
can be prevented from for
immediately after use.
Page 1 of 2
