Liton LRLD6 Installation Instructions

INSTALLATION INSTRUCTIONS FOR 6" ECONOMIC RETROFIT DOWNLIGHT
Before You Begin! Read these instructions completely and carefully.
Risk of fire or electric shock. LED Retrofit Kit
installation requires knowledge of luminaires
electrical systems. If not qualified, do not
attempt installation. Contact a qualified
electrician.
Risk of fire or electric shock. Install this kit
only in the luminaires that have the construction
features and dimensions shown in the
photographs and/or drawings.
Do not make or alter any open holes in an
enclosure of wiring or electrical components
during kit installation.
To prevent wiring damage or abrasion, do
not expose wiring to edges of sheet metal or
other sharp objects.
This device is not intended for use with
emergency exits.
Compatibility dimensions of housing 5-6 in
(dia) x min 5 (h) in
Components Supplied
One LED retrofit
One installation instructions sheet
The units covered in this report are intended to retrofit Type IC and Type non-IC recessed mount
Listed luminaires with instructions to remove the existing trim. The minimum dimensions of luminaries
are tabulated below. These products are intended to be used in dry or damp locations. These
products are classified as to FIRE and SHOCK hazards only.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Prepare Electrical Wiring
G r o u n d i n g I n s t r u c t i o n s
The grounding and bonding of the overall system
shall be done in accordance with National Electric
Code (NEC) Article 600 and local codes.
D i m m i n g
The LED luminaire can be dimmed with many
standard incandescent dimmers,however an
electronic low voltage version of a standard
dimmer (with neutral connection ) is recommended
for many applications.Updates in dimmer
technology and special conditions may apply
depending on the dimmer type being used.To
be assured of the latest information regarding
luminaire and dimmer compatibility, please contact
dimmer manufacturer.
5461 W. Jefferson Blvd. Los Angeles, CA 90016 • P. 800-515-4880 • F. 800-972-4880 • www.liton.com
W A R N I N G / A V E R T I S S E M E N T
!
LRLD6
R is que de choc électrique, le kit d'ins ta lla tion
L E D R e tro t re quie rt une c onna is s a nc e d e s
s ys tè me s é le c trique s d e s l umina ire s . S i v ous
n'ê te s p a s q ua li é , n e t e nte z p a s l 'ins ta lla tion.
C onta c te z u n é le c tric ie n.
R is que d 'inc e ndie o u d e c hoc é le c trique .
N 'ins ta lle z c e k it que d a ns l e s l umina ire s q ui
ont le s c a ra c té ris tique s d e c onc e ption e t le s
dime ns ions i ndiqué e s s ur l e s p hotos e t/ou
s c hé ma s .
N e f a ite s /n'a lté re z p a s l e s t rous o uve rts
da ns l 'e nc e inte d e c â bla ge o u c ompos a nts
é le c trique s l ors d e l 'ins ta lla tion d u k it.
P our p ré ve nir tout ris que d e d omma ge o u
a bra s ion, n 'e xpos e z p a s l e c â bla ge à d e s
la me s m é ta llique s o u a utre s o bje ts c oupa nts
ou p ointus .
C e t a ppa re il n 'e s t pa s c onç u p our u tilis a tion
a ve c s ortie d e s e c ours .
C ompa tibility d ime ns ions o f h ous ing 5 -6 i n
( dia ) x m in 5 ( h) i n
E l e c t r i c a l R e q u i r e m e n t s
The LED driver must be supplied with 95-132
VAC, 60 Hz.

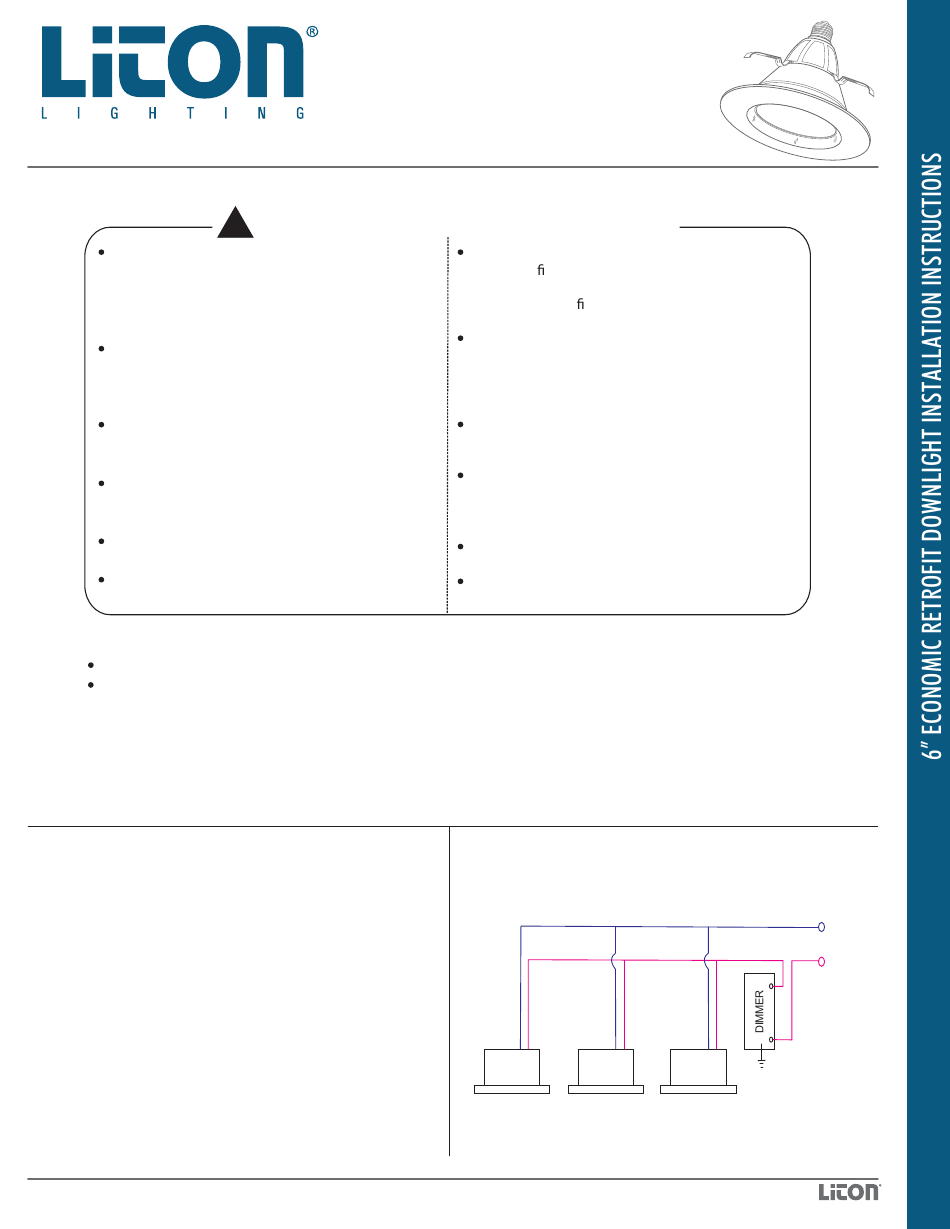

E l e c t r i c a l C o n n e c t i o n
Downlight Downlight
Product specifications subject to change without notice.
N
AC120V
L
Downlight
GND
page1
