Summary of Contents for Sensorex CX105

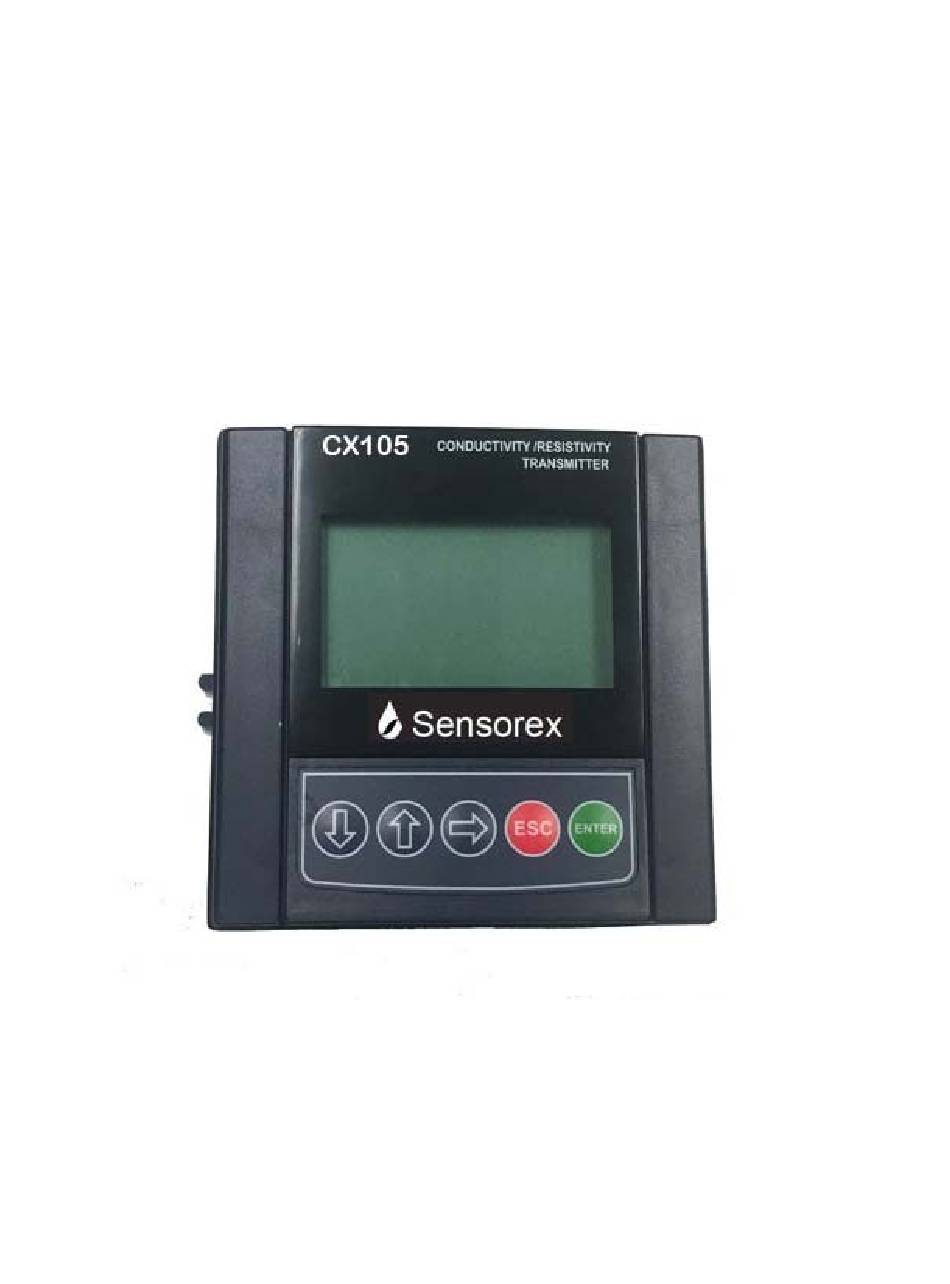

- Page 1 CX105 Conductivity/Resistivity Transmitter User Manual REV A.6 Sensorex Corporation, USA 11751 Markon Drive Garden Grove, CA. 92841 U.S.A. www.sensorex.com...
- Page 2 IMPORTANT SAFETY INFORMATION Please read and observe the following: Remove line power before wiring transmitter connections Wiring or repairs should only be performed by qualified personnel and only to an unpowered transmitter Whenever it appears that transmitter safety is questionable, disable the Transmitter to ensure against any unintended operation.
-
Page 3: Table Of Contents
Table of Contents Introduction ........................4 Dimension Drawings ...................... 4 Front and Side View ................... 4 Installation ......................4 2.2.1 Panel Installation Instructions ................ 4 2.2.1.1 Panel Cut-out ....................5 2.2.2 Field Mount Installation.................. 6 Specifications ......................... 7 Electrical Connections ....................8 System Power &... -
Page 4: Introduction
Front view Side view Panel Mount & Field Mount 2.2 Installation The CX105 conductivity/resistivity transmitters are supplied with hardware to install as panel mount or field(wall) mount. 2.2.1 Panel Installation Instructions 1) The panel mount version is designed for installation using a 1/4 DIN Punch (92mm(3.6in) x (92mm(3.6in). -
Page 5: Panel Cut-Out
3) Slide the gasket over the back of the instrument. 4) Place the instrument into the panel cut-out. 5) Attach the mounting bracket to the back of the instrument by pulling apart the quick clips and sliding it over the back of the instrument. Make sure that the quick clips are securely attached to the latches. -
Page 6: Field Mount Installation
The field(Wall) mount version requires a wall mounting kit, which includes a plastic wall mounting rear cover with gasket and 4 screws. This is included with your CX105 transmitter.. This makes it possible to install the transmitter on a variety of surfaces. -
Page 7: Specifications
Specifications Display LCD: 128*65 dot matrix, figure or alphabet: 12x8, 28x15, 32x18, etc. Update rate: 1 second Contrast: User selected, 5 levels Measurement: Conductivity: 0.05 to 500,000 μS/cm Resistivity: 1KΩ•cm to 18.3MΩ•cm TDS: 0.023 to 200,000 ppm ... -
Page 8: Electrical Connections
Electrical Connections 4.1 System Power & Loop Connections Standalone application, loop current isn’t used Power Supply Transmitter Terminals 24VDC+ V+/Loop+ 24VDC- V-/Loop- Connection to a PLC with built-in power supply PLC Terminals Transmitter Terminals 24VDC+ V+/Loop+ 24VDC- 4-20mA Loop Input V-/Loop- 4-20mA Loop Input ... -
Page 9: Electrode Input Connections
4.2 Electrode Input Connections CAUTION: • As electrical noise may interfere with electrode signal, please do not route the electrode cable in a conduit containing AC power wiring. Electrode Input Transmitter Terminals wire colors in table to left apply for all Drive Drive sensors except CS8000TC... -
Page 10: Open Collector Output Operation
4.3.2 Open Collector Output Operation The open collector output can be used as a switch Value or a warning that responds when the process value moves above or below a set point, or it can be used N.O. to generate a pulsing signal with a rate proportional N.O. -
Page 11: View Menu
View Menu Display Description Default display： μS/cm Cond Monitors the conductivity and temperature input from the electrode. 109.55 The unit of conductivity or temperature is set in the calibration menu. ℃ 28.2 All displays below are temporary. The system will return to the default display if no keys are pressed in 10 minutes. -
Page 12: Calibration Menu
OPTIONS > Press the UP or DOWN arrow keys to navigate the three items. Press the ENTER key to enter the CALIBRATION menu, the OUTPUT menu, or the OPTIONS menu. Press the ESC key to return to the view menu. 5.2.3 Calibration Menu Display... -
Page 13: Set 4~20Ma Details
PULSE the OC mode and relative parameters. The next two sections (5.2.4.1 and 5.2.4.2) use conductivity as an example, but all of the operations are the same for temperature. 5.2.4.1 Set 4~20mA Details Menu Item Description Set 4mA Output> Sets the conductivity value for 4mA current loop output. 000200. -
Page 14: Option Menu
5.2.5 Option Menu Display Description CONTRAST > Adjusts the LCD contrast for optimal viewing. A setting of 1 is the Level 1 lowest contrast, while a setting of 5 is the highest. Sets the time parameter for averaging input values. There are 8 options: 1S, 2S, 5S, 8S, 10S, 20S, 40S, and 60S. -
Page 15: Calibration
Temperature Simulation The temperature input to the CX105 is a PT-1000 RTD, where 1000 Ohms (Ω) is equal to 0 ℃ and a change of 3.85 Ω equals to 1℃ difference. (1000 Ω = 0 ℃, 1096 Ω = 25 ℃) ... -
Page 16: Conductivity Simulation
Step 2: Set the conductivity in the same manner as the wet calibration procedure. Step 3: Connect a different value resistor to the "Drive" and “Ground" terminals, and verify the linearity. If the transmitter displays an incorrect value (±2% of reading), contact Sensorex technical support. Parts per Million (PPM) Factor When the unit in the calibration menu is PPM, the following information is useful. -
Page 17: Ordering Information
Mounting Bracket for Transmitter, Panel Mount (included with CX105, order when lost or damaged) AR100-15 Transmitter Gasket (included with CX105, order when lost or damaged) AR100-17 Mounting Kit for Transmitter, Field Mount (included with CX105, order when lost or damaged)
