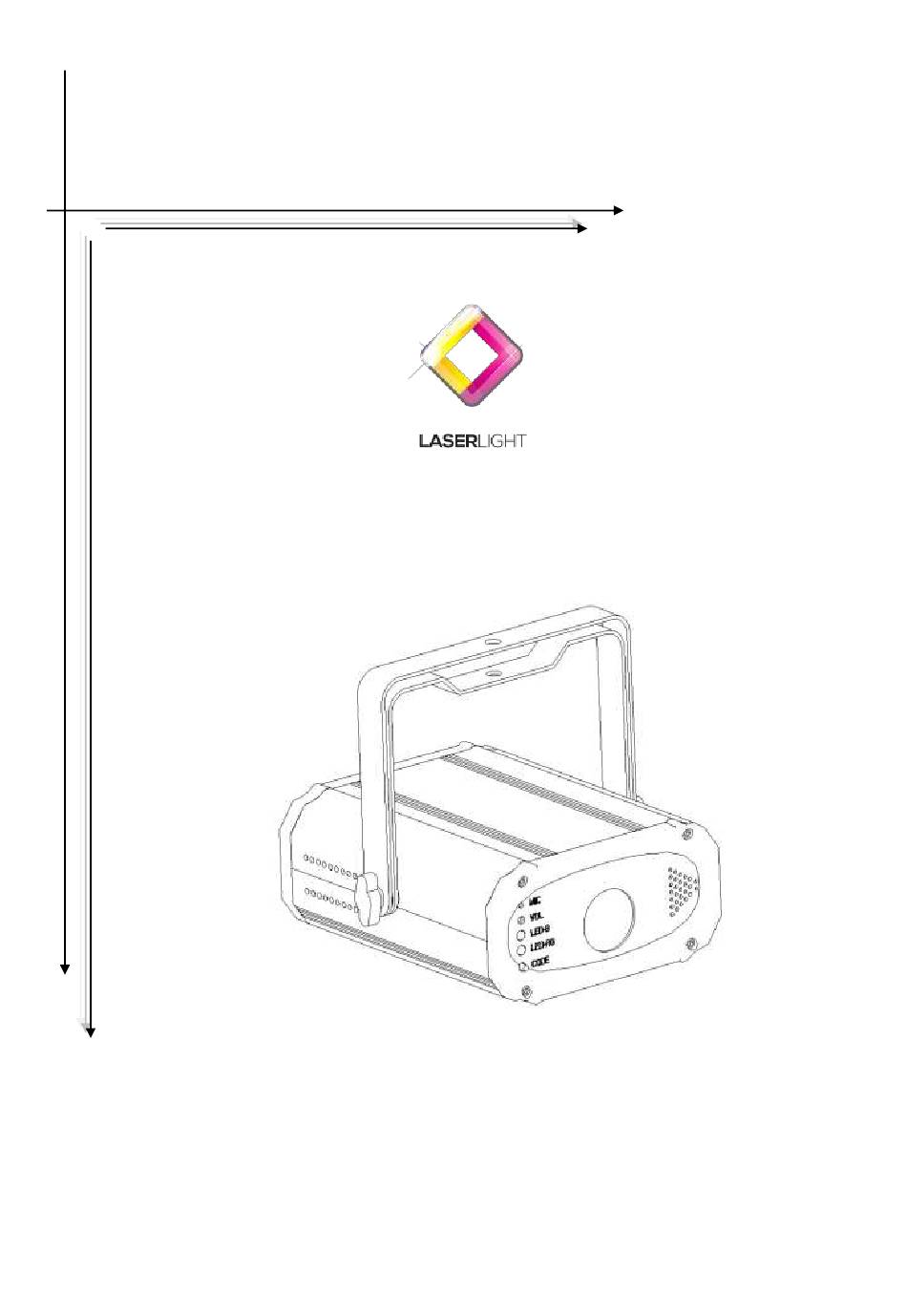

- Page 1 Mini clock laser light User manual Please read this manual carefully before use!
- Page 2 Mini clock laser user manual Contents Introduction & Caution----------------------------------------------------------------P2 Silkscreen --------------------------------------------------------------------------------P3 Safety instruction/Installation instruction--------------------------------------P4 Function instruction--------------------------------------------------------------------P5 IR Remote control/Time setting --------------------------------------------------------P6 Keyboard function/Rigging--------------------------------------------------------------P7 Product size-------------------------------------------------------------------------------P8 Clearing and Maintenance/caution-------------------------------------------------P8 Warranty card------------------------------------------------------------------------------P8 - - 1 - -...
- Page 3 Mini clock laser user manual Introduction Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. And please keep the manual carefully for future reference.
- Page 4 Mini clock laser user manual Symbol Instruction On The Device ------------------------------------------------------------------------------- CE Certificate ------------------------------------------------------------------- Only indoor using ----------------------------------------------------------------------- Environmental protection ----------------------------------------- The minimum distance from lighted objects(meter) ------------------------------------------------------------ Max ambient Temp --------------------------------------------------- Max housing Temp ------------------------------------------------------------------------- Safety caution ------------------------------------------------------------------------- Be careful of burn ------------------------------------------------------------------------ Danger high voltage ------------------------...
-
Page 5: Safety Instruction
Mini clock laser user manual Safety instruction Once after received this product , please take and put carefully. And check cautiously that whether the product was damaged or not during the transportation, if yes, please not use this fixture and contact local dealers or manufacturers as soon as possible. - Page 6 Mini clock laser user manual 7. Built-in pattern: 40 Static patterns, 60 dynamic patterns 8. Surface temp: Tb=35ºC ( this data testing when the environment temp is 25ºC) 9. Modulation: TTL 10. N.W：1.2KG G.W：2.2KG 11. Product size:：208 X 179 X 162mm 12.
- Page 7 Mini clock laser user manual 【F】Safety Lock，control the laser. The light open when at ON status, closed when at OFF. 【G】Interconnection switch, to turn on or off the laser by long-distance. 【H】Key switch，change the control mode: Auto—Sound-- Analog Clock-- Digital clock-- keyboard 【I】Keyboard connection,USB and PS2 interface connection；...
- Page 8 Mini clock laser user manual Keyboard function Press F1, select mode: Auto—Sound-- Analog Clock-- Digital clock-- text editing PressF2, 7 color to selectable. When editing text, press ESC to delete the text. When editing text, press (Back Space) to last step. ...
- Page 9 Mini clock laser user manual light weight . 3. Don't stand under the light when installing, disassembling, repairing or maintaining the light. 4. Please use safety chain to ensure good installation. 5. Fix the M8 screw of the hook clamp in ￠12.5mm hole of the light handle. Lighting dimension Cleaning and maintenance Cleaning should be performed every 15-day period, by using a sponge which is dipped with alcohol,...
- Page 10 Mini clock laser user manual normally and lifetime service. We won't provide warranty if the damage is caused by artificial or force majeasure event. Please cut this warranty card and shipped it along with the product to our factory when applying for warranty. Product：...
