LaserLight LL-4WLD RGB User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Professional stage animation laser light
LL-4WLD RGB
RoHS
User manual
Please read over this manual before operating the light

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LL-4WLD RGB and is the answer not in the manual?

Questions and answers

Related Manuals for LaserLight LL-4WLD RGB

Summary of Contents for LaserLight LL-4WLD RGB

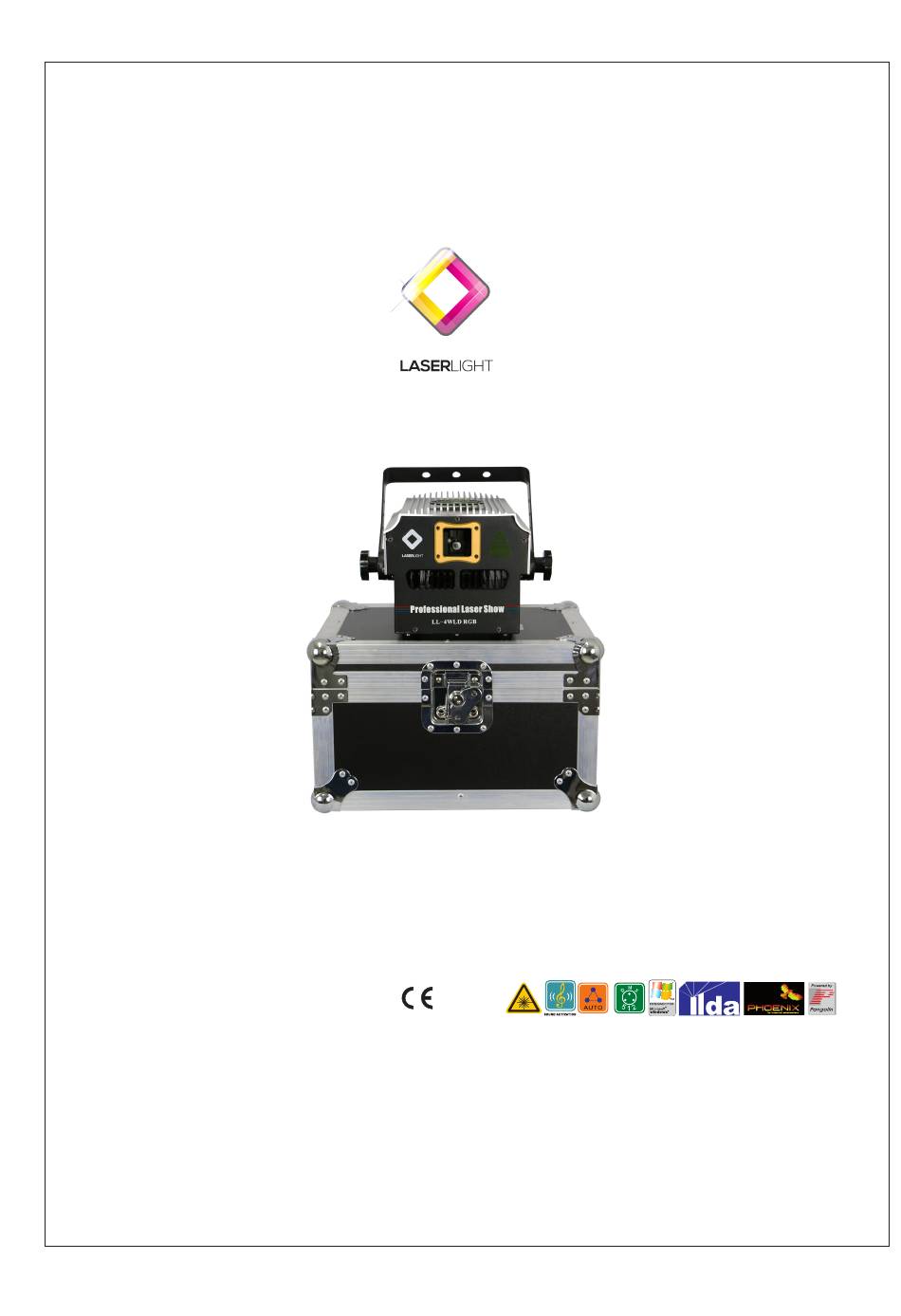

  • Page 1 Professional stage animation laser light LL-4WLD RGB RoHS User manual Please read over this manual before operating the light...

  • Page 2: Table Of Contents

    TABLE OF CONTENT Brief ......................1 Packing list ....................1 Opening the package..................1 Pack list......................2 Installation and safety instruction ..............2 Installation location..................2 Installation caution..................2 Power supply and signal connect .................3 Connect the power and control .................3 Connect the signal cable....................3 Operation instruction ....

  • Page 3: Brief

    First、Brief Thank you for purchasing of our professional laser show system. We always try to develop our product with high-tech and high perform ance to meet your requirement and expectation. The unit is designed strictly according to the international standard. The control way is single or master/slave in option.The manual is included the skill parameter and detail instructions etc.

  • Page 4: Pack List

    2 - 3 Spare parts With of exception of this equipment, the pacing enclosed as following Package List Projector 1pcs Power line 1pcs The manual 1pcs Third、installation and safety instruction 3 - 1 installation: 1, Installation location Before the installation, to ensure the stability of the installation points, can withstand the product weight at least ten times more than the bearing structure.

  • Page 5: Power Supply And Signal Connect

    2, Do not frequent switching of light, so as not to affect the light life, and try to avoid prolonged open, ensure that the ambient temperature does not exceed 35 ℃. Using before pls must be check power supply link with earth 、power supply and signal connect Fourth...
  • Page 6 Controller DMX512 Control line Control line - - - - - - - - - - - - - - - First unit Second unit Nth unit Caution: Please remember the signal output of last machine must connect the attached circle plug .The circle plug connect a 120 resistor between 2 feet and 3 feet canon plug.

  • Page 7: Operation Instruction

    五：Operating instructions TFT display menu Settings, as following: Main Menu Dmx Address Auto In-play Music In-play SDcard Mode Laser Setting System Setting Use button TFT LCD display menu function,easy to use, starting up auto-loading system software. Through UP.DOWN choose the desired function. Through enter,back to confirm choose function,Back To Previous Menu.

  • Page 8: Tft Function Display Menu Setting

    TFT LCD display control panel function menu setting, as following:： First menu second menu Third menu DMX Address DMX Address Main Menu DMX Address Auto In-play Music In-play SDcard Mode Laser setting System setting Auto In-play Main Menu DMX Address Fast Beat Medium Beat Auto In-play...

  • Page 9: Dmx512 Control Mode

    1、DMX-512 control mode: This light of IPLAY mode have 2 kinds channel mode(at system set of next menu channel number set can choose channel mode) SD card mode is no effect of channel number set. SDPLAY just 1 channel mode, mode and instruction as Description Function value...
  • Page 10 rotating angle choose 0~127 128~143 144~159 160~175 Pattern rotating 176~191 positive rotation speed choose 192~207 208~223 224~239 240~255 horizontal rotating angle choose 0~127 128~143 144~159 160~175 pattern horizontal 176~191 horizontal rotating speed choose rotating 192~207 208~223 224~239 240~255 vertical rotating angle choose 0~127 128~143 144~159...
  • Page 11 vertical move position choose 0~127 128~143 144~159 160~175 pattern vertical 176~191 move vertical move speed choose 192~207 208~223 224~239 240~255 zoom size choose 0~127 128~143 144~159 160~175 pattern zoom 176~191 zoom size choose 192~207 208~223 224~239 240~255 smaller amplitude wave speed 0~39 and cycle choose Small amplitude wave speed...

  • Page 12: 25Ch Mode

    drawing speed choose 0~127 pattern point strobe 128~255 default color 8~15 16~23 24~31 32~39 40~47 CH12 48~55 56~63 Swap color CH13 color mode 64~127 Swap color change 128~143 three colors change 144~159 three colors flow change 160~175 7 color change 176~191 7 color flow change 192~207...
  • Page 13 rotating angle choose 0~127 128~143 144~159 160~175 Pattern A 176~191 rotating positive rotation speed choose 192~207 208~223 224~239 240~255 horizontal rotating angle choose 0~127 128~143 144~159 160~175 pattern A horizontal 176~191 horizontal rotating speed choose rotating 192~207 208~223 224~239 240~255 vertical rotating angle choose 0~127 128~143...
  • Page 14 vertical move position choose 0~127 128~143 144~159 160~175 pattern A 176~191 vertical move vertical move speed choose 192~207 208~223 224~239 240~255 zoom size choose 0~127 128~143 144~159 160~175 pattern A zoom 176~191 zoom size choose 192~207 208~223 224~239 240~255 smaller amplitude wave speed 0~39 and cycle choose Small amplitude wave speed...
  • Page 15 drawing speed choose 0~127 pattern A point CH12 strobe 128~255 default color 8~15 16~23 24~31 32~39 40~47 48~55 56~63 Swap color CH13 64~127 color A mode Swap color change 128~143 three colors change 144~159 three colors flow change 160~175 7 color change 176~191 7 color flow change 192~207...
  • Page 16 horizontal rotating angle choose 0~127 128~143 144~159 160~175 pattern B horizontal 176~191 CH17 horizontal rotating speed choose rotating 192~207 208~223 224~239 240~255 vertical rotating angle choose 0~127 128~143 144~159 160~175 pattern B vertical CH18 176~191 vertical rotating speed choose rotating 192~207 208~223 224~239...
  • Page 17 zoom size choose 0~127 128~143 144~159 160~175 pattern Bzoom CH21 176~191 zoom size choose 192~207 208~223 224~239 240~255 smaller amplitude wave speed 0~39 and cycle choose Small amplitude wave speed 40~79 wave B mode and cycle choose (the second middle amplitude wave speed channel pattern 80~119 and cycle choose...

  • Page 18: Sd Card Control

    56~63 Swap color 64~127 Swap color change 128~143 three colors change 144~159 three colors flow change 160~175 CH25 color B mode 7 color change 176~191 7 color flow change 192~207 color table change 208~223 color table flow 224~239 drawing effect speed choose 240~255 3).SD PLAY 14 Channel model follow: Description...
  • Page 19 each 32 values choose 1 page folder 0~255 0~15 file each 10 value pattern 16~255 0~15 100% pause display speed 16~31 25%~200% 32~255 100% light（TTL mode can not 0~255 use it） 0~255 100% zoom X size 0~255 100% Y size 0~255 100% rotating angle...
  • Page 20 3、Music automatic play mode In LCD display by UP,DOWN keys to select”music automatic play mode”,then Voice activated by the built-in microphone,and lighting built-in fast paced, medium-paced, slow paced, animation effect four modes, select any effect of the music transformation color and pattern. 4、SD card play mode In TFT LCD display by UP,DOWN select SD card mode.

  • Page 21: Safety Warning And Maintain

    Sixth、Safety warning and maintain 6 - 1 Safety warning： 1、The product must be installed by a qualified professional. Please do not open the equipment. 2、The fans and air-vents should not be jammed by other equipment or decorate materials. 3、Avoid looking directly in the light source. 6 - 2 Maintain：...

  • Page 22: Product Common Breakdown Comparative Chart

    Product common breakdown comparative chart Breakdown cause Major breakdown analysis and solution 1. Check the power cable whether to connect the fixture, whether the fuse does burn out. The fixture no work 2. Check the input voltage whether to assign the voltage match with the fixture.
