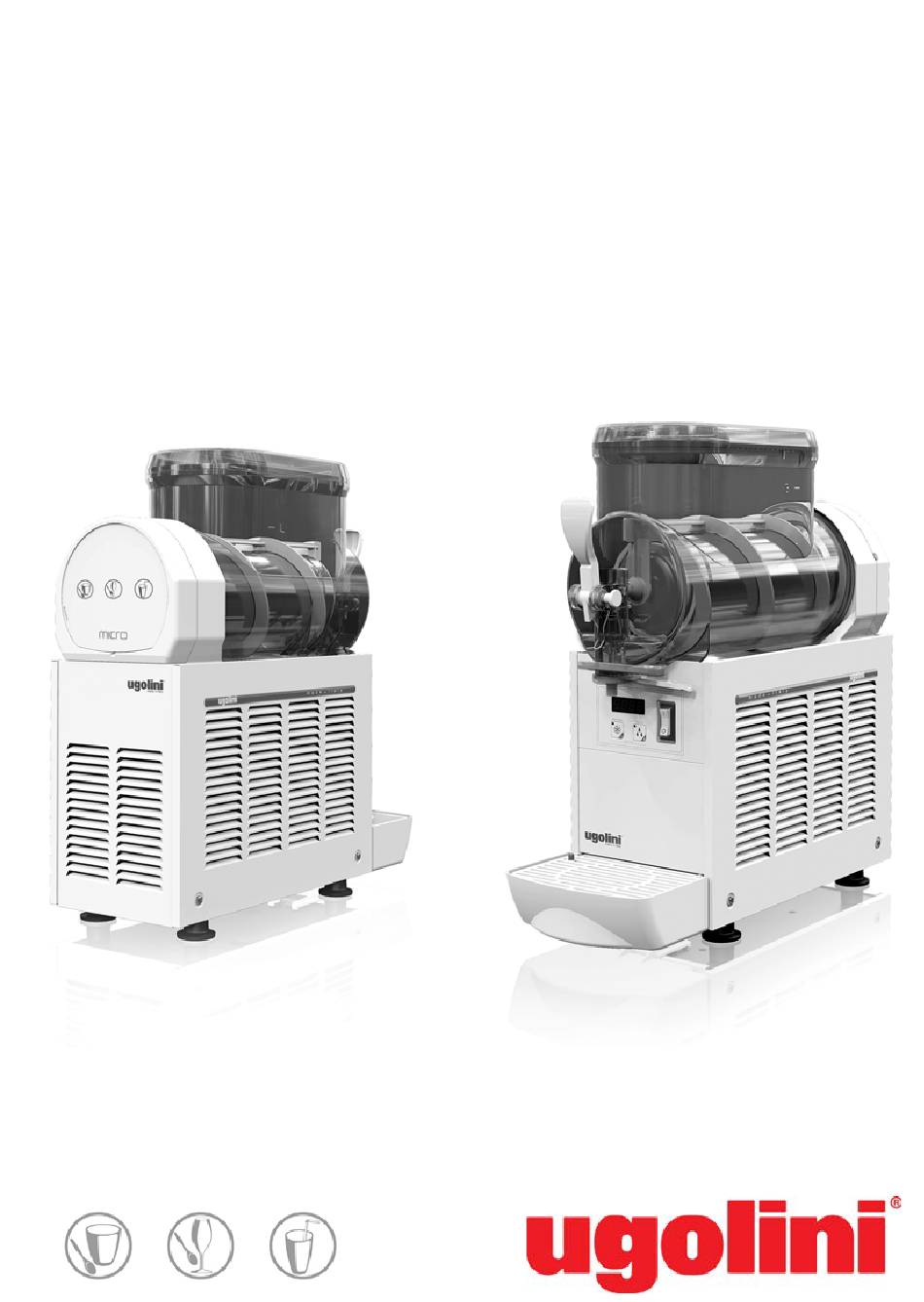

MT micro
MANUALE D'ISTRUZIONI
O P E R A T O R ' S MA N U A L
CARNET D'INSTRUCTIONS
GEBRAUCHSANWEISUNG
MANUAL DE INSTRUCCIONES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT micro and is the answer not in the manual?

Questions and answers

Melanie Bellrose
June 5, 2025

Can I just use a couple of liters of soda in my machine to make slushies or do I have to use syrup

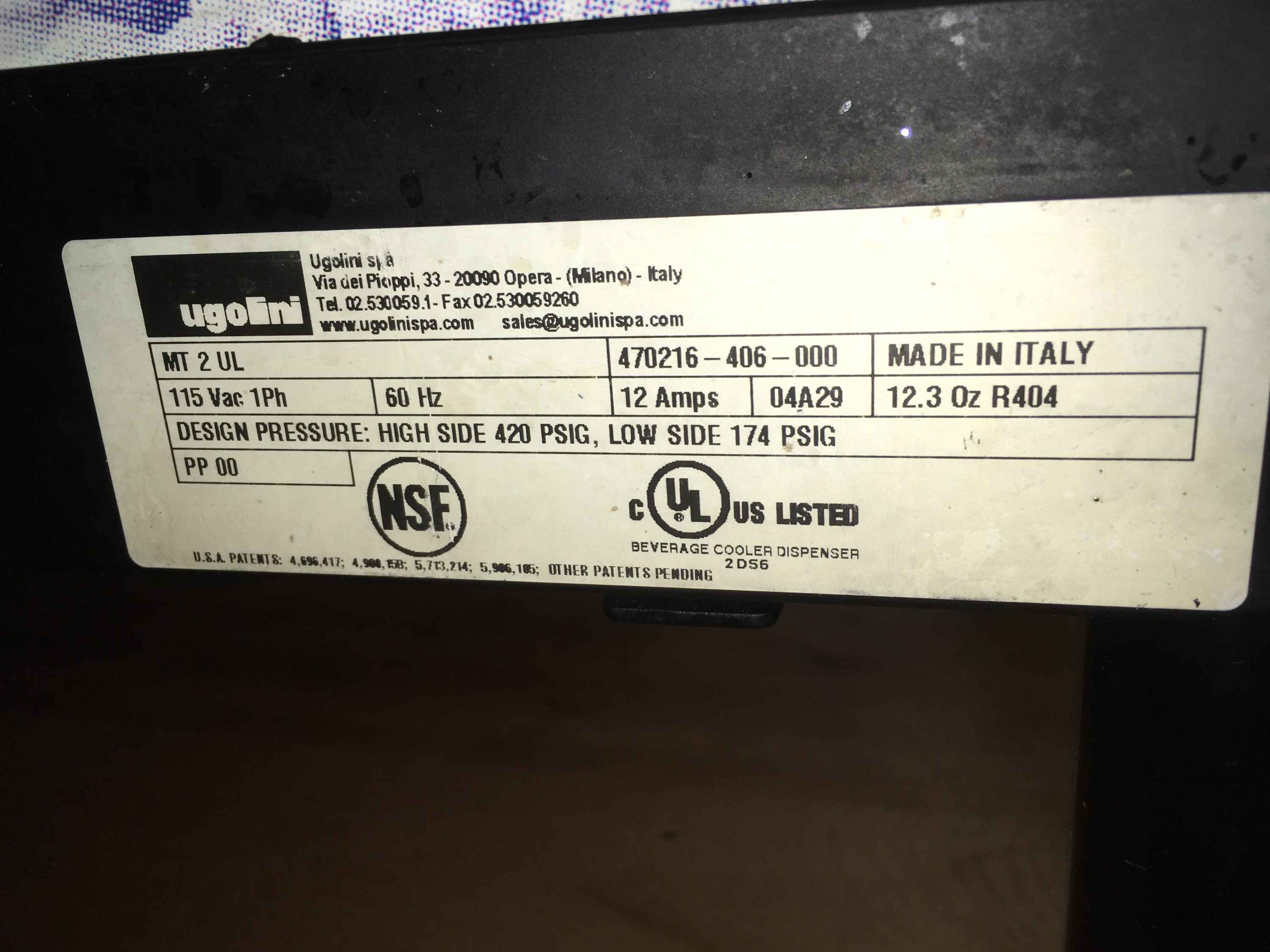

User image 68410c2d3b3ee
0

Subscribe to Our Youtube Channel

Related Manuals for Ugolini MT micro

Summary of Contents for Ugolini MT micro

  • Page 1 MT micro MANUALE D’ISTRUZIONI O P E R A T O R ’ S MA N U A L CARNET D’INSTRUCTIONS GEBRAUCHSANWEISUNG MANUAL DE INSTRUCCIONES...
  • Page 2 EC DECLARATION OF CONFORMITY We Ugolini S.p.A. - Via dei Pioppi 33 - 20090 Opera Milano - Italy declare, under our responsibility, that the apparatus COLD DRINK DISPENSER - Trademark: UGOLINI S.p.A. - Manufacturer: UGOLINI S.p.A. - Model: MT MICRO 1 are in conformity...

  • Page 3: Electrical Safety Instructions

    MT micro 1 ELECTRICAL SAFETY domestic and similar use. INSTRUCTIONS For the appliance to operate correctly, room temperature must be between +5° and +32°C. Before connecting the dispenser to the Use the appliance to cool the indicated mains, check that the voltage shown on the liquids only.

  • Page 4: Installation

    The unit doesn’t come presanitized from the Specifications are subject to change without factory. Before serving products, the dispenser notice. must be disassembled, cleaned and sanitized according to this handbook instructions (chapter 7 . 3 C L E A N I N G A N D S A N I T A Z I N G 4 INTRODUCTION PROCEDURES).

  • Page 5: Description Of Controls

    MT micro freezers. Such bases have a sugar content of 34 figure 1). degrees Baumé corresponding to 64 degrees Brix. For soft drinks the bases are to be diluted with more water, on a 1 plus 5/5.5 basis. In any case follow the syrup manufacturer’s instructions for both Granita and soft drink recipes.

  • Page 6: Operation Helpful Hints

    switch covers (see figure 1). IMPORTANT Conservation temperature is set at the factory at 4°C. Cleaning mode: hold down key (C) for three seconds to enable CLEANING mode, during which the display shows " --.-- ". In this mode, the figure 2 mixer turns but the cooling is not enabled.

  • Page 7: Cleaning And Sanitizing Procedures

    MT micro wall of each container as follows (see figure 4): melted. - towards right (clockwise) to obtain a thicker p r o d u c t ( t h e i n d i c a t o r F w i l l g o d o w n i n The dispenser is equipped with a magnetic opening G).
  • Page 8 slide it out (see figure 6). figure 8). figure 7 figure 5 figure 8 Remove the bowl gasket from its seat (see figure 9). figure 6 Slide the outer spiral out (see figure 7) and then Outside magnetic rotor assembly (see figure 9 Dismantle the faucet assembly (see figure...
  • Page 9 MT micro 10). cleaning solution. ATTENTION When cleaning the machine, dump it, do not allow excessive amounts of water around electrically operated components of the unit. Electrical shock or damage to the machine may result. In the same manner clean the evaporator cylinder(s) using a soft bristle brush.

  • Page 10: In-Place Sanitization

    unit until it fits snugly around the gasket and its Fit bowl gasket around its seat. front fastening hooks are properly engaged (see Note: the largest brim of gasket must face figure 15). against the rear wall (see figure 12). figure 12 Insert the magnetic outside rotor in the evaporator taking care to accompany it to the...

  • Page 11: Maintenance (To Be Carried Out By Qualified Service Personnel Only)

    MT micro gaskets, check for improper lubrication, worn or damaged parts. Replace parts as needed. ATTENTION Condenser fins very sharp. extreme caution when cleaning. In case of noise it needs to unplug the cooler and call for service. In case of failure unplug the machine, because unexpected start again would be possible.

This manual is also suitable for:

Mt micro 1
