iRZ iON FM User Manual

Navigation user terminal
Hide thumbs Also See for iON FM:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual
USER GUIDE
Navigation User Terminal
iON FM

Advertisement

Table of Contents
loading

Related Manuals for iRZ iON FM

Summary of Contents for iRZ iON FM

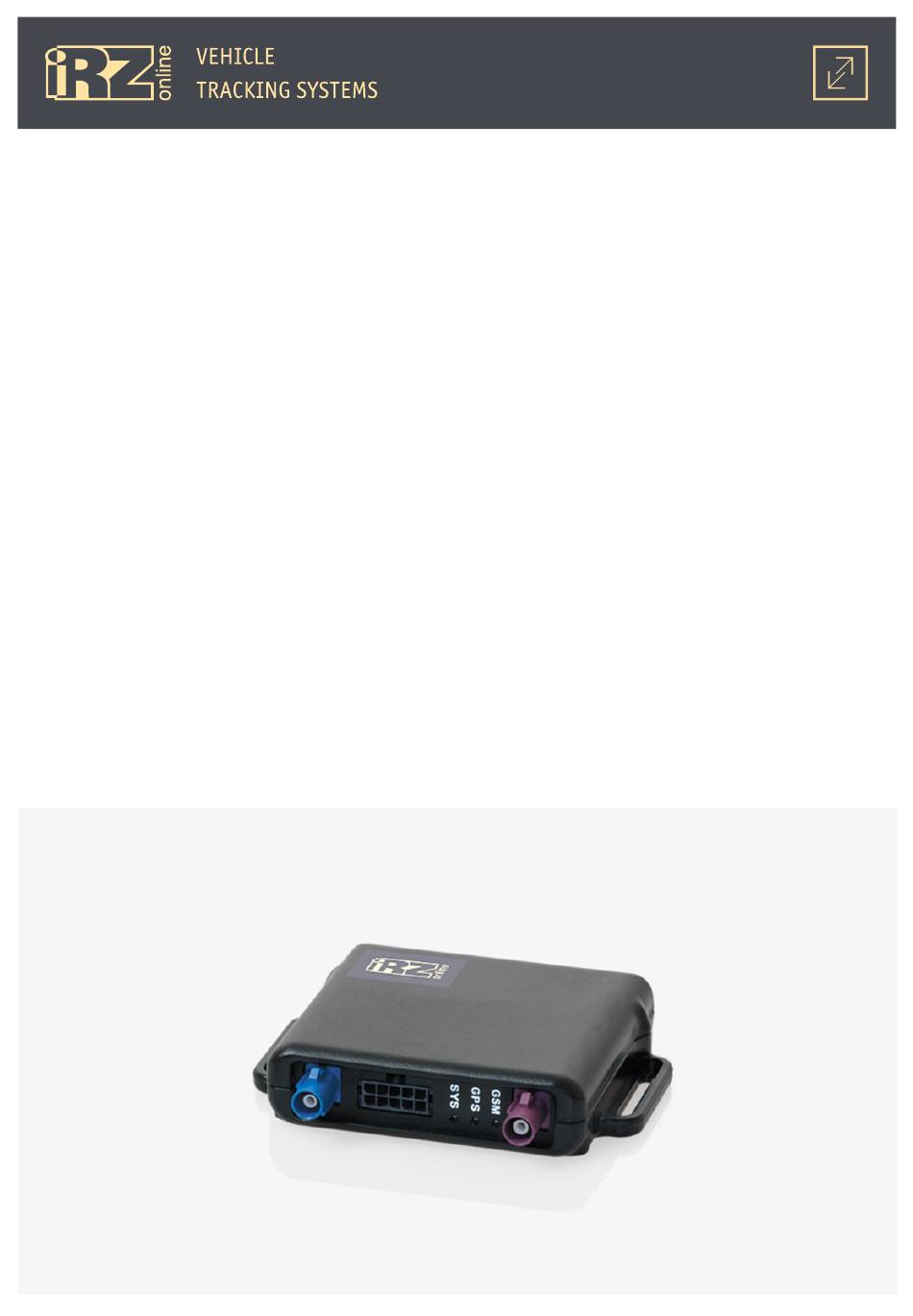

  • Page 1 USER GUIDE Navigation User Terminal iON FM...

  • Page 2: Table Of Contents

    Table of Contents 1. INTRODUCTION ........................5 1.1. Warnings and Recommendations ................... 5 1.2. Technical Specifications ...................... 6 1.3. Package Contents ....................... 7 1.4. Device Overview ........................ 8 1.4.1. Device Overview and Purpose ..................8 1.4.2. Navigation Terminal Functions ..................8 1.4.3.
  • Page 3 4.3.7. “Powersaving” Tab ....................61 4.3.8. “Data Grouping“ Tab ....................62 4.4. Service Configuration of the Terminal ...................63 4.4.1. Firmware Update .....................63 4.4.2. Password Change.....................64 4.4.3. Service Commands ....................64 4.4.4. Working with the Configuration File ................64 4.5. CAN-LOG iRZ Online Diagnostic ....................65...
  • Page 4 TERMS AND ABBREVATIONS ......................67...

  • Page 5: Introduction

    1. Introduction This document contains information on preparation procedures of the iON FM navigation user terminal for operation. Version Date Prepared by Revisions 14.03.2016 V. Golovin Main document 1.0.2 07.04.2016 V. Golovin Revisions: minor changes in sections 1.4.6, 1.4.7, 2.2, 2.3, 4.3.4, 4.4.1 15.07.2016...

  • Page 6: Technical Specifications

    1.2. Technical Specifications* General Features Navigation receiver GPS/GLONASS Frequency bands GSM/GPRS 900/1800 MHz Antennas External GPS/GLONASS antenna External GSM antenna Flash-memory 16 MB SIM card holder Inside the case Built-in accelerometer Three-axis Electrical Specifications Supply voltage from 8 to 48 V ●...

  • Page 7: Package Contents

    1.3. Package Contents The delivery package of the iON FM navigation user terminal contains the following components*: Indication Name Quantity iON FM 1 pcs GSM antenna 1 pcs GPS/GLONASS antenna 1 pcs 10-pin interface cable 1 pcs * the package collection and content are subject to change by the manufacturer without prior notice...

  • Page 8: Device Overview

    It is necessary to remember that iON FM is just a part of the tracking system. m. The navigation terminal itself is responsible for data acquisition and transmission from the surveillance object to the server where the data is processed and provided to an end user.

  • Page 9: The Tracking System Operation Diagram

    1.4.3. The Tracking System Operation Diagram GPS/GLONASS Satellites location data Monitored object (vehicle) GSM/GPRS GSM Base Station Navigation Terminal user commands, location data, sensors data, etc. Internet user commands User devices Internet Tracking System Servers Web browser location data, sensors data, etc. Fig.

  • Page 10: Navigation Terminal Connectors

    1.4.4. Navigation Terminal Connectors iON FM is a compact device encased in a plastic housing which supports connection to external power, as well as to various external devices and sensors. Interface connector is situated outside of the casing, while SIM card access, Micro USB connector and a battery are fitted inside.

  • Page 11: Navigation Terminal System

    Outputs polarity coupled to negative Inputs. Inputs IN1-IN4 of Microfit 10 connector are multipurpose and are intended for reading external devices, connected to iON FM terminal. All the read data may be transmitted to web-monitoring server for the following processing.
  • Page 12 Configure input type, logic 1 and 0 levels via NOTE! To decrease GPRS traffic, iON FM is fitted with input readings filter: if the reading has not changed, the device does not transmit it to server. This allows for significantly economise GPRS traffic and funds at the user’s SIM card.
  • Page 13 Zero the counter out only when it is necessary to reset previously accumulated values. Analog input type. iON FM terminal supports feeding analog signal of steady voltage that will be measured and averaged out for further transmission to a server.

  • Page 14: Terminal Operation Modes

    1.4.7. Terminal operating modes iON FM terminal supports 5 operating modes, each assigned for different tasks as well as regulated within certain range of power consumption for power-saving modes. Power saving is achieved by disabling certain functional modules for prolonged intervals of time.
  • Page 15 *** the time may be set using the configurator or PW#TW1 command or PW#TS1 command ** the time may be set using the configurator **** the time may be set using the configurator or PW#TW2 command or PW#TS2 command Fig. 1.4. iON FM operating modes diagram...
  • Page 16 Main mode In the “Main mode”, iON FM terminal performs all of its function in real time; all of its electronic periph- erals are enabled to provide complete functionality. In this mode, the device determines GPS and LBS coordi- nates, reads multipurpose inputs and RS-485 bus, and transmits these readings to web-monitoring server via GPRS channel.
  • Page 17 GSM module — determining LBS coordinates and transmission of all accumulated data to monitoring server. iON FM terminal switches to “Power-saving mode” only if this mode is allowed by PW#EN1 command (al- lowed by default), and the following conditions are consecutively met: The terminal is at rest and motion sensor does not detect movement;...
  • Page 18 If iON FM terminal has switched to “Mode 1” from “Main mode”, then power source is irrelevant — be it built-in battery or external source - since the terminal will follow the same order of switching from one power- saving mode to another to preserve energy.
  • Page 19 “Mode 3”. Active mode In “Active mode”, iON FM terminal performs all of its functions in real time; all of its electronic peripherals are enabled to provide complete functionality. In this mode, the device determines GPS and LBS coordinates, reads multipurpose inputs and RS-485 bus, and transmits these readings to web-monitoring server via GPRS channel.
  • Page 20 “Deep Sleep Mode” (“Mode 3”). NOTE! During prolonged parking, iON FM may completely discharge the vehicle’s AC battery. To avoid that, connect the terminal to the part of the fuse box that is de-energized when ignition is switched off. Alterna-...

  • Page 21: Dimensional Drawing

    1.5. Dimensional Drawing 93,8 Fig. 1.5. iON FM navigation terminal dimensional drawing...

  • Page 22: Device Preparation Procedures

    2. Device Preparation Procedures This section has information on the iON FM navigation user terminal preparation and installation on a vehicle. Before the device installation on a vehicle, it needs to be configured using the configuration manager Conf_iRZ.exe. The configuration may be carried out during installation. For example, using a laptop, con- nected to a device via USB interface fitted inside of the housing (see section 2.3).

  • Page 23: Interface Cable

    2.1. Interface cable For power connection, sensor and other device’s data transmission the terminal is fitted with 10-pin cable supplied with the terminal. Fig. 2.1. 10-pin cable connector The identification of FFC connector pins is shown in the chart: Color Signal Description blue...

  • Page 24: Indication

    2.2. Indicators iON FM indication is placed on face side next to GSM antenna connector and interface connector. More detailed information on the indication system is shown in the chart: Indicators GPS/GLONASS Color green green Device is off No signal from positioning...

  • Page 25: Replacing Sim Card And Connection To A Pc

    2.3. Replacing SIM card and connection to PC Both SIM holder and Micro USB connector in iON FM terminal are fitted inside of its housing. Replacing SIM cards and connecting the device to PC requires disassembling the housing. Disassembling the housing:...
  • Page 26 Installing SIM card into the device: pull the board out of the casing; insert SIM card into SIM holder on the board; push SIM card in until you hear a click; this means it is secured in the tray. Removing SIM card from the device: pull the board out of the casing;...

  • Page 27: Device Connection

    3. Device Connection This section provides the diagrams with the device connection to power, connection of sensors and other external devices. Diagrams: Connecting power without a battery cutoff switch Connecting power with a battery cutoff switch Ignition circuit connection LLS connection via RS485 Tachometer Connection Connecting an alarm button and any contact sensor Connecting the LSS with a frequency or analog output...

  • Page 28: Connecting Power Without Battery Cutoff Switch

    3.1. Connecting Power without Battery Cutoff Switch 10 VCC Battery 12 / 24 V Interface connector Ground Fig. 3.1. Connecting Power without Battery Cutoff Switch diagram 3.2. Connecting Power with a Battery Cutoff Switch 10 VCC Battery 12 / 24 V Interface connector Battery cutoff switch...

  • Page 29: Ignition Circuit Connection

    3.3. Ignition Circuit Connection When connecting by this diagram, select the “logic” input operation mode in the configuration manager (Settings/Inputs). Ignition lock IN1 - IN4 Interface Battery connector 12 / 24 V Ground * - any of the multipurpose inputs (1-4) Fig.

  • Page 30: Tachometer Connection

    3.5. Tachometer Connection When connecting by this diagram, select the “frequency” input operation mode in the configuration manager (Settings/Inputs). Oscillator IN1 - IN4 Interface connector Tachometer * - any of the multipurpose inputs (1-4) Fig. 3.5. Tachometer Connection diagram 3.6. Alarm Button and Any Contact Sensor Connection When connecting by this diagram, select the “logic”...

  • Page 31: Connecting The Lls With An Analog Output

    3.7. Connecting the LLS with an Analog Output When connecting by this diagram, select the “analog” input operation mode in the configuration man- ager (Settings/Inputs). Battery 12 / 24 V IN1 - IN4 Interface connector Ground * - any of the multipurpose inputs (1-4) Fig.

  • Page 32: Connecting Analog/Pulse Sensor With An Open-Collector Output

    3.9. Open Collector Output Analogue/Pulse Sensor Connection When connecting by this diagram, select the “analog” input operation mode in the configuration man- ager (Settings/Inputs) for analog sensor and “impulse” for impulse sensor. + Power supply IN1 - IN4 Interface connector Ground * - any of the multipurpose inputs (1-4) Fig.

  • Page 33: Configuring The Device Using The Configurator Utility

    4. Device Configuration Using Configurator To configure iON FM user terminal, plug it into your computer using a micro USB port and run the applica- Conf_iRZ.exe tion 4.1. Driver Installation For operation of the Conf_iRZ.exe application with the iON FM user navigation terminal, download and install the iON Virtual COM Port driver.
  • Page 34 In the Found New Hardware Wizard dialog box select an option “No, not this time” and click Next: On the next screen select the “Install from a list or specific location (Advanced)” option and click Next:...
  • Page 35 Select “Search for the best driver in these locations” and using the Browse button navigate to the folder that contains the driver files. For example, C:\drivers\iON Virtual COM Port\ Then click the Next button: As a result, the driver installation process will launch. If the wizard prompts “The software you are install- ing...
  • Page 36 As a result, the driver for one device will be installed. Click Finish:...

  • Page 37: Installing Drivers On Windows 7

    For example, to the C:\drivers\ location Plug iON FM into your computer using a USB port. Make sure the device is getting enough power - the device indicators should light up. At that, the Update Driver Software icon will appear on the taskbar: ►...
  • Page 38 In this case open the Task Manager, highlight iON Virtual COM Port from the unknown devices and by the right-click on this device select “Update Driver Software...”. The Update Driver Software window will appear. Select the “Browse my computer for driver software” option :...
  • Page 39 C:\drivers\ Using the Browse button navigate to the folder that contains the driver files. For example, iON Virtual COM Port\ Then click the Next button: As a result, the driver installation process will launch. If you are prompted “Windows can’t verify the pub- lisher of this driver software”, select “Install this driver software anyway”...
  • Page 40 As a result, the driver for one device will be installed:...

  • Page 41: Installing Drivers On Windows 8

    C:\drivers\ location Plug iON FM into your computer using a USB port. Make sure the device is getting enough power — the device indicators should light up. In this case the “Update Driver Software” icon will appear on the taskbar.
  • Page 42 Since Windows 8 does not allow administrators to install drivers without digital signature by default, you will have to boot the system in a special mode. For that, follow the steps below: Open the charms bar in Windows 8 (or press the WIN+I keys), select Settings and tap or click Change PC settings: On the “PC settings”...
  • Page 43 On the “Choose an option” screen select Troubleshoot: On the “Troubleshoot” screen select Advanced options: On “Advanced options” select Window Startup Settings:...
  • Page 44 On “Window Startup Settings” tap or click Restart: The PC will now reboot and you will be prompted with the startup settings before running. Press the number 7 (or F7) key to select the “7) Disable driver signature enforcement” option: Then, Windows will reboot with the option to install unsigned drivers.
  • Page 45 ► ► After Windows rebooting, open the Device Manager (open the Settings charm Control Panel Sys- ► ► tem and Security System Device Manager) highlight iON Virtual COM Port from the unknown devices and by the right-click select “Update Driver Software...”. The Update Driver Software window will appear.
  • Page 46 Using the Browse button navigate to the folder that contains the driver files. For example, C:\drivers\ iON Virtual COM Port\ Then click the Next button: As a result, the driver installation process will launch. If you are prompted “Windows can’t verify the pub- lisher of this driver software”, select “Install this driver software anyway”...
  • Page 47 As a result, the driver for the device will be installed. Click Close.

  • Page 48: Overview

    By default the device has a password, without which you can’t save any changes in the configurator. For the terminal iON FM the default password is 123456. When you initialize the configurator the list of the devices connected to the computer will open: Fig.
  • Page 49 After selecting the device, opens several tabs with information and configurations: Fig. 4.2. “Devices” tab Mark Element Description “Device” tab General information about device: IMEI, model, firmware version, etc. “GPS/GLONASS” tab Information about GPS/GLONASS module and antennas. “GSM” tab Information about SIM card and functioning of GSM connection “Inputs”...

  • Page 50: Terminal Configuration

    4.3. Terminal Configuration To access the configuration of the device, select the Configuration tab. In which the settings are grouped by topics: Function Server Configuration of the connection with the servers of the monitoring system. SIM configuration Configuration of the SIM cards in the device. Track points Configuration of the tracking points saving.

  • Page 51: Server" Tab

    4.3.1. “Server” tab The Server tab is used for the configuration of the connection with the servers of the monitoring system. Fig. 4.3. “Server” tab For the configuration of the connection you need to specify the IP address or the DNS name and its port. Example: Parameter Example...

  • Page 52: Sim Configuration" Tab

    4.3.2. “SIM configuration” tab The SIM Configuration tab is used for the configuration of the SIM cards in the device. Fig. 4.4. “SIM configuration” tab The following configurations are available: Parameter Description Automatic selection of the access point Enable/disable the automatic selection of the access point. If the parameter is disabled, then the APN, login and password need to be entered manually.

  • Page 53: Track Points" Tab

    4.3.3. “Track points” tab The Track Points tab is used for the configuration of the navigation tracking points. Fig. 4.5. “Track points” tab The following configurations are available: Parameter Description Current location Period in seconds, which specifies the interval of time after which the terminal will send the data for the display of the location in real time.

  • Page 54: Inputs" Tab

    GPS/GLONASS positioning systems, on traffic lights and traffic jams. 4.3.4. “Inputs” tab The Inputs tab is used for the configuration of the universal inputs. Fig. 4.6. “Inputs” tab The terminal iON FM has 4 universal inputs (IN1, IN2, IN3, IN4).
  • Page 55 The following configurations are available: Parameter Description Enable Enable/disable the universal inputs Saving interval, sec Time in seconds, after which the device saves data from the inputs Supply voltage Save only when changes Enable /disable the mode in which the supply voltage data will only be saved if the value changes.

  • Page 56: Outputs" Tab

    4.3.5. “Outputs” tab The Outputs tab is used to configure the outputs. Fig. 4.7. “Outputs” tab The terminal iON FM has 2 outputs (OUT5, OUT6). With the configurator you can enable/disable them.

  • Page 57: Rs-485" Tab

    CAN-LOG iRZ Online. Sensor Scanning. This mode is used for the configuration of the liquid level sensors. The terminal iON FM can work with up to four sensors, connected through the RS485. For the configuration of the sensor do the following steps: Select the type of sensor;...
  • Page 58 CAN bus of the vehicle and transfer it to the terminal. After selecting the CAN-LOG iRZ Online operation mode, the data that needs to be saved and sent to the monitoring system has to be selected.
  • Page 59 Saved security state flags: ● Ignition status; ● Stock alarm state; ● Vehicle is locked with stock fob; ● Key is in ignition lock; ● Dynamic ignition 2 is engaged; ● Driver’s door is open; ● Passenger’s door is open; ●...
  • Page 60 Saved accident controllers flags: Icon Description Icon Description Stop ABS (anti-blocking system) Pressure / level of oil Low fuel level Temperature / level of coolant ESP (electronic stability program) Handbrake system Ignition fuse indicator Battery charge FAP (particulate filter) Safety bag Electrical pressure configuration Check the engine Tail lamps...

  • Page 61: Powersaving" Tab

    4.3.7. “Powersaving” tab The Powersaving tab is used for the configuration of the power saving modes. Fig. 4.9. “Powersaving” tab The following configurations are available: Parameter Description Powersaving mode: Enable transition to mode Enable/disable the transition of the device to “Power saving mode”. Parking time before transition Time of parking event in minutes, after which the device will switch to power- saving mode.

  • Page 62: Data Grouping" Tab

    4.3.8. “Data Grouping” tab The Data Grouping tab is used for the configuration of data grouping, before their sending to the moni- toring server. This function can be useful when working with monitoring systems that support grouping of data. Fig. 4.10. “Data Grouping” tab To enable the data grouping, move the switch Enable grouping to the right.

  • Page 63: Service Configuration Of The Terminal

    4.4. Service configuration of the terminal In the Service tab can be configured different service configuration of the terminal – installation and changing of the password, firmware update, sending of service commands and other. Fig. 4.11. “Service” tab 4.4.1. Firmware Update To update the firmware: Click on the Browse button in the Firmware update section;...

  • Page 64: Password Change

    4.4.2. Password Change To change the password, do the following steps: Enter the current password of the device in the designated field; In the next field enter the new password; Enter again the new password in the Confirmation field; Click on Apply button. 4.4.3.

  • Page 65: Can-Log Irz Online Diagnostic

    Fig. 4.12. “RS-485“ tab (“CAN-LOG iRZ Online’ mode) After this in the RS-485 tab, enter the number of the program that functions with CAN-LOG iRZ Online, which is different for every vehicle manufacturer. The number for each vehicle is provided by the CAN-LOG manufacturer.
  • Page 66 If the CAN-LOG is connected and the selected configuration are correct, in the RS-485 tab in the CAN-LOG Data, Security State Flags and Accident Controller will appear information. The values that are active in the RS-485 tab can be selected to be processed by the terminal. For this select the needed fields in the Configura- tion/RS-485 tab (which are corresponding to the 3 fields in the information tab).
  • Page 67 Terms and Abbreviations Abbreviations Expansion Battery accumulator battery GLONASS Global Navigation Satellite System Liquid Level Sensor Navigation User Terminal vehicle GPRS General Packet Radio Service, a packet-based mobile data service for cellular communications Global Positioning System, global navigation satellite system Global System for Mobile Communications Location-based service Li-Pol...
