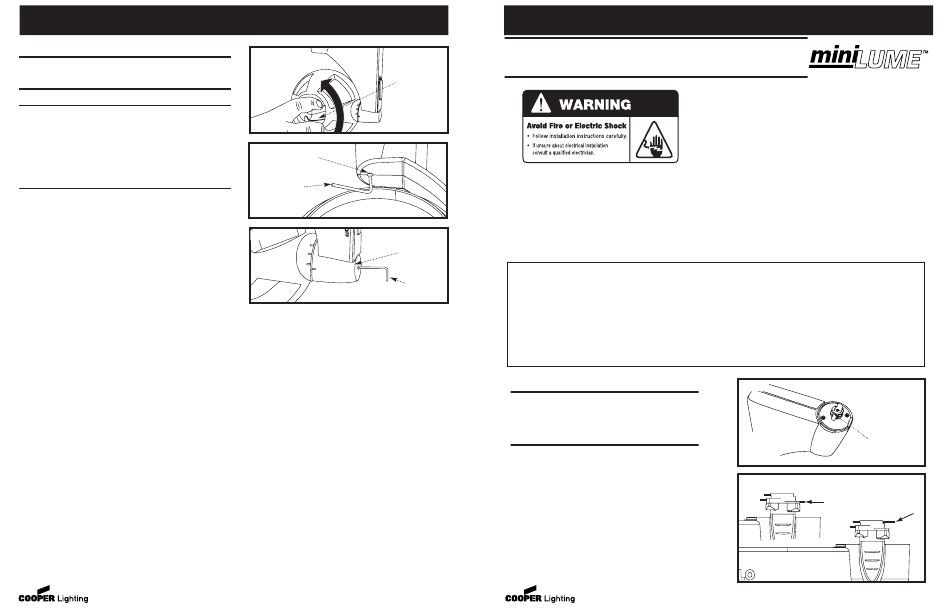

Cooper Lighting HALO miniLUME LA5300 Installation Instructions

HALO
®
Changing Media
The fixture bezel assembly can accept two clear glass lenses or one color
filter with or without a clear lens.
Focusing Beam
Focus by rotating knob 1/4 turn on fixture. Beam can be adjusted from a
spot to a flood (Fig. 11).
Instructions for Lockable Aiming
Lockable aiming is only available for L530070E series fixtures.
Step 1 Aim fixture to desired position.
Step 2 Insert 9/64 allen wrench, provided by others, into hole under track
adapter. Turn clockwise to tighten. This will lock vertical rotation
(Fig.12).
Step 3 Insert 9/64 allen wrench into hole near on/off switch. Turn clock-
wise to tighten. This will lock horizontal rotation (Fig. 13).
Customer First Center • 1121 Highway 74 South • Peachtree City, GA 30269 • 770.486.4800 • FAX 770.486.4801
FIG. 11
FOCUSING
KNOB
FIG. 12
VERTICAL
LOCK
9/64" ALLEN
WRENCH
FIG.13
HORIZONTAL
LOCK
9/64" ALLEN
WRENCH
11/06 rev.4
HALO
®
Installation Instructions for LA5300, LF5300
& L5300 Adjustable Beam Lampholders
• SAFETY INFORMATION
• IMPORTANT SAFETY
INSTRUCTIONS
• READ CAREFULLY FOR YOUR
PROTECTION AND SAVE ALL
INSTRUCTIONS
Operation
This device has an internal ceramic metal halide transformer allowing it to operate
on Halo and Lazer by Halo line voltage track. Make sure you are using the correct
lamp type and wattage for your track fixture. In the event of a shutdown the lamp
will re-strike in approximately 5 minutes
NOTICE: THIS EQUIPMENT CONTAINS A R.F. BALLAST THAT HAS BEEN TESTED AND
FOUND TO COMPLY WITH THE LIMITS PURSUANT TO PART 18C NON-CONSUMER
LIMITS OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE
PROTECTION AGAINST HARMFUL INTERFERENCE WITH ELECTRONIC DEVICES SUCH
AS: RADIOS, TELEVISIONS, WIRELESS TELEPHONES OR REMOTE CONTROLS. IF
INTERFERENCE OCCURS IT MAY BE POSSIBLE TO CORRECT THE INTERFERENCE BY
ONE OR MORE OF THE FOLLOWING MEASURES:
Service
There are no user serviceable parts inside. Opening unit will void
warranty. Contact point of purchase for service.
Installation Instructions for
L5300 Series Track Fixture (Fig. 1A, 1B, 1C & 1D)
The L5300 track fixture can be used with Halo and Lazer by Halo
single circuit track and Halo-2 two-circuit track. An adjustable con-
tact allows you to select the circuit position. Use a narrow blade
screwdriver as shown (Fig.1A) to adjust the contact. Lift or lower
the contact until it touches the upper or lower plastic stop of the
contact assembly.
To use with Halo or Lazer by Halo single circuit track the
adjustable contact must be in the circuit #1 or lower position. To
use with Halo-2 two circuit track adjust the contact position to the
desired circuit position, circuit #1 down or circuit #2 up position
(Fig. 1B).
702505
•
Disconnect power before installing light fixture on track.
•
Wear rubber-soled shoes and work on a sturdy wooden ladder.
•
This fixture must be installed according to the National Electric
Code and local building codes.
•
To avoid a hazard to children, account for all parts and destroy all
packing materials.
•
If you are unsure about the installation or use of this fixture con-
sult a qualified electrician.
•
CAUTION: To reduce the risk of fire and electrical shock, use only
fixtures and fittings intended for use with Halo and Lazer by Halo
track systems only.
• REORIENT OR RELOCATE ANTENNA OF THE RECEIVING DEVICE.
• INCREASE THE SEPARATION BETWEEN THIS EQUIPMENT AND THE DEVICE.
• CONNECT THIS EQUIPMENT OR THE DEVICE INTO A DIFFERENT OUTLET OR CIR-
CUIT.
THIS EQUIPMENT SHOULD NOT BE USED:
• CLOSER THAN THREE (3) FEET FROM ANY SENSITIVE ELECTRONIC EQUIPMENT.
• NEAR MARITIME SAFETY, NAVIGATION, OR COMMUNICATIONS EQUIPMENT.
FIG. 1A
FIG.1B
DOWN
POSITION
Customer First Center • 1121 Highway 74 South • Peachtree City, GA 30269 • 770.486.4800 • FAX 770.486.4801
ADJUSTABLE
CONTACT
UP
POSITION
11/06 rev.4 702505
