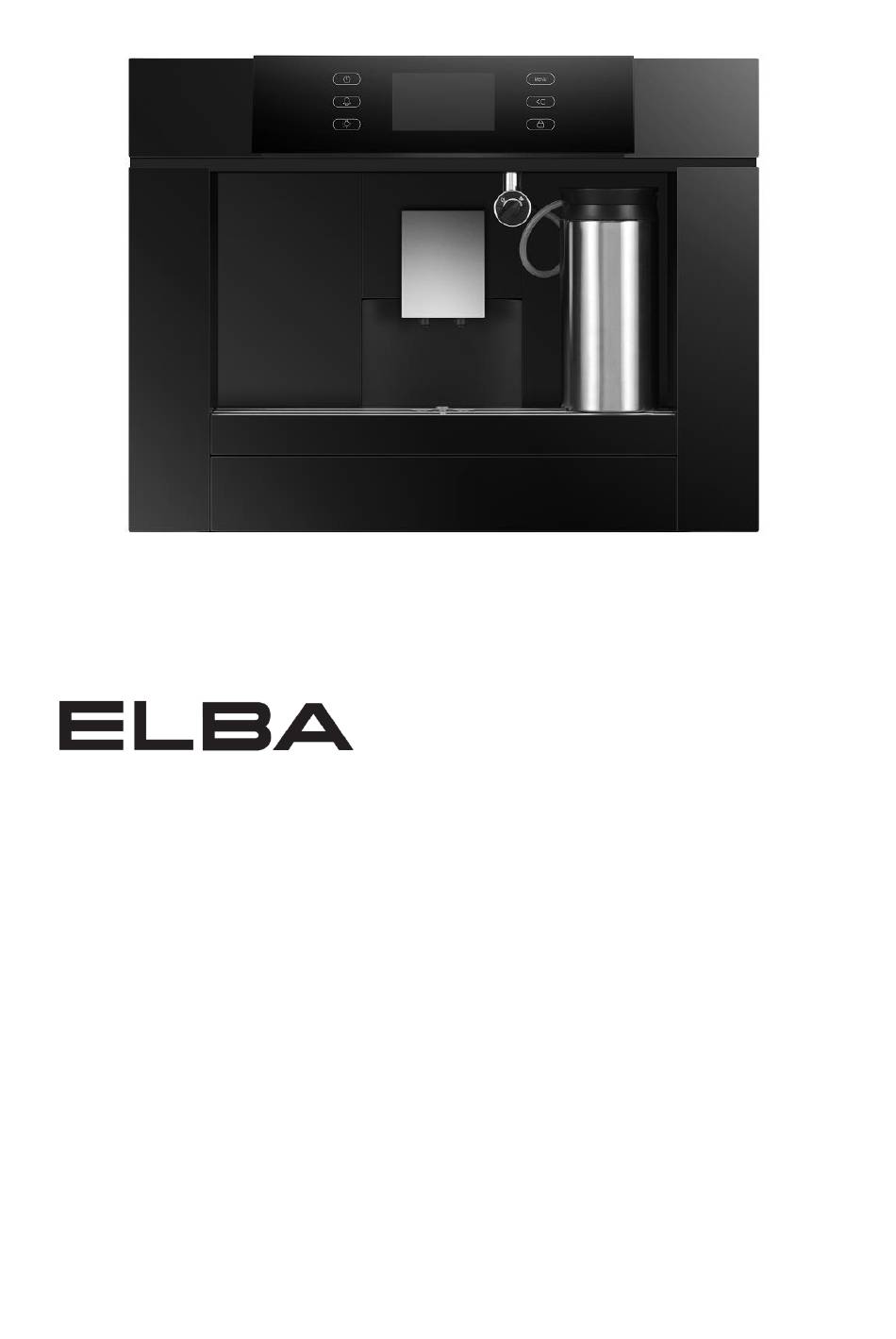

BUILT-IN COFFEE MACHINE
MODEL: ECM-H1835TFT(BK)
Owner's Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer when
you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECM-H1835TFT(BK) and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elba ECM-H1835TFT(BK)

Summary of Contents for Elba ECM-H1835TFT(BK)

  • Page 1 BUILT-IN COFFEE MACHINE MODEL: ECM-H1835TFT(BK) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.

  • Page 2: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS …………………………………………………………………………………………..ATTENTION…………………………………………………………………………………………………………… INSTALLATION………………………………………………………………………………………………………..BEFORE THE INSTALLATION……………………………………………………………………………………………………4 INSTALLATION OF BUILT-IN COFFEE MACHINE……………………………………………………………………5-6 CONNECTION OF THE APPLIANCE …………………………………………………………………………………………7 FITTING ON A POWER SUPPLY CABLE……………………………………………………………………………………7 CONNECTING THE SUPPLY CABLE TO THE MAINS…………………………………………………………………7 USING THE APPLIANCE FOR THE FIRST TIME…… …………………………………………………….7-8 PRODUCT DESCRIPTIONS ……………………………………………………………………………………………………….9 MAIN DESRIPTION……………………………………………………………………………………………….………………..9...

  • Page 3: Safety Precautions

    We recommend that you read the instructions in this owner’s manual carefully before using it for the best performance and to extend the lifespan of your appliance, as it will provide you with all the instructions you require to ensure its safe installation, use and maintenance. SAFETY PRECAUTIONS ...

  • Page 4: Attention

    In order to avoid electric shock, please make sure the appliance has been shut off before carrying out the maintenance.  Use only original accessories provided by ELBA or its authorized service center.  Do not use wet parts of body to touch the appliance.

  • Page 5: Installation Of Built-In Coffee Machine

    Installation of Built-in Coffee Machine The material of the cabinet should be insulated, and the clearance between the edge of the cabinet and the coffee machine should be over 100mm for ventilation. The panels of the adjacent cabinets must be made of heat-resistant material which can withstand temperatures of up to 65℃.
  • Page 6 4. Install the Built-in Coffee Machine body onto the rail of the telescopic. 5. Tighten the screws on the both sides of the body. 6. Check if the installation is fitted correctly and smoothly by pulling and pushing the coffee machine on the rail.

  • Page 7: Connection Of The Appliance

    CONNECTION OF THE APPLIANCE Fitting on a Power Supply Cable  The appliance has to be equipped with a three-core power supply cable which is designed to operate with an alternating current. The AC power supply should be supplied with 220-240V, 50/60Hz and a minimum 10A distribution circuit fuse or at least 10A distribution circuit breaker.
  • Page 8  After a while, the coffee machine will proceed to “Rinsing”.  When the coffee machine has rinse completed, it will display “Ready”. You can now start to use the coffee machine by selecting the function.

  • Page 9: Product Descriptions

    PRODUCT DESCRIPTION Main Description Display screen Load tray Milk cream unit Drip tray Cream nozzle Metal drip tray Coffee nozzle Tank Main switch Coffee bean container Adjustable mill knob Coffee bean cover Coffee grounds container Pre-ground coffee funnel On / Off Menu Alarm Back...

  • Page 10: Programs And Functions

    PROGRAMS AND FUNCTIONS Making Coffee Using Coffee Bean  When the appliance display “Ready”, you can press the “Menu” button, the appliance will display the programs as below photo shown.  Press “1 cup” to select the program. The display will show ...

  • Page 11: Adjusting The Coffee Mill

     Note 1: If the coffee is delivered a drop at a time or not dispensing at all, turn the grinding adjustment knob one click clockwise. See “Adjusting the coffee mill”. Proceed one click at a time until coffee delivery is satisfactory. ...

  • Page 12: Making Espresso Coffee With Pre-Ground Coffee (Instead Of Coffee Bean)

    Making Espresso Coffee with Pre-ground Coffee (Instead of Beans)  Turn on the coffee machine. After the display showing “Ready”, select the function “Coffee Powder”. The display will show the screen below.  Gently extract and pull out the coffee machine. Open the coffee powder cover and use a spoon to fill coffee powder.

  • Page 13: Making Cappuccino

     Once you have set the new settings, the display will show  Never add pre-ground coffee when the machine is off or before pressing the button to avoid the coffee spreading through the inside of the appliance.  Do not add more than level 1 measure, otherwise the appliance will not make the coffee and the pre-ground coffee will be dispersed inside the appliance, contaminating the appliance or the coffee will be delivered a drop at a time.
  • Page 14  The display will show below steps to select:  You need to select either to grind or using powder. Press “OK” to proceed.  After selecting the function, the coffee machine will start to make Cappuccino. If you have selected “Powder”, the display will show: ...

  • Page 15: Making Latte

     Upon completed, gently push back the coffee machine and press “OK” button.  Once ready, select the duration and output or press “Ok” to start making Cappuccino. Making Latte  Turn on the coffee machine. Pre add the milk in the cup before making the latte. When the coffee machine is in “Ready”...

  • Page 16: Making Hot Milk Or Hot Cream Using Steam Function

     Gently extract and pull out the coffee machine. Open the coffee powder cover and use a spoon to fill coffee powder.  Upon completed, gently push back the coffee machine and press “OK” button on the control panel.  Once ready, select the duration and output or press “OK”...
  • Page 17  From the main menu, select the function “Steam” and the coffee machine will start heating up.  When the heating process is completed, the screen will show “Steam ready. Open tap”.  Press “OK” button and the coffee machine will spray steam automatically. You can then adjust the steaming output duration by moving the key horizontally or press +1 / -1 button on the screen.

  • Page 18: Cleaning And Maintenance

    CLEANING AND MAINTENANCE  Before performing any cleaning operation, leave the machine to cool down completely and unplug from the electrical mains. Never immerse the coffee machine into water. Do not use solvents or abrasive detergents to clean the coffee machine. Never wash any of the components of the coffee machine in the dishwasher.

  • Page 19: Cleaning The Spouts

    Cleaning the Spouts  Clean the spouts periodically using a sponge or cloth. Check regularly that the holes in the coffee spout are not blocked. If necessary, use a pin to poke the hole and clean it. Cleaning the Pre-ground Coffee Funnel ...
  • Page 20  Extract the drip tray with purified water and let drip tray back to its original position. Then the coffee machine will display:  That mean you have to gently extract and pull out the coffee machine and add in tablet in Coffee Powder cap.

  • Page 21: Setting The Time

     Press “Clean Brew” function and the screen will show:  Press “OK” key and the process is same as the preceding steps. SETTING THE TIME  To set the time, in “Ready” state press the “Setting” button.  Select setting menu and press the “Time” setting from the display. ...

  • Page 22: 10. Technical Specification

    10. TECHNICAL SPECIFICATION Model ECM-H1835TFT(BK) Voltage 220 – 240V Frequency 50/60Hz Rated Power 1,300 – 1,500W Product Dimension (mm) 594 (W) x 449 (H) x 450 (D) Built-in Dimension (mm) 565 (W) x 454 (H) x min 600 (D) Notice: Physical measurement may be different from label because of the products is in continuous improvement.

  • Page 23: 12. Troubleshooting

    12. TROUBLESHOOTING PROBLEM POSSIBLE CAUSE REMEDY Warm the cups by rinsing them with The cups were not preheated. hot water. The coffee is not hot The infuser has cooled down because Before making coffee, heat the 2/3 minutes have elapsed since the last infuser through the program.
