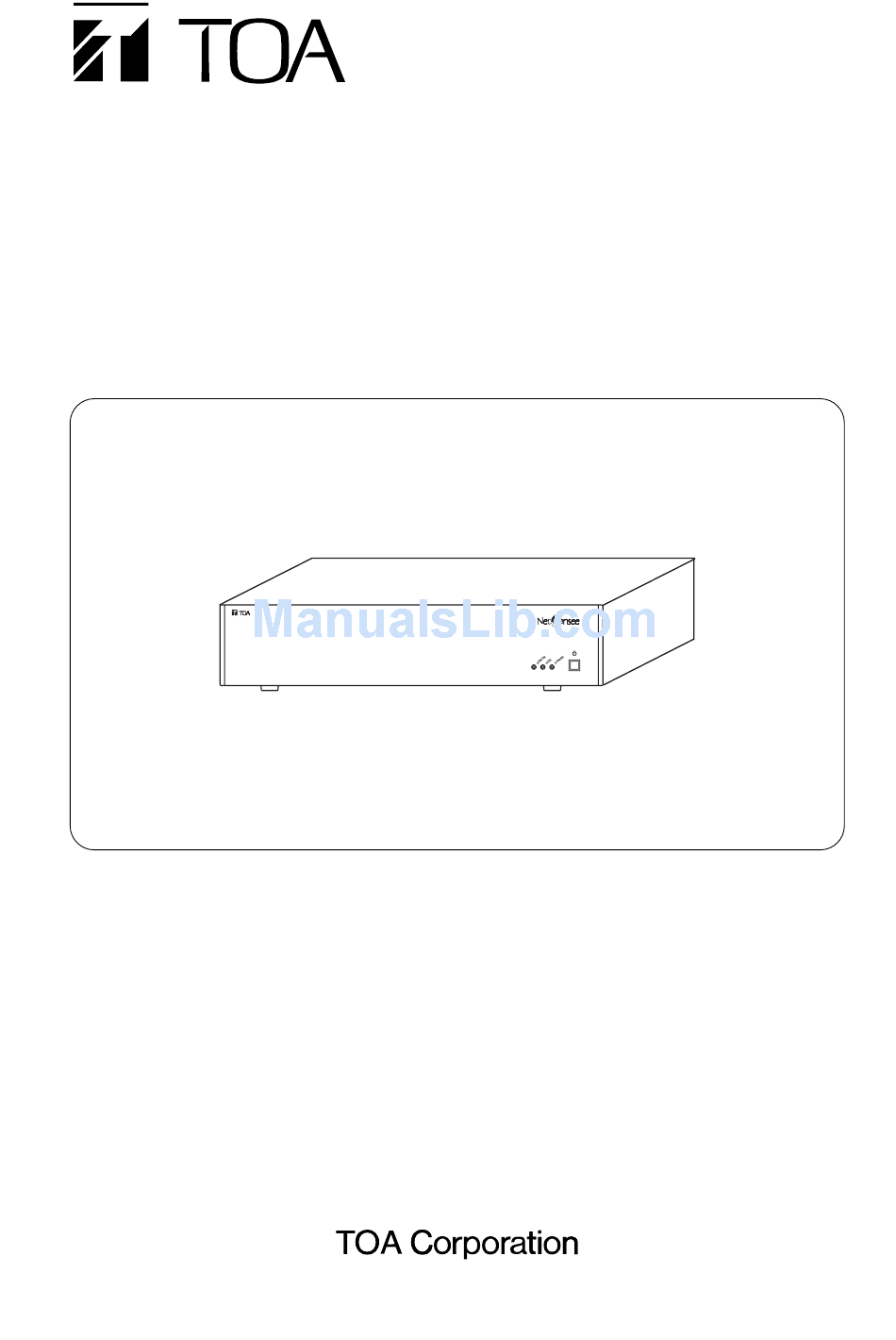

INSTRUCTION MANUAL
NETWORK VIDEO RECORDER
N-DR2000
TM
NETWORK
VIDEO
RECORDER N-DR2000
Thank you for purchasing TOA's Network Video Recorder. Please carefully follow the instructions in this
manual to ensure long, trouble-free use of your equipment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N-DR2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toa N-DR2000

Summary of Contents for Toa N-DR2000

  • Page 1 INSTRUCTION MANUAL NETWORK VIDEO RECORDER N-DR2000 NETWORK VIDEO RECORDER N-DR2000 Thank you for purchasing TOA's Network Video Recorder. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

  • Page 2: Table Of Contents

    10.2.5. 1000BASE-T ... 11 10.3. Search and Playback Using the N-SD2000 Software Decoder ... 11 10.4. Making Settings Using a Web Browser ... 12 10.5. General Overview of N-DR2000 Settings ... 12 10.5.1. Recording settings ... 12 10.5.2. Playback settings ... 12 10.6.

  • Page 3: Safety Precautions

    1. SAFETY PRECAUTIONS • Before installation or use, be sure to carefully read all the instructions in this section for correct and safe operation. • Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included.
  • Page 4 CAUTION When Installing the Unit • Never plug in nor remove the power supply plug with wet hands, as doing so may cause electric shock. • When unplugging the power supply cord, be sure to grasp the power supply plug; never pull on the cord itself.

  • Page 5: List Of Included Components And Parts

    3. GENERAL DESCRIPTION The N-DR2000 Network Video Recorder allows images and audio digital signals originating from network cameras and network video transmitters connected to a LAN to be recorded to a hard disk drive. Because the digital signals produced by such equipment are stored as is, they can be played back with high clarity and quality.

  • Page 6: Handling Precautions

    6. HANDLING PRECAUTIONS • The supplied power supply cord is designed for exclusive use with the Recorder. Never use it with other equipment. • It is recommended that the Recorder be always used in locations where the ambient temperature ranges from 0°C to +40°C and humidity levels of less than 80% to ensure that no condensation is formed.

  • Page 7: Nomenclature And Functions

    Flashing : Press the power switch on the front panel to start the device. NETWORK VIDEO RECORDER N-DR2000 (3) HDD access Indicator (Yellow) LED flashes when the hard disk drive is being accessed. Note When the system is started up, it performs a check on the hard disk drive which may take several minutes.

  • Page 8: Connections

    Color Camera N-CC2360 Network Combination Dome Camera N-CC2564 To 24V AC Network Video Recorder N-DR2000 NETWORK V I RECORDER DR2000 9. NETWORK VIDEO RECORDER ACTIVATION AND TERMINATION 9.1. Recorder's Activation 1. Connect each component correctly. 2. Press the power switch.

  • Page 9: Functions

    The network camera/video transmitter are all equipped with contact input and motion detection-based alarm functions. When set to Alarm recording, the images from these can be recorded on the N-DR2000 whenever an alarm occurs. The specific recording conditions for Alarm recording are set on the network camera/video transmitter respectively.

  • Page 10: Recording Conditions

    10.2.1. Recording conditions This device is equipped with a variety of recording functions. These can be set individually to use specific recording conditions. For example, Normal recording can be set to record at 1 frame per second (fps), while Scheduled recording records at 5 frames per second. For each recording function, the following settings are available.

  • Page 11: Using Multiple N-Dr2000S

    10.2.5. 1000BASE-T Depending on recording conditions, transmission using the lower 100BASE-TX standard may cause frame loss or audio skipping. If this happens, it may be necessary to connect the N-DR2000 to the port of a hub supporting 1000BASE-T switching. 10.3. Search and Playback Using the N-SD2000 Software Decoder Video and audio recorded on the N-DR2000 can be searched and played back using the N-SD2000 Software Decoder.

  • Page 12: Making Settings Using A Web Browser

    To use Alarm recording, the network camera/video transmitter must be set to do so. These settings can be made for each unit in the same way as the N-DR2000, via a Web browser. Refer to the Setting Manual (Chapter3) for more information.

  • Page 13: Operation Guide Listed By Objective

    Recording content being played back by the N-SD2000 can be converted into ".asf" files containing up to ten minutes of image. Such files created using the N-DR2000 can be play- ed using Windows Media Player or equivalent software. Refer to the N-SD2000 instruction manual for more details on creating files for storage.

  • Page 14: Recording Time List

    12. RECORDING TIME LIST Chart shows approximate recording times for each camera assuming 16 cameras or video transmitters are in use. Audio recording: None Image size High: D1 High: D1 High: D1 Medium: Half-D1 Medium: Half-D1 Medium: Half-D1 Low: QVGA Low: QVGA Low: QVGA Audio recording: 32 K Compression: OFF...
  • Page 15 • Depending on recording conditions, actual available recording times may be shorter than those listed in this chart. • Using the N-DR2000, it is possible to conduct a variety of recording condition settings for the recorded content of each individual camera. These conditions may change the available recording time.

  • Page 16: Rack Mounting

    Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g., use of power strips). N-DR2000 M4 x 12 binding head screw (supplied with the MB-23B)

  • Page 17: Troubleshooting

    Cannot search. Check the “N-SD2000 connection parameters: SIP password.” It is necessary for this password to match the N-DR2000 administrator password. Cannot record. Check to ensure that the network video transmitter and network camera are connected to the network correctly.
  • Page 18 • Is the case fan on the back of the N-DR2000 functioning properly? • Is the N-DR2000 positioned so that its rear surface is too close to a wall or other A case fan malfunction This warning is displayed if the rotation speed of the N-DR2000’s case fan drops warning is displayed.

  • Page 19: Specifications

    15. SPECIFICATIONS [N-DR2000 CU] Power Source 110 – 120 V AC, 50/60 Hz Power Consumption 57 W (0.8 A) Recording Storage HDD S-ATA 640 GB (320 GB x 2) Network Network I/F 100BASE-TX/1000BASE-T, Auto-Nego: RJ45 connector Network Protocol TCP, UDP, SIP, RTP, HTTP, SMTP, ARP, DNS, NTP...

  • Page 20: System Requirements (For N-Sd2000 Software Decoder)

    Power Source 220 – 240 V AC, 50/60 Hz Power Consumption 57 W (0.8 A) Recording Storage HDD S-ATA 640 GB (320 GB x 2) Network Network I/F 100BASE-TX/1000BASE-T, Auto-Nego: RJ45 connector Network Protocol TCP, UDP, SIP, RTP, HTTP, SMTP, ARP, DNS, NTP Frame Rate Settable 1, 2, 3, 5 fps (Per Network Camera and Network Video Transmitter) Recording Method...
