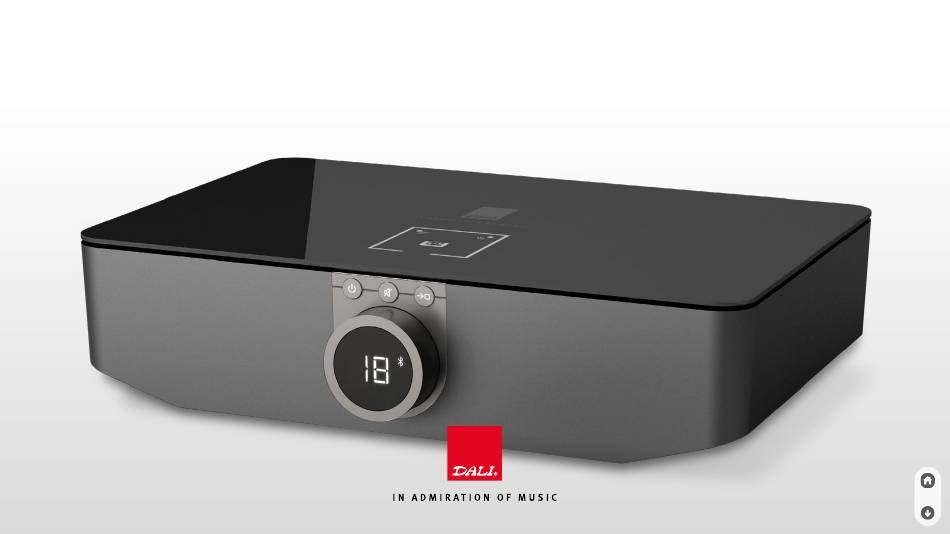

- Page 1 DALI SOUND HUB MANUAL...
-
Page 2: Table Of Contents
12.1 Bluetooth Connection Release ... . .16 2.0 DALI Sound Hub Buttons Overview ..4 12.2 Bluetooth Name......17 3.0 DALI Sound Hub Connections Overview . -
Page 3: Unpacking
1.0 UNPACKING Be careful not to damage the contents when unpacking the parts. Check that all parts are included in the cardboard box. Keep the packaging materials in case your product needs to be relocated or serviced. -
Page 4: Dali Sound Hub Buttons Overview
2.0 DALI SOUND HUB BUTTONS OVERVIEW On/Off Mute Source Select Volume Control Coxial In Optical In (TV) Optical In AUX In RCA In Bluetooth... -
Page 5: Dali Sound Hub Connections Overview
3.0 DALI SOUND HUB CONNECTIONS OVERVIEW RCA In AUX In Coaxial In Optical In Optical In (TV) LINK PLUG-IN MODULE CONNECT PLUG-IN MODULE PRE OUT SUB OUT RCA IN AUX IN COAXIAL OPTICAL IN OPTICAL IN POWER USB POWER/ 2.8A... -
Page 6: Getting Started
1. Insert the two AAA batteries into the Sound Hub remote control. 2. Assemble the Sound Hub power supply with the matching plug for your country and connect it to the Sound Hub and the wall outlet. 3. Turn on the Sound Hub by pressing the On/Off button on the front of the unit. -
Page 7: Speaker Pairing
LINK & CONNECT button on the back of the Sound Hub. When the Sound Hub is ready to pair with the speakers, the position display on top of the Sound Hub will light up, and the volume display will run in... -
Page 8: On The Speaker
Go to the first speaker and press the LINK & CONNECT button on the rear of the speaker. When the speaker has paired up with the Sound Hub it will play a short sound. The position display on the rear of the speaker, next to the LINK & CONNECT button, will blink indicating that you now can set the speaker position. -
Page 9: Finalizing The Pairing
5.2 FINALIZING THE PAIRING When all speakers are paired, and the wanted positions are selected, return to the Sound Hub and press the LINK & CONNECT button on the rear of the Sound Hub. All paired speakers will then play a short sound. -
Page 10: Connections
Source Select 6.0 CONNECTIONS The Sound Hub has several connectors all placed on the rear panel of the Source Select Sound Hub for wired connections (See 3.0 DALI Sound Hub Connections overview). Select input by pressing Source Select on the Sound Hub or the Sound Hub remote control until the wanted input is shown in the display. -
Page 11: Plug-In Modules
2. Remove the two screws – one on each side of the Plug-In module cover. 3. Remove the cover and carefully insert the Plug-In module until it is flush with the rear of the Sound Hub. 4. Lock the Plug-In module in place by reinserting the two screws, being careful not to over tighten. -
Page 12: Volume Control
• Turning the volume control on the front of the Sound Hub. • Pressing the Volume Up or Volume Down button on the Sound Hub remote control. • Using the touch sensitive area on the top front of paired compatible speakers. The system volume is adjusted centrally regardless of which speaker the volume is adjusted from. -
Page 13: Mute
To mute the audio on the paired speakers. Depending on the input selected, Mute will mute the speakers (RCA In, AUX • Press the Mute button on the front of the Sound Hub. In, Coaxial In, Optical In and Optical In (TV)) or mutes the speakers and pauses playback (Bluetooth and Plug-In modules that support it). -
Page 14: Auto Sensing / Auto Power On
All inputs on the Sound Hub have auto sensing and will automatically activate the Sound Hub and paired speakers when a signal is detected. This will turn on the system and activate the correct input, if the system is in standby, or just activate 1. -
Page 15: Display And Led Dimming
11.0 DISPLAY AND LED DIMMING Press and hold The intensity of the Sound Hub volume display and the volume LED display on paired speakers can be adjusted: 1. Turn on the Sound Hub. 2. Press and hold the On/Off button. -
Page 16: Bluetooth Functions
To release an existing connection between a playback device and the Sound Hub: 1. Press and hold the Mute button till the volume display shows “b_”. 2. Release the Mute button. Any existing Bluetooth connection is now released, and the Sound Hub is ready for a new Bluetooth pairing. -
Page 17: Bluetooth Name
The default Bluetooth name is DALI SOUND HUB. It can be changed to DALI SOUND HUB 1 up to DALI SOUND HUB 9. To change the Bluetooth name of the Sound Hub, if more Sound Hubs are within Bluetooth range: 1. -
Page 18: Bluetooth Remote Reconnect
To connect a replacement remote control to the Sound Hub: 1. Ensure that the batteries are not inserted into the remote control. 2. Perform a complete factory reset on the Sound Hub (See 14.2). ÷ 3. Insert the batteries into the remote control. -
Page 19: Individual Speaker Volume Adjust
To adjust the individual volume: 6. Use the volume control to increase or decrease the volume of the selected speaker. 7. The individual volume is shown on the Sound Hub volume display as -9 to +9 dB. 1. Turn on the Sound Hub. -
Page 20: Factory Reset
To return all settings to the factory default without losing the paring with the speakers and remote control: There are two stages of factory reset: 1. Turn off the Sound Hub. 2. Press and hold both the Mute and the Source Select buttons. -
Page 21: Complete Factory Reset
Press Volume display shows a figure 8 5. Release the buttons when the volume display shows a figure 8. 6. Then display show 88 then turn off Sound Hub. 7. Wait for about 10 sec. 8. Turn on Sound Hub. -
Page 22: Firmware Update
4. Remove mains power from Sound Hub. 5. Insert the USB drive into the USB Power Out/Service port on the rear of the Sound Hub. 6. Reconnect the mains power to the Sound Hub and wait for the small LED next to the USB Power Out/Service port to blink green. -
Page 23: Cleaning
16.0 CLEANING Clean the Sound Hub with a soft, dry cloth. If the product is dirty, wipe with a soft cloth using all-purpose cleaner. Spray the cloth and not the unit. -
Page 24: Disposal
17.0 DISPOSAL If you want to dispose of this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. Private households in the EU member states, Switzerland, Liechtenstein and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new...
