Delta Classic Series Manual

501LF-WF
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________

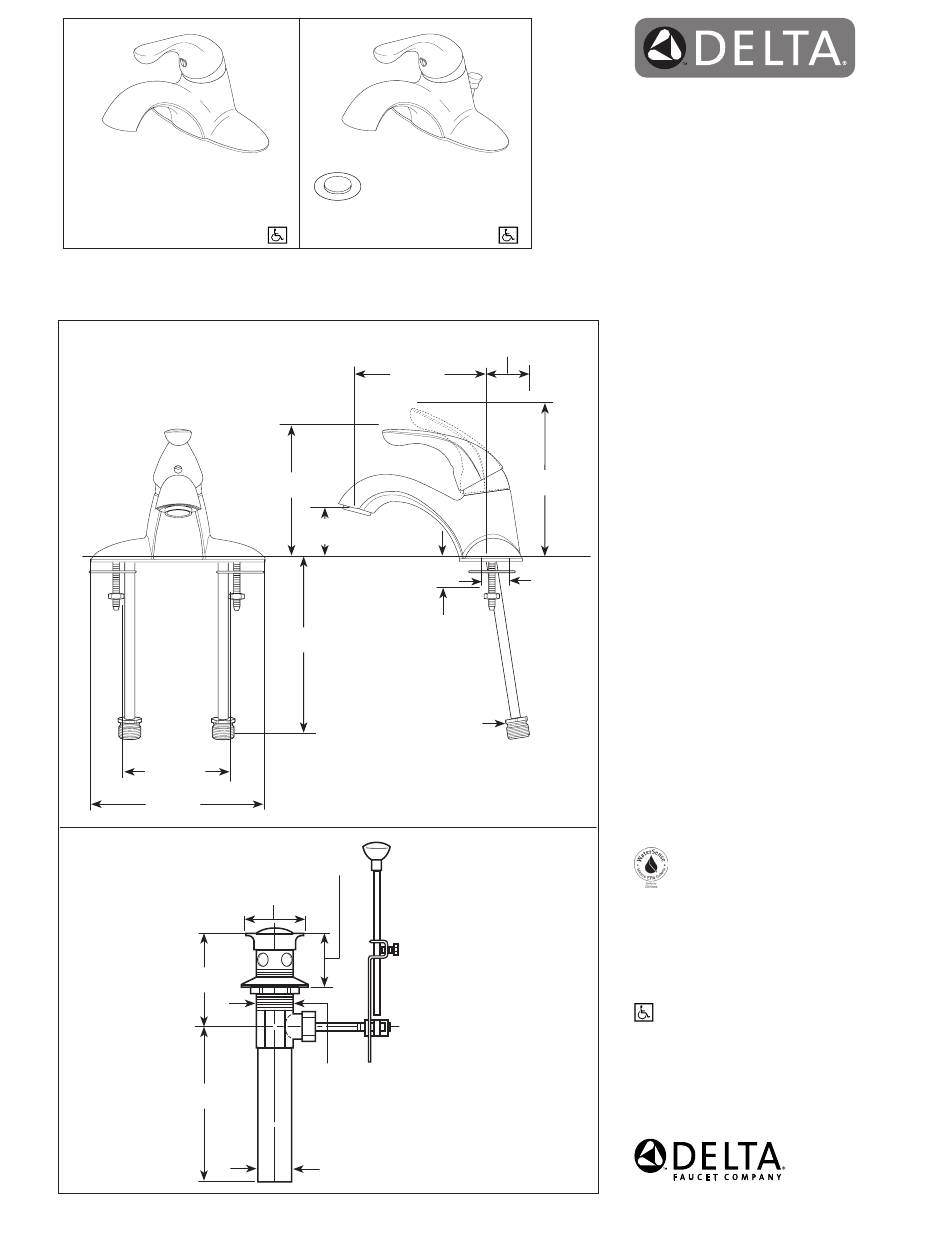

4" Centers
(102 mm)
6 1/2"
(165 mm)
Metal Pop-Up
3 3/8"
(86 mm)
4 5/8"
(117 mm)
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-L-501LF-WF Rev. D
520LF-WFMPU
5"
(127 mm)
4 7/8"
(124 mm)
1 11/16"
(43 mm)
2" (51 mm)
Max. Deck
6 9/16"
Thickness
(167 mm)
1/2"-14 NPSM
1 5/8" (41 mm) to
2 3/8" (60 mm)
2 1/8"
(54 mm) Dia.
1 3/8"
(35 mm) Dia.
1 1/4"
(32 mm) Dia.
Min. 2 1/2" (64 mm) Clearance
to Back Splash
6 9/16"
(167 mm)
Min.
1 1/2"
(38 mm)
Dia. Hole
Size
LAVATORY
FAUCETS
■ Classic Series
■ Single Handle Deck Mount
■ 2 and 3 Hole Sink Appplications
■ 4" (102 mm) Centerset
STANDARD SPECIFICATIONS:
•

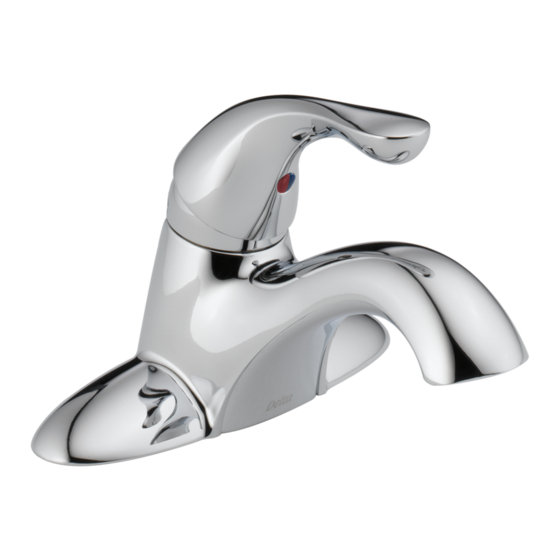

Single handle lavatory deck faucet.
•
4" (102 mm) centerset.
•
Solid brass fabricated body.
•
5" (127 mm) long spout.
•
Control mechanism is the diamond embedded
ceramic disc cartridge.
•
Control handle shall return to neutral position
when valve is turned off.
•
3/8" O.D. copper supply tubes with 1/2"-14
NPSM adapters.
•
Models have 1/4" threaded mounting studs.
•
Max. 1.50 gpm @ 60 psi, 5.7 L/min @ 414 kPa
•
Models with suffix "MPU" have metal drain with
pop-up type fitting with plated flange and stopper.
•
Lever handles have red/blue button.
WARRANTY
• Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
• 5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
• ASME A1 12.18.1 / CSA B125.1
• ASME A112.18.2 / CSA B125.2
Indicates compliance to
ICC/ANSI A117.
•
EPA WaterSense ®
•
Verified compliant with .25% weighted average
Pb content regulations.
