Summary of Contents for Vido WD010810320

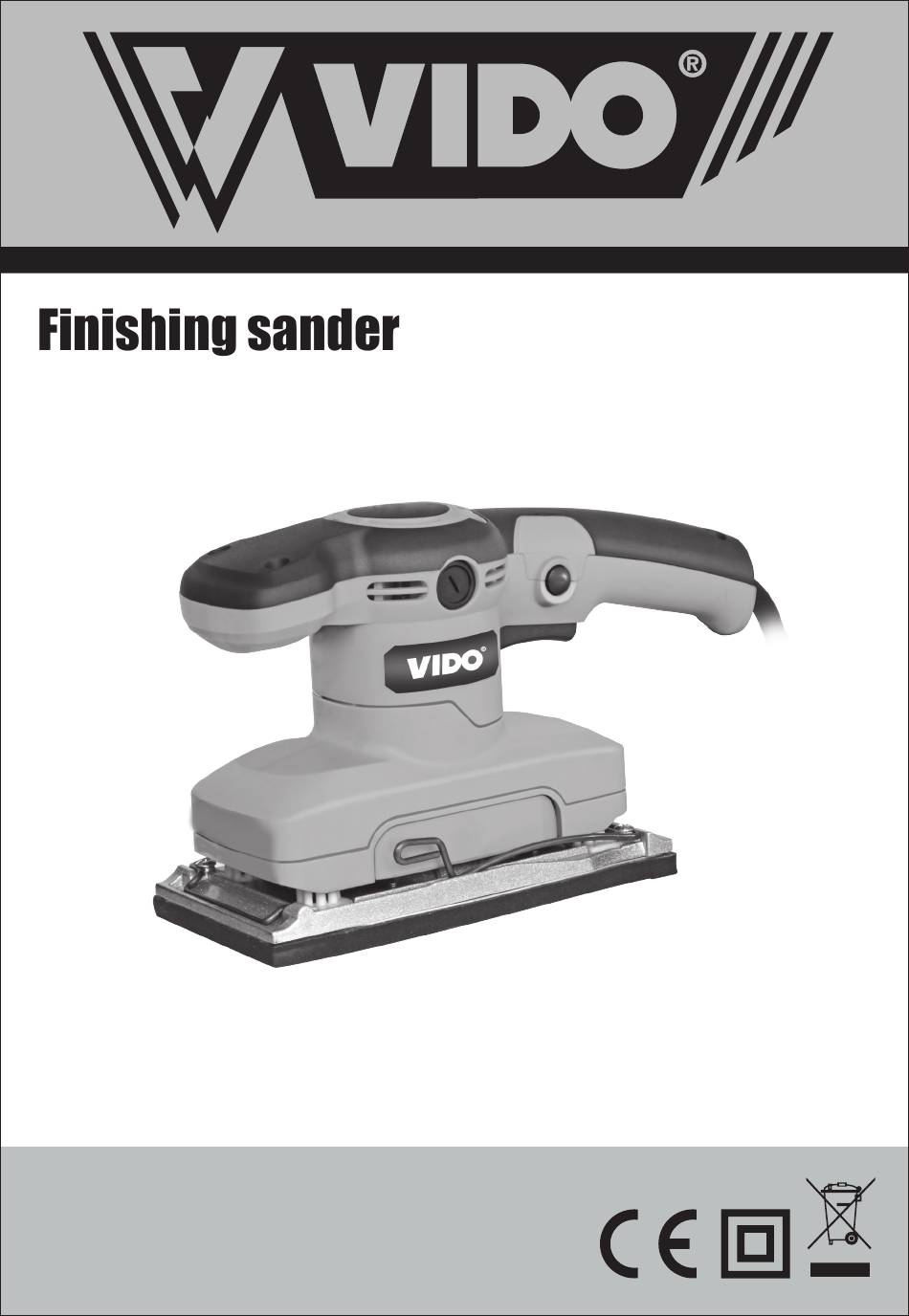

- Page 1 WD010810320 320W...
- Page 2 WD010810320 Thank you for purchasing a VIDO product. We are confident that you will appreciate the quality of the product and you will be entirely satisfied with your purchase. Please read carefully the user safety and operating instruction on how to operate this product correctly within safety...
- Page 3 WD010810320 5.5mm...
-
Page 4: Component List
320W FINISHING SANDER COMPONENT LIST 1) Sanding base 2) Sanding sheet clamp 3) Auxiliary handle 4) Cap of brush holder 5) Handle 6) Lock-on button for on/off switch 7) On/off switch NORMAL ACCESSORIES 1) Spare carbon brush: 1set We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. -
Page 5: General Power Tool Safety Warnings
320W FINISHING SANDER GENERAL POWER TOOL SAFETY WARNINGS Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 6 320W FINISHING SANDER f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
-
Page 7: Double Insulation
320W FINISHING SANDER Warning: Some dust created by power sanding contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints, • Crystalline silica from bricks and cement and other masonry products, •... -
Page 8: Technical Data
320W FINISHING SANDER TECHNICAL DATA Model WD010810320 Voltage 110-120V AC 220-240V AC Frequency 50-60Hz 50-60Hz Power input 320W 320W No load speed 14000/min 14000/min Sanding base 3-5/8″ 7-1/4″ 90X180mm Protection class Machine weight 1.8kg 1.8kg Note: For power tool specifications refer to the nameplate on your power tool. - Page 9 320W FINISHING SANDER 3) Always ensure the sanding sheet is tight over the sanding base and secured underneath both locked clamps. This will ensure safe and efficient sanding performance. 4. Switching On and Off 1) To start the sander, simply depress the switch trigger. Release the switch trigger to stop your sander. 2) If you wish to use the sander continuously, depress switch trigger and then lock on button, release switch trigger first and lock on button second (See Fig 3).
-
Page 10: Maintenance
320W FINISHING SANDER MAINTENANCE Warning: Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. 1. Keep the power tool ventilation slots clean and free from obstructions. If available, blow compressed air into the vents to clear any internal dust (safety goggles must be worn when undertaking this process). -
Page 11: Explosive View
320W FINISHING SANDER EXPLOSIVE VIEW... -
Page 12: Part List
320W FINISHING SANDER PART LIST DESCRIPTION Q’TY DESCRIPTION Q’TY Foam base Support of bearing Screw Rear cover Aluminum plate Switch O ring Housing Sanding base Brush holder Screw Carbon brush Sanding sheet clamp Cap of brush holder Screw Stator Pressure plate of base support Screw Base support Bearing... - Page 13 WD010810320...
- Page 14 WD010810320...
- Page 15 WD010810320...
- Page 16 MADE IN CHINA Copyright @ WIDO Machinery Co., Ltd. All rights reserved. www.widopt.com...
